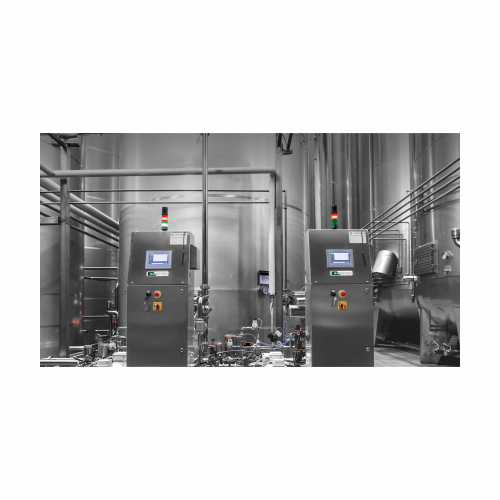

Piping discharge system for product separation in transfer lines

Optimize your beverage production by preventing product cross-contamination and maximizing yield efficiency during long-distance transfers with this advanced piping discharge system.

Ensures Product Separation and Efficient Transfer

The P.D.S. (Piping Discharge System) by Innotec is expertly designed for seamless transfer and separation in beverage production, from wine-making to soft drinks. Featuring a central PLC-controlled mechanism, it uses a technopolymer sphere to ensure non-contaminating transit of liquids over long distances, compatible with various cleaning agents. Ideal for environments requiring frequent separation, it is constructed with AISI 316 stainless steel for corrosion resistance and features automated ball valve flanges for section management. This system supports multiple intermediate stations and allows in-line temperature regulation for products in transit, reducing the risk of foam during filling and enabling complete product recovery. Integrates effortlessly with existing CIP, microfiltration, and dosage systems, enhancing operational efficiency and sanitation.

Benefits

  • Minimizes product loss with effective separation, enhancing yield.
  • Reduces contamination risk, maintaining product integrity during transfers.
  • Optimizes cleaning efficiency, integrating seamlessly with CIP systems.
  • Ensures precise temperature control, preventing unwanted foam formation.
  • Enhances operational flexibility with configurable stations and real-time monitoring.

General


Applications
Beverages,Wine-making,Mineral waters,Spirits,Juices,Soft drinks,Beer
End products
Bottled mineral water,Red wine,Pale ale,Grape juice,Carbonated mineral water,Fruit juice,White wine,Craft beer,Flavored spirits,Orange juice,Rum,Cola,Vodka,Sparkling wine,Lager beer,Whiskey,Lemon-lime soda,Energy drinks,Iced tea,Gin
Steps before
Separation,Preparation
Steps after
Filling,Packing,Storage
Input ingredients
wine,water,gas
Output ingredients
separated products,non-mixed products
Market info
INNOTEC (Omnia Technologies) is known for manufacturing industrial engineered-to-order (ETO) equipment, specializing in delivering customized engineering solutions with a reputation for innovative design, precision, and reliability in meeting complex industrial requirements.

Technical Specifications


Material
AISI 316 steel
Internal Finish
Polished
Automation
PLC-controlled
Tubing Size
3”
Valve Type
Automatic ball valves
Diaframma Compatibility
All cleaning and sanitizing solutions
Thermostating Capability
Yes (hot and cold)
Product Recovery
Total
Pressure Management
Optimized to prevent foam formation
Sphere Material
Technopolymer

Operating Characteristics


Working mechanism
Diaphragm separation
Integrated steps
Product separation and transfer
CIP principles
Compatible with all cleaning solutions
Batch vs continuous operation
Batch / Inline
Automation level
PLC-controlled
Thermal management
In-line acclimation
Product recovery
Total recovery
Pressure management
Improved pressure management to prevent foam
Real-time feedback
Sphere movement feedback
Compatibility with other systems
Integrable with C.I.P.,microfiltration,and dosing systems

Material Compatibility


Cleanability
Compatible with cleaning agents
Corrosive resistance (e.g. acids)
Steel AISI 316
Biological compatibility
Yes
Density/particle size
N/A

Physical Characteristics


Material
AISI 316 stainless steel
Internal Finish
Polished
Size of Tubing
3” diameter
Discharge method
Automatic via PLC-controlled flow
System Layout
Includes intermediate stations
Diaphragm Material
Technopolymer sphere
Thermal Control
Internal thermostat for heating/cooling

Custom Options


Control panel type
PLC-controlled
Integration capabilities
C.I.P.,microfiltration,dosing systems
Material
AISI 316 stainless steel
Elastomer material
Technopolymer sphere
Piping connections
Flanged joints
Temperature control
Heating/cooling capability in-line
