Pilot to full-scale roller compactor for dry granulation

Easily transition from pilot to full-scale production with this roller compactor, ensuring consistent powder density and enhanced flow characteristics for optimal downstream performance.

Compacts and Densifies Powders for Versatile Applications

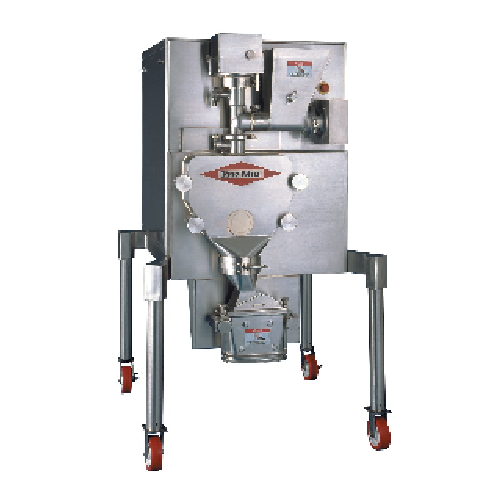

The IR 520 and IR4Lx10D Roller Compactors from Fitzpatrick are designed for precise dry granulation applications across pharmaceutical, nutraceutical, food, and chemical industries. These robust, scalable solutions excel in compacting powders to enhance density and flow properties, vital for tablet and capsule manufacturing. The IR 520 is ideal for proof-of-concept and smaller production volumes, offering a scalable output of 150 kg/hr, with easy-to-clean components ensuring minimal downtime. Meanwhile, the IR4Lx10D targets full-scale production, achieving throughput between 250-400 kg/hr, while its modular design supports rapid disassembly for thorough cleaning. Both models integrate seamlessly into existing production lines with flexible configurations and variability in roll force and gap settings for tailored compaction. Compliance with international safety standards, including cGMP and ATEX, underscores their suitability for high-stakes applications, while interchangeable stainless steel options ensure optimal corrosion resistance.

Benefits

  • Enhances powder flow and density for consistent tablet and capsule quality.
  • Scalable operations from pilot to full-scale without changing equipment.
  • Rapid disassembly and cleaning minimize production downtime.
  • Adheres to international safety and compliance standards like cGMP.
  • Flexible roll force and gap settings optimize compaction for diverse materials.

General


Applications
Food,Fine chemicals,Pharmaceutical formulation,Chemical products,Nutraceutical formulation,Food processing,Pharma,Chemical,Nutraceutical,Powder processing
End products
Laundry detergent,Protein powders,Granola bars,Instant soup mixes,Effervescent tablets,Infant formula,Agrochemicals,Food additives,Vitamin supplements,Herbal supplements,Flavoring agents,Tablets,Pharmaceutical excipients,Fertilizers,Capsules,Curry powder
Steps before
Powder Mixing,Blending,Material Weighing
Steps after
Particle Size Reduction,Powder Sieving,Bulk Packaging,Blending,Tablet Pressing
Input ingredients
powder,pharmaceutical formulations,nutraceutical formulations,food materials,fine chemicals
Output ingredients
compacted granules,enhanced flow materials,densified powder
Market info
The Fitzpatrick Company is known for its expertise in designing and manufacturing particle processing equipment, specializing in dry granulation, roll compaction, and size reduction technologies, earning a strong reputation for quality and innovation in the pharmaceutical and industrial sectors.

Technical Specifications


Roll Dimensions
5 X 20 cm
4 X 10 cm
Roll Force
26.3 kN/cm
17.5 kN/cm
Roll Gap
1-6 mm
Capacity
150 kg/hr
250-400 kg/hr
Automation
Manual / Auto configuration available
Cleaning Method
Complete disassembly of all contact parts
Compliance
ISO 9001
ATEX Approval
Yes,for potentially explosive atmospheres
CE Marking
Yes

Operating Characteristics


Roller Compaction Method
Dry Granulation
Scalability
Pilot to Full-Scale Production
Cleaning Process
Manual Disassembly for Cleaning
Roll Force
17.5 kN/cm to 26.3 kN/cm
Roll Dimensions
4 X 10 cm to 5 X 20 cm
Roll Gap
1-6 mm
Capacity Range
150 kg/hr to 400 kg/hr
Containment
Less Stringent Requirements
Configuration
Free-standing
Material Compatibility
Pharmaceutical,Nutraceutical,Food,Fine Chemicals

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Roll Dimensions
5 X 20 cm (IR 520),4 X 10 cm (IR4Lx10D)
Roll Force
26.3 kN/cm (IR 520),17.5 kN/cm (IR4Lx10D)
Roll Gap
1-6 mm
Capacity
150 kg/hr (IR 520),250-400 kg/hr (IR4Lx10D)

Custom Options


Roll dimensions
5 X 20 cm / 4 X 10 cm
Roll force
26.3 kN/cm / 17.5 kN/cm
Roll gap
1-6 mm
Capacity
150 kg/hr / 250-400 kg/hr
Disassembly
Complete disassembly of all contact parts
Cleaning capability
Rapid cleaning as parts are easily disassembled / re-assembled
