Melting and mixing kettle for chocolate production

Optimize your confectionery production with this versatile melting and mixing kettle, designed for precise temperature control and adaptable to high-speed operations. Perfect for creating smooth liquid formulations and delicate confectionery fillings.

Melts, Mixes, and Controls Temperatures for Confectionery Production

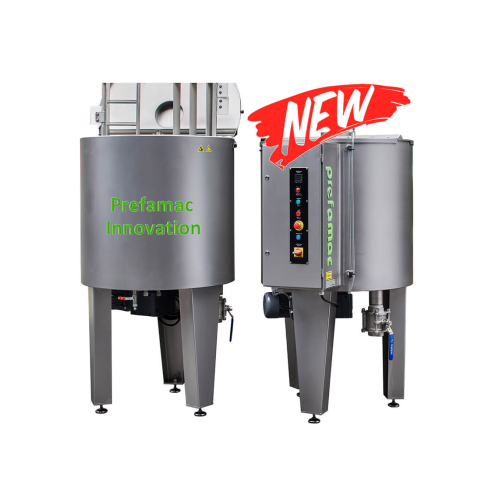

The ROLL’X Melting and Mixing Kettle from Prefamac Chocolate Machines is engineered for efficient chocolate and confectionery production, offering versatility in batch or continuous operations. It features a removable agitator system within a robust stainless steel construction, allowing for seamless integration into your production line. This equipment excels in melting and mixing a variety of ingredients, such as chocolate and nut formulations, maintained at precise temperatures through a double-walled water housing and glass wool insulation. By handling capacities of up to 1,500 liters and adapting to various voltages (380-420V 50Hz/220-240V 60Hz), the ROLL’X kettle is suitable for continuous high-speed operations in food processing and industrial bakeries. Enhanced by side scrapers and adjustable speed controls, it guarantees consistent product quality while minimizing energy consumption. Its design includes a motor mounted beneath the kettle and features a digital thermostat with a mechanical safety thermostat for temperature accuracy. Customization options such as a chocolate pump, double-jacket piping, and mobile castors further tailor the equipment to specific operational needs. Prefamac ensures easy maintenance and sanitation with visual checks and accessible outlet placements, making the ROLL’X kettle an essential asset for any confectionery production facility.

Benefits

  • Streamlines production with versatile batch and continuous operation capabilities.
  • Minimizes energy use with efficient heating and temperature control systems.
  • Enhances product consistency through precision mixing and adjustable-speed side scrapers.
  • Facilitates rapid cleaning and maintenance with easily removable agitator and inspection access.
  • Adapts to specific production needs with customizable features like chocolate pumps and dual-jacket piping.

General


Applications
Liquid formulations,Snacks,Confectionery,Nuts,Sweets,Chocolate
End products
Nut clusters,Energy bars,Fruit pastes,Nut butters,Confectionery fillings,Toffee,Confectionery coatings,Liquid chocolate preparations,Caramel,Chocolate ganache
Steps before
Ingredient preparation,Chocolate block breaking,Pre-melting
Steps after
Chocolate tempering,Molding,Cooling,Packaging
Input ingredients
chocolate,nuts,other ingredients
Output ingredients
melted chocolate,mixed chocolate and nuts,processed ingredients
Market info
Prefamac is known for manufacturing high-quality chocolate processing equipment, including tempering, enrobing, and cooling machines. The company is recognized for innovative and custom-engineered solutions tailored to the confectionery industry, emphasizing precision, efficiency, and reliability.

Technical Specifications


Capacity
170–5000 L
Capacity
800–1500 kg
Electricity
380-420V 50Hz / 220-240V 60Hz
Electricity
220-240V 50Hz / 110-120V 60Hz
Material
Pearled stainless steel
Insulation
Glass wool
Agitator
Removable / Multiple agitators available
Heating
Heating resistance
Thermostat
Digital / Mechanical safety thermostat
Outlet
Bottom and side
Motor Mounting
Underneath the kettle
Control Panel
Central operating panel,three-phase connection

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual

Material Compatibility


Cleanability
High cleanability due to stainless steel
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Compatible with chocolate and nut combinations

Physical Characteristics


Feed/Discharge method
Outlet at the bottom and side
Control panel type
Central operating panel
Agitator
Removable,multiple agitators option
Insulation
Double-walled water housing with glass wool

Custom Options


Agitator type
Removable / Multiple
Control panel type
Central operating panel
Mobility
Platform / Castors
Piping type
Double-walled fixed / flexible stainless steel
Chocolate pump
Optional
Water supply connection
Optional for faster cooling
Heating resistance
Available
Motor position
Mounted underneath the kettle
Digital thermostat
Available
Additional mechanical safety thermostat
Available
De-temper unit
Optional
Giraffe belt or step system
Optional for easy filling
Chocolate outlet tap
Optional
Inspection level
Visual checks
Chocolate and nuts compatibility
Yes,with separate agitator
Infrared control
Optional
Step system
Optional for filling
