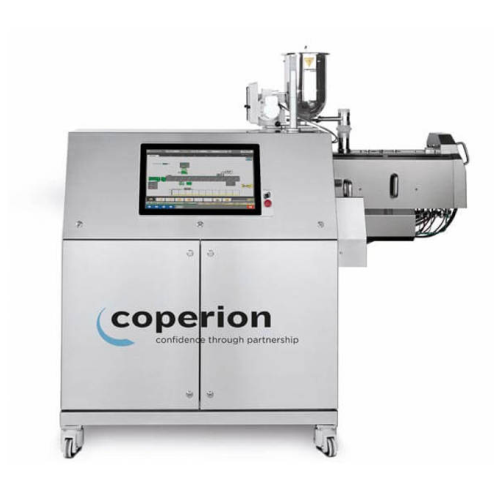

Laboratory twin screw extruder for small batch processing

Efficiently develop formulations and conduct precise research with this laboratory twin screw extruder, designed for reliable scale-up from small batches to larger production, enabling seamless transition from pilot plant to full-scale manufacturing.

Processes and Compounds Small Batch Materials

The ZSK 18 MEGAlab from Coperion is a laboratory twin screw extruder designed for R&D and pilot-scale operations, providing precise control and reliable scale-up for plastics, chemicals, food, pet food, and pharmaceuticals. This extruder excels in processing small batch sizes with a throughput of up to 40 kg/h, thanks to its modular structure featuring exchangeable 4D barrels and standard screw elements. It supports various applications, including polyethylene pellets, PVC granules, and catalyst carriers, by enabling effective extrusion, compounding, and mixing.

With a compact design, the ZSK 18 MEGAlab is equipped with a low-noise drive and simple PLC controller interface, allowing for easy operation and seamless integration into automated systems. The extruder’s energy efficiency is enhanced by reduced power consumption through an optimized motor design, while its hygienic construction meets the rigorous standards of food and pharmaceutical processing environments. A mobile base frame includes an integrated motor, extruder control system, water cooling, and vacuum unit, facilitating quick setup and maintenance. Customizable features and engineering support are available to tailor the extruder to specific processing requirements.

Benefits

  • Facilitates efficient scale-up from laboratory to full-scale production, reducing development time and risks.
  • Optimizes resource usage with high throughput for small batches, minimizing material waste.
  • Enhances operational efficiency and versatility with modular design for quick adaptations and product changes.
  • Lowers energy costs through optimized motor performance, supporting sustainable production practices.
  • Meets stringent hygiene standards in food and pharmaceutical applications, ensuring safe processing environments.

General


Applications
Chemicals,Food,Pet food,Plastics,Pharmaceuticals
End products
Polyethylene pellets,Nutritional supplements,Wet pet food,Polypropylene compounds,Catalyst carriers,Pvc granules,Tablet coatings,Dry pet kibble,Flavoring agents,Capsule fillers
Steps before
Ingredient Transfer,Material Handling,Feeding
Steps after
Packing,Tablet Coating,Scale-up
Input ingredients
small batch ingredients,powder form additives,pellet form additives,cut glass fibers,food ingredients,pharmaceutical substances
Output ingredients
compounded materials,formulation development samples,scientific research samples
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Throughput rates
up to 40 kg/h
Batch size
200 g
Drive concept
Reliable,low-noise
Modular structure
Exchangeable 4D barrels
Screw outer diameter Da
18 mm
Channel depth
3.2 mm
Barrel length
72 mm
Motor power
11.7 kW
Heating power / barrel
800 W
Max. output factor
1,200 rpm
Centerline distance
15 mm
Main dimensions (L x W x H)
1,660 x 600 x 1,850 mm

Operating Characteristics


Scale-up capability
Reliable scale-up to larger ZSK twin screw extruders
Batch processing capability
Processes smallest batch sizes
Plug,play installation
Fast installation and start-up
Noise level
Low-noise drive concept
Modular design
Modular structure with exchangeable barrels and screw elements
User interface
Simple operation by PLC controller and touch screen
Quick changeovers
Quick product changes using quick release connections
Mobility
Compact design with mobile base frame
Integrated systems
Integrated motor and extruder control system,water cooling,and vacuum unit

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Food and Pharma Grade
Cleanability
Hygienic Design
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Hygienic design
Food and Pharma Industry

Physical Characteristics


Machine footprint
1,660 x 600 x 1,850 mm
Screw outer diameter
18 mm
Channel depth
3.2 mm
Barrel length
72 mm
Compact design
Mobile base frame with integrated motor and control system
Discharge method
0
Control panel type
PLC controller with touch screen
Centerline distance
15 mm
Centerline height
1,100 mm

Custom Options


Control panel type
PLC controller with touch screen
Modular structure
Exchangeable 4D barrels and all standard screw elements
Mobile base frame
Integrated motor and extruder control system,water cooling and vacuum unit
