Laboratory mill for dry sample preparation

Achieve precise particle size reduction for pharmaceuticals and fine chemicals with high-speed grinding, ensuring consistent quality for your laboratory samples.

Reduces Particle Size for Laboratory Analysis

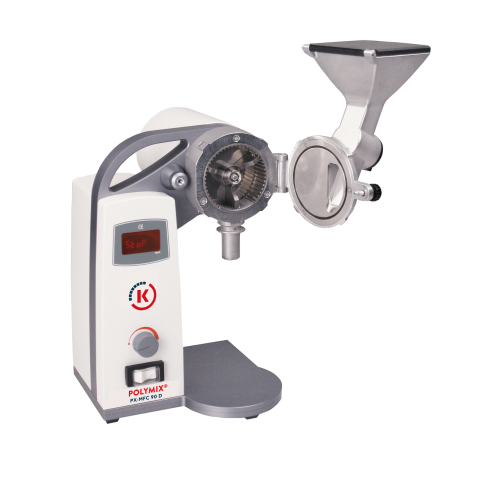

The POLYMIX PX-MFC 90 D from Kinematica AG is a versatile laboratory hammer mill designed for precise dry sample preparation across the pharmaceutical, chemical, and food industries. Featuring a robust construction with a gearless, maintenance-free motor, it combines hammer and cutting actions to efficiently process various materials, from brittle to fibrous, into fine powders. Ideal for producing tablet formulations and active pharmaceutical ingredients, it accommodates multiple industries by offering a range of grinding attachments and sieves, supporting particle sizes as fine as 40µm. Effortlessly integrating into R&D workflows, the mill ensures high precision with minimal manual intervention through its ergonomic dust-protected controls and illuminated display. With tools-free sieve changes and an automatic stop feature when accessing the grinding chamber, it prioritizes both user safety and ease of cleaning. The equipment meets stringent EMC and safety standards, providing reliable performance and engineered flexibility tailored to your specific sample preparation needs.

Benefits

  • Enhances sample accuracy with precise size reduction, facilitating better R&D outcomes.
  • Increases operational safety and convenience with intuitive, dust-protected controls and automatic stoppage.
  • Streamlines workflow with quick, tools-free sieve changes and easy cleaning processes.
  • Offers versatile application options with adaptable hammer and cutting attachments suited for various sample types.
  • Ensures reliable operation under rigorous conditions with a maintenance-free, gearless motor and integrated protection features.

General


Applications
Laboratory samples,Fine chemicals,Mineral powders,Nutraceuticals,Cosmetics,Plant materials,Food ingredients,Dry sample preparation,Sweets,Spices,Pharmaceutical powders,Pharmaceuticals
End products
Cosmetic powders,Mineral supplements,Spice blends,Protein powders,Sugar crystals,Tablet formulations,Active pharmaceutical ingredients (apis),Food flavoring agents,Ground herbal extracts,Dried plant leaves,Confectionery coatings,Dietary supplements
Steps before
Sample Preparation,Sample Dosing,Grinding Attachment Setup
Steps after
Quality Control,Sample Analysis,Particle Size Measurement,Cleaning
Input ingredients
dry samples,brittle samples,stringy samples,fibrous materials,stones
Output ingredients
finely ground samples,particle sizes < 40µm,ground materials collected in intercepting tubes
Market info

Technical Specifications


Power
1000 W
Funnel volume
300 ml
Sieve mesh size
0.2 to 6 mm
Speed range
50 – 6000 rpm
Sound level
70 dB(A) for 6000 rpm
Supply voltage
100 – 230 V ± 10 %,50Hz / 60Hz
Operating temperature
0 – 40 °C
Weight
12 kg
Measurements (L x W x H)
325 x 251 x 480 mm
Particle size attainable
,lt
40 µm (depending on product)
Protection class
IP 20
Grinding attachment variant
Hammering / Cutting

Operating Characteristics


Working mechanism
Hammer grinding
Automation level
Manual / Semi-automatic
Sample refilling
Possible during operation
Sieve changeover
Tool-free
Cleaning method
Simple cleaning process
Grinding attachment changeover
Easy customer changeable
Motor operation
Maintenance-free

Material Compatibility


Abrasion resistance
Highly resistant
Cleanability
Tool free sieve change
Corrosive resistance (e.g.,acids)
Stainless steel components
Density/particle size
0.2 to 6 mm mesh size sieves

Product type Characteristics


Sample type
Brittle / Stringy / Fibrous


EMC standards
IEC/EN 61000-6-2 / EN 61000-6-3
Safety standard
IEC/EN 61010-2-51

Physical Characteristics


Machine footprint
325 x 251 x 480 mm (L x W x H)
Weight
12 kg
Funnel volume
300 ml
Sieve kernel sizes
0.2 to 6 mm
Grinding attachment variants
Hammer/ Cutting from hardened stainless steel
Product discharge
For collection tubes with norm grinding NS29

Custom Options


Grinding attachment variants
Hammering / Cutting
Sieve change
Tool free
Funnel refilling
Possible during operation
Motor speed control
Gearless speed control
Control panel type
Illuminated speed- and status display
