Laboratory batch chocolate processing unit

Achieve precision in developing chocolate recipes with a compact 3-in-1 unit that integrates mixing, grinding, and conching—ideal for testing small batches before scaling up production.

Mixes, Grinds, and Conches Chocolate and Compounds

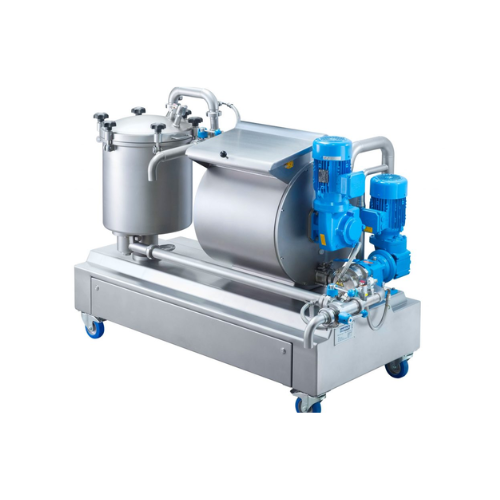

The CHOCOCON 100 from Caotech B.V. is a compact, versatile laboratory batch ball mill specifically engineered for the food, confectionery, and bakery industries. This 3-in-1 unit excels in simultaneously mixing, grinding, and conching, ideal for developing chocolate, compound coatings, and fat-based creams. Providing precise control for small batch production, it allows experimentation with new recipes and formulations, ensuring effective testing before scaling up.

With a capacity of 50 kg/h when using crystal sugar, and an end fineness of 22-25 microns achieved in approximately two hours, it efficiently caters to laboratory needs. The machine’s design ensures constant product quality with minimal energy consumption and maintenance requirements. Equipped with an installed power of 18.5 kW and weighing 960 kg, it occupies a limited floor space of 1910 x 970 x 1350 mm, enhancing its laboratory adaptability.

Constructed for easy integration into R&D departments and food laboratories, the CHOCOCON 100 enables chocolate manufacturers to innovate with hazelnut creams, almond butters, nougat-filled creations, and a variety of confectionery coatings. Its low maintenance costs and minimal wear make it a reliable choice for intensive laboratory use, while its energy-efficient performance optimizes operational costs.

Benefits

  • Facilitates innovation with efficient 3-in-1 processing for rapid recipe development.
  • Lowers operational costs through minimal energy consumption and maintenance requirements.
  • Saves laboratory space with its compact design and easy mobility.
  • Ensures product consistency with precise control over particle size distribution.
  • Supports diverse product testing, from chocolate bars to compound coatings.

General


Applications
Compound coatings,Ice cream coatings,Chocolate,Bread spreads,Fat-based compounds
End products
Chocolate truffles,Cocoa butter compound,Chocolate-dipped ice cream bars,Ganache,Almond butter spread,Chocolate bars,Nougat-filled chocolates,Chocolate coated almonds,Fat-based icing,Hazelnut cream
Steps before
Collect cocoa beans,Grind cocoa beans
Steps after
Recipe testing,Product scaling
Input ingredients
cocoa beans,crystal sugar,powdered sugar,ingredients for chocolate,ingredients for creams,ingredients for bread spreads,ingredients for fat-based compounds
Output ingredients
chocolate,creams,bread spreads,fat-based compounds,compound coatings,ice cream coatings
Market info
Caotech is known for its expertise in designing and manufacturing industrial equipment for processing cocoa, chocolate, and confectionery. The company is reputable for producing high-quality, tailor-made processing machinery, catering to both large-scale operations and niche producers.

Technical Specifications


Capacity
50 kg/h (crystal sugar)
Installed power
18.5 kW
Weight
960 kg
Dimensions
1910 x 970 x 1350 mm
Batch size
100 kg
End fineness
22-25 microns
Grinding time
2 hours (with crystal sugar)
Batch vs. continuous
Batch
Energy Consumption
Low energy consumption
Floor space requirement
Limited floor space

Operating Characteristics


Working mechanism
3-in-1 mixing,grinding,conching
Batch vs. continuous operation
Batch
Integrated steps
Mixing,grinding,and conching simultaneously
Changeover time
2 hours for end fineness
Energy efficiency
Low energy consumption
Cleaning method
Manual
Automation level
Manual


CE marking
Yes

Physical Characteristics


Machine footprint
1910 x 970 x 1350 mm
Weight
960 kg
Batch capacity
100 kg
Installed power
18.5 kW

Custom Options


Compact footprint
Limited floor space
