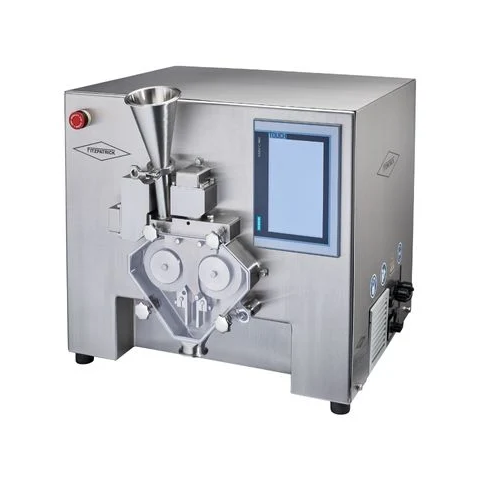

Lab scale roller compactor for dry granulation

Achieve seamless scale-up from lab development to full-scale production with this compact roller compactor, ensuring precision in dry granulation for R&D and trial batches.

Compacts and Granulates Powders to Granules

The LCS – Lab Compaction System from Fitzpatrick offers a scalable benchtop solution designed for precision dry granulation in pharmaceutical, nutraceutical, food, and chemical sectors. It features a 20 kN/cm roll force, ensuring reliable scale-up from lab to production scale. The system compacts powders into granules, enhancing the consistency of end products like pharmaceutical tablets and dietary supplements. The LCS allows complete disassembly for easy cleaning and maintenance, supported by cGMP documentation and optional containment systems for handling potent compounds. With its PLC-controlled twin feed screw system, it enables precise control over feed and compaction variables, optimizing energy use and ensuring seamless integration into existing production lines.

Benefits

  • Enables seamless scale-up from R&D to production with consistent compaction force.
  • Reduces contamination risk with dust-free, fully contained processing.
  • Facilitates thorough and efficient cleaning with easily disassembled parts.
  • Enhances material handling flexibility with customizable roller styles.
  • Supports compliance needs with cGMP documentation and optional containment.

General


Applications
Food processing,Nutraceutical formulation,Fine chemicals,Pharmaceutical formulation
End products
Nutritional supplements,Pharmaceutical tablets,Effervescent granules,Chemical intermediates,Snack bars,Dietary granules,Vitamin and mineral powders,Instant beverage powders
Steps before
Grinding,Powder Preparation,Ingredient Blending
Steps after
Packing,Coating,Tablet Pressing
Input ingredients
powders,pharmaceutical ingredients,nutraceutical ingredients,food ingredients,fine chemicals
Output ingredients
granulated powder,compacted materials,pharmaceutical formulations,nutraceutical formulations,food products,fine chemical products
Market info
The Fitzpatrick Company is known for its expertise in designing and manufacturing particle processing equipment, specializing in dry granulation, roll compaction, and size reduction technologies, earning a strong reputation for quality and innovation in the pharmaceutical and industrial sectors.

Technical Specifications


Roll Dimensions
1.5 X 12 cm
Roll Force
20 kN/cm
Minimum Capacity
10 g
Capacity
6 kg/hr
Automation
Touchpad control
Compaction Consistency
Ensures scale-up to larger machines

Operating Characteristics


Automation level
Touchpad control / PLC
Batch vs. continuous operation
Batch
Cleaning method
Complete disassembly
Changeover time
Quick,easy

Material Compatibility


Biological compatibility
Yes
Cleanability
Easy disassembly,thorough cleaning
Abrasion resistance
Suitable for pharmaceutical and chemical processing
Corrosive resistance (e.g. acids)
Designed for fine chemicals

Physical Characteristics


Roll dimensions
1.5 X 12 cm
Control panel type
Touchpad control

Custom Options


Control Panel Type
Touchpad control
Roller Style Choices
Multiple roller styles available
Containment System Design
Optional containment systems
Documentation Options
cGMP software option
