Lab-scale high-shear mixer for recipe development

Optimize your recipe development process with precise mixing, homogenization, and vacuum dispersion, ensuring stable, air-free end products for innovative formulations.

Mixes, Homogenizes, and Disperses Liquids and Powders

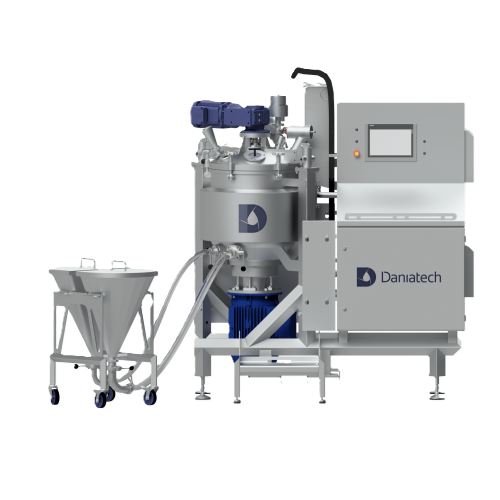

The LabMaster 100 VA from Daniatech is a versatile high-shear vacuum mixer engineered for R&D, laboratory, and small-scale production environments. This specialized mixer integrates vacuum technology and high-shear mixing to ensure rapid homogenization, eliminating air entrapment and achieving a uniform product texture for applications in food, beverages, personal care, and biotech industries. With its direct steam and cooling capabilities, it offers precise thermal control, essential for producing stable emulsions, sauces, and creams. Capable of managing viscosities up to 50,000 cP, the LabMaster 100 VA offers a customizable setup with options for alternative fittings and voltage specifications. Its integrated PLC control system enhances automation and process control, ensuring seamless integration into your existing line. Designed according to EHEDG standards, it facilitates easy cleaning and maintenance, ensuring hygienic operations. Additionally, careful engineering allows for customization, including motor types and safety certifications, catering to specific product and process needs.

Benefits

  • Achieves consistent product quality by eliminating air and lumps during mixing.
  • Enhances production flexibility, supporting both liquid and powder formulations.
  • Facilitates precise temperature control for rapid heating and cooling, optimizing processing times.
  • Simplifies cleaning processes with EHEDG-compliant, hygienic design.
  • Reduces operational complexity with integrated PLC system for streamlined automation.

General


Applications
Personal care,Soups,Plant-based beverages,Sauces,Pet food,Confectionary,Liquid batters,Condiments,Biotech,Syrups,Dairy
End products
Pancake batter,Cream soups,Skincare creams,Caramel sauce,Protein shakes,Salad dressings,Biotech reagents,Cheese sauce,Nutritional gel for pets,Glazing syrups,Shampoo formulations,Vegan milk substitutes
Steps before
Recipe Development,Powder Preparation,Ingredient Weighing,Ingredient Dispensing
Steps after
Cooling,Quality Control,Bottling,Packaging
Input ingredients
powder,liquid,steam,ice water
Output ingredients
sauce,dressing,gels,cream,emulsion,homogeneous mixture,lump-free product
Market info
Daniatech specializes in manufacturing industrial mixers and processing equipment, known for innovation and high-quality engineering, specifically within the food, beverage, and pharmaceutical industries. Their solutions are tailored to improve efficiency and performance in production processes.

Technical Specifications


Power
15 kW
Total kW
20 kW
Steam Pressure
3-5 bar
Cooling Water Usage
10 m³/h
Service Water Usage
40 l/h
Compressed Air Pressure
5-8 bar
Weight
450 kg
Dimensions
2200 x 1400 x 1200 mm
Homogenization
Down to 1µ
Viscosity Handling
Up to 50,000 cP
Heating/Cooling Jacket
Insulated with steam or ice water
Control System
Integrated PLC control system

Operating Characteristics


Working mechanism
High-shear mixer with vacuum system
Integrated steps
Vacuum powder suction,mixing,heating/cooling
CIP/SIP
Compliant with CIP standards
Batch vs continuous operation
Batch
Air incorporation control
Achieved through vortex and vacuum
Automation level
PLC-controlled with 9” display

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Homogenisation
Down to 1µ,lump-free

Physical Characteristics


Machine footprint
2200 x 1400 x 1200 mm
Tank shape
Cylindrical
Feed method
Vacuum from funnel
Discharge method
Manual butterfly valve with Tri-clamp
Compact footprint
Yes

Custom Options


Control panel type
Integrated PLC control system 9” display
