Knife mill for food and feed sample grinding and homogenization
Achieve consistent texture and precise size reduction of complex samples in food and feed production with high-speed grinding and homogenization, ensuring purity and optimal mixing for downstream processes.
Grinds and Homogenizes Food and Pharmaceutical Samples

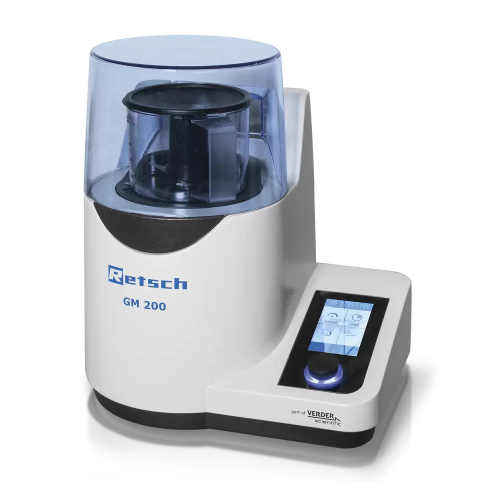

The Knife Mill GRINDOMIX GM 200 from Retsch is expertly engineered for precise and efficient grinding and homogenization of a wide range of materials in the food and pharmaceutical sectors. With dual robust blades powered by a 1000 W motor, it ensures rapid and consistent size reduction of both wet and dry samples without thermal degradation. This versatile mill is ideal for processing ingredients like cereals, cheese, and pharmaceuticals, effectively producing end-products such as spice blends and protein powders.
Its processing capacity accommodates up to 0.7 liters per batch, with variable speeds up to 14,000 min-1, enabling optimized performance for diverse applications. The digital interface allows for precise control and storage of Standard Operating Procedures (SOPs), facilitating integration into batch or continuous production lines.
With options for cryogenic grinding, stainless steel construction, and a patented gravity lid to prevent sample loss, it ensures sample purity and integrity while minimizing maintenance through autoclavable components. Each unit aligns with industry standards, ideal for R&D labs seeking enhanced sample preparation capabilities.
Benefits
- Ensures product uniformity with precise speed control for consistent grinding results.
- Preserves sensitive sample attributes by minimizing heat generation during processing.
- Adapts to diverse sample types with customizable programs and accessories.
- Increases efficiency by integrating digitally stored SOPs for repeatable operations.
- Simplifies cleaning with autoclavable components to prevent cross-contamination.
- Applications
- Dried fruit,Cheese,Cocoa nibs,Fish,Food,Fresh fruit,Spices,Candies,Supplements,Feeds,Plant materials,Nuts,Oil seeds,Soaps,Dietary supplements,Pharmaceuticals,Meat,Cereals,Vegetables,Tablets,Frozen products
- End products
- Plant-based meat alternatives,Tomato puree,Peanut oil,Nut butter,Spice blends,Candy coatings,Vegetable powders,Multivitamin tablets,Frozen fruit packets,Protein powders,Cornflakes,Cocoa butter,Bacon bits,Fishmeal,Granola,Herbal extracts,Cheese powder,Fish sticks,Muesli base flakes,Soap granules,Chocolate bars,Dried fruit snacks,Essential oils
- Steps before
- Sample Preparation,Cryogenic Pre-treatment,Material Loading
- Steps after
- Homogenization Analysis,Sample Storage,Further Processing
- Input ingredients
- candy,cereals,cheese,coated tablets,cocoa nibs,dietary supplements,dried and fresh fruit,feed pellets,fish,frozen products,ham,lettuce,meat,nuts,oil seeds,pharmaceutical products,plant materials,sausages,soap,spices,vegetables,bacon,tomatoes,raisins
- Output ingredients
- homogenized samples,ground samples,reduced particle size,homogeneous mixture
- Market info
- RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.
- Motor Power
- 1000 W
- Sample Volume Capacity
- Up to 0.7 liters
- Speed Setting Range
- 2,000 - 10,000 min-1 (14,000 min-1 BOOST)
- Size Reduction Type
- Cutting
- Maximum Feed Material Size
- 40 mm
- Final Fineness
- < 300 µm
- Batch Size/Feed Quantity with Standard Lid
- 700 ml
- Batch Size with Reduction Lid
- 150-300 ml
- Batch Size with Gravity Lid
- 300 - 600 ml
- Grinding Chamber Volume with Standard Lid
- 1000 ml
- Grinding Chamber Volume with Reduction Lid
- 250 ml/500 ml
- Grinding Chamber Volume with Gravity Lid
- 400 - 800 ml
- Material of Grinding Tools
- Stainless steel / Titanium
- Container Material
- Autoclavable Plastic / Plastic PP / Stainless Steel
- Grinding Time Setting
- 1 s - 3 min
- Interval Operation
- Yes
- Storable SOPs
- 8 programs / 4 sequences
- Drive Power
- ~ 1000 W
- Electrical Supply
- Different voltages
- Protection Code
- Grinding chamber and keypad IP 42
- Power Consumption
- ~ 1000 W
- Dimensions (W x H x D)
- 350 x 275 x 392 mm (opened
- Net Weight
- ~ 10 kg
- Standards Compliance
- CE
- Working mechanism
- Two sharp,robust blades
- Pre- and fine grinding
- In one mill
- Speed setting
- Variable,up to 14,000 min-1
- Batch operation
- 700 ml
- Cold grinding
- Cryogenic with dry ice
- Automation level
- 4.3’’ touch display with SOP storage
- Parameter setting and sequence storage
- Yes
- Cleaning method
- Autoclavable parts
- Sample homogenization
- Thorough and rapid
- Evaporation control
- Gravity lid with overflow channels
- Blade direction
- Blunt side for pre-reduction,sharp side for fine grinding
- Adaptation to sample volume
- Gravity and reduction lids
- Abrasion resistance
- High
- Biological compatibility
- Food-grade
- Cleanability
- Autoclavable
- Corrosive resistance (e.g. acids)
- Stainless steel
- Density/particle size
- Soft,medium-hard,elastic,fibrous
- Volume Capacity
- Up to 0.7 liters
- Cryogenic Capability
- Available with Cryokit using dry ice
- Customizable Options
- Various lids and containers available
- IP Protection Code
- IP 42
- Machine footprint
- 350 x 275 x 392 mm (closed) / 350 x 410 x 553 mm (opened)
- Grinding chamber volume
- Standard lid
- Container material
- Autoclavable plastic / Plastic PP / Stainless steel
- Blade material
- Stainless steel / Titanium
- Control panel type
- 4.3’’ touch display
- Net weight
- ~10 kg
- Discharge method
- N/A
- Control panel type
- 4.3'' touch display
- Interchangeable lids and containers
- Various options including gravity lid,reduction lid
- Integration possibilities
- Access to MyRETSCH web portal via QR code
