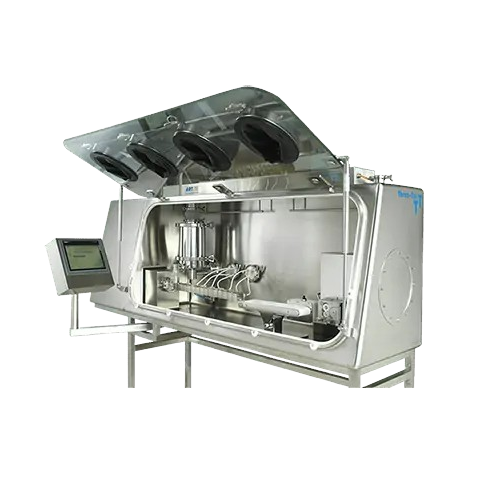

Isolator high containment for granule production

Ensure high-purity production in pharmaceuticals with controlled granulation processes, all within a contained environment eliminating the need for a clean room setup.

Controls Containment and Processes Powders in Isolated Environment

The Isolator High Containment System from Three-Tec offers a complete solution for pharmaceutical and fine chemical processes requiring stringent containment. Designed to integrate a feeder, extruder, conveyor belt with cooling, and granulator, this system ensures transformation from powder mixing to finished granules within a sealed environment, eliminating the need for a full clean room. Notably, it supports applications including the production of tablets, capsules, and APIs, with end-products extending to protein and herbal powders.

Its continuous operation is controlled centrally, enhancing efficiency and allowing manual intervention for tasks such as disassembly and cleaning of systems, which are made from stainless steel 1.4404 (316 L) with a surface finish of Ra ≤ 0.8 µm for optimal corrosion resistance. Ensuring compliance with ISO 14644-7 and OEB 4 / OEB 5 standards, the isolator creates a safe environment for operators while maintaining high production integrity. This system is highly suitable for pharmaceutical manufacturers and research laboratories seeking flexibility and precision in high containment processes.

Benefits

  • Ensures operator safety and product integrity with OEB 4 / OEB 5 compliant containment.
  • Reduces setup costs by eliminating the need for a full clean room.
  • Simplifies cleaning and maintenance with easily disassembled stainless steel components.
  • Facilitates versatile applications, from pharmaceuticals to fine chemicals.
  • Enhances process control through centralized operation management.

General


Applications
Supplements,Fine chemicals,Nutraceuticals,Pharmaceutical powders,Pharmaceuticals
End products
Herbal extract powders,Powder supplements,Active pharmaceutical ingredients (apis),Granules,Fine chemical intermediates,Protein powders,Tablets,Vitamin c powder,Capsules
Steps before
Powder Mixing
Steps after
Sterilization,Packing
Input ingredients
powder,raw materials
Output ingredients
finished granules
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Compliance
ISO 14644-7
Containment Level
OEB 4 / OEB 5
Material
Stainless steel 1.4404 (316 L)
Surface Finish
Ra ≤ 0.8 µm
Feeder Model
ZD 5-12 mm FB
Extruder Model
ZE 5-18 mm
Control System
Central
Conveyor Belt
With Cooling
Pelletizer
Standard

Operating Characteristics


Working Mechanism
Feeder,Extruder,Conveyor Belt,Granulator
Integrated Steps
Powder Mixing to Granulation
Batch vs. Continuous Operation
Batch
Cleaning Method
Manual with Glove Handling
Environment Control
High Containment OEB 4 / OEB 5
Automation Level
Central Control System

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Material
Stainless Steel 1.4404 (316 L)
Surface finish
Ra ≤ 0.8 µm
Feed/Discharge Method
Integrated conveyor belt with cooling
Working chamber design
Designed for handling with gloves

Custom Options


Control system
Central
Equipment placement flexibility
High Containment OEB 4 / OEB 5
Handling method
Glove handling
Material construction
Stainless steel 1.4404 (316 L)
Cleaning method
Easy disassembly and cleaning
