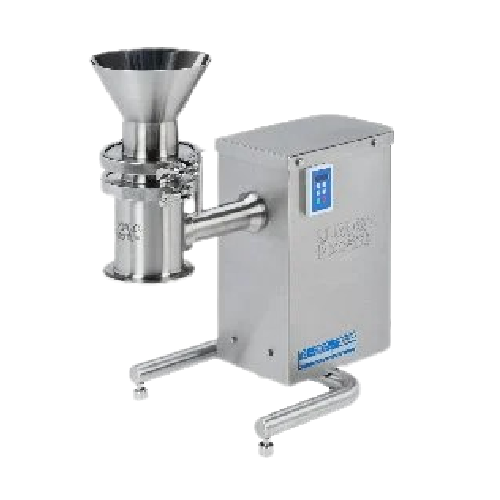

Industrial powder security screening and de-agglomeration

Ensure product purity by efficiently screening and de-agglomerating powders, capturing contaminants to safeguard processing lines before packaging.

Screens and De-agglomerates Powders and Granules

The FlexSift series by Quadro Engineering offers advanced centrifugal sifters specifically designed for high-capacity powder screening and de-agglomeration across pharmaceutical, nutraceutical, food, chemical, and cannabis industries. The inline design ensures efficient contaminant removal, while the centrifugal acceleration facilitates smooth particle flow through precisely selected meshes for specific process requirements. Available in lab, mid-size, and production-scale models, FlexSift units ensure minimal airborne particles, nearly 100% product recovery, and reduced operator exposure. Constructed to meet stringent FDA cGMP standards, the equipment features a quiet, dust-free operation that improves workplace conditions. Engineered for seamless integration, these sifters offer variable RPMs, quick no-tool changeovers, and flexible installation with options for ATEX-compliant setups, ensuring safe processing in explosive environments.

Benefits

  • Enhances product integrity by preventing contamination through effective inline sifting.
  • Increases production efficiency with high-capacity operation and minimal particle loss.
  • Improves workplace safety with quiet, dust-free processing environments.
  • Ensures compliance with FDA cGMP standards, supporting quality assurance in pharmaceutical and food industries.
  • Flexible integration with existing lines through variable speed and easy-change components.

General


Applications
Food,Nutraceuticals,Pharmaceutical osd,Chemical,Pharmaceutical api,Cannabis
End products
Protein powders,Food additives,Granulated sugar,Bulk pharmaceutical ingredients (bpis),Vitamin tablets,Food flavorings,Powdered spices,Cannabis oils,Herbal extracts,Chemical catalysts,Pharmaceutical powders,Dietary supplements
Steps before
Purification,Drying,Grinding
Steps after
Packing
Input ingredients
raw materials,pharmaceutical powders,food ingredients,cosmetics,compacted materials
Output ingredients
deagglomerated materials,processed powders,foreign materials retained,deagglomerated particles,pure powders
Market info
Quadro Engineering is known for its expertise in manufacturing pharmaceutical, food, and chemical processing equipment, particularly in milling, sieving, and deagglomeration solutions. The supplier is renowned for innovation, quality, and reliability in efficient particle size reduction technologies.

Technical Specifications


Capacity
500 kg/hr
Power
1 HP (0.75 kW) - 5 HP (4.0 kW)
Sound Level
<80 dBA
RPM
700 - 1400
Screen Diameter
82.6 mm - 203.2 mm
Dimensions
L x W x H (655 x 394 x 517 mm to 813 x 368 x 368 mm)
Sifting Efficiency
High without particle size reduction

Operating Characteristics


Working mechanism
Centrifugal sifting
Integrated steps
Deagglomeration,foreign material retention
Flow setup
Inline continuous
Automation level
Manual / PLC
Noise level
<80 dBA
Cleaning method
Designed to cGMP standards for cleanability
Capacity range
500kg/hr to high-capacity scale
Changeover time
No-tool changeovers
Operation setup
Quiet,dust-free environment

Material Compatibility


Abrasion resistance
Available
Biological compatibility
Meets cGMP standards
Cleanability
Designed for CIP/SIP
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Corrosive resistance (e.g. acids)
Stainless steel construction

Physical Characteristics


Machine footprint
655 x 394 x 517 mm (S5),599 x 326 x 351 mm (S10),813 x 368 x 368 mm (S20)
Screen diameter
82.6 mm (S5),133.4 mm (S10),203.2 mm (S20)
Power requirement
1 HP (S5),2 HP (S10),5 HP (S20)
RPM range
700 - 1400
Sound level
<80 dBA
Discharge method
360° discharge
Variable height lift stand
Available

Custom Options


Control panel type
Centrifugal inline design
Discharge method
360° discharge
Screen size
82.6 mm - 203.2 mm diameter
Variable height lift stand
No-tool changeovers
Noise level
Under 80 dBA
