Industrial homogenizer for food and beverage applications
For manufacturers seeking consistent quality, this homogenizer ensures uniform particle size and texture in diverse liquid and slurry products, reducing variability in your production line.
Homogenizes and Pumps Industrial Liquids and Slurries

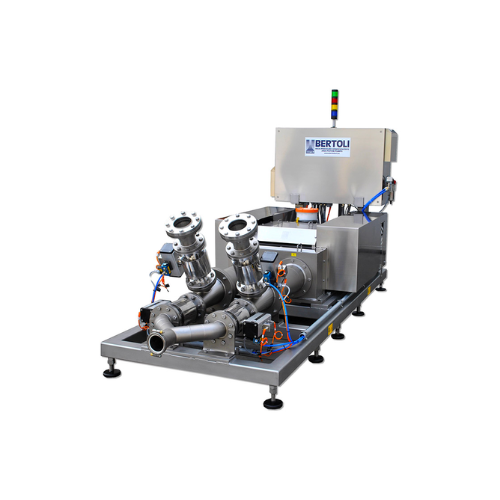

The TP 22 from Bertoli Homogenizers, a part of the Giotto Series, is a specialized industrial pump designed for diverse applications in pharmaceuticals, dairy, food and beverage, and chemical dispersions. This equipment stands out with its ability to gently handle products containing pieces up to 60 mm while maintaining stable solid-liquid ratios, essential for consistent production quality. Capable of processing up to 12,000 liters per hour at pressures up to 16 bar, the TP 22 integrates seamlessly into continuous and automatic production lines. The system operates with low maintenance costs and adopts an extended maintenance program, featuring automatic greasing and an efficient air consumption of 42 Nm³/h. Constructed with durability in mind, it offers compatibility for processing both liquids and slurries, making it highly suitable for a wide range of industrial settings.
Benefits
- Ensures consistent product quality through stable solid-liquid ratio maintenance.
- Minimizes maintenance downtime with its extended maintenance program.
- Efficiently handles large volumes, processing up to 12,000 liters per hour.
- Optimizes operational costs with low energy consumption and automated greasing.
- Versatile application in multiple industries, from pharmaceuticals to cosmetics.
- Applications
- Pharmaceuticals,Cosmetic products,Nano dispersions,Food and beverage,Biotech,Dairy,Chemical dispersions
- End products
- Cosmetic creams,Pharmaceutical syrups,Fruit juice concentrate,Nanoparticle suspensions,Yogurt,Biotechnology cultures
- Steps before
- Mixing,Blending,Chopping
- Steps after
- Bottling,Packaging,Cooling
- Input ingredients
- products with pieces,solid-liquid ratios,product containing pieces up to 60 mm
- Output ingredients
- pumped product,constant solid-liquid ratios
- Market info
- Bertoli, part of the Interpump Group, is known for its expertise in designing and manufacturing high-pressure homogenizers and positive displacement pumps, serving industries like food processing, pharmaceuticals, and cosmetics, with a reputation for reliability and innovation.
- Power
- 9.2 kW
- Pressure (bar)
- 16 bar
- Capacity
- 12000 l/h
- Piston number
- 2xØ120
- Stroke (mm)
- 800 mm
- Product inlet/outlet
- DN 100/DN 100
- Air consumption
- 42 Nm³/h
- Grease consumption
- 2 kg/1.500h
- Greasing type
- Automatic
- Minimum feeding air pressure
- 7 bar
- Handling of products with pieces
- Up to 60 mm
- Solid-liquid ratio maintenance
- Constant
- Automation level
- Automatic greasing
- Batch vs. continuous operation
- Continuous
- Energy consumption
- 9.2+9.2 kW
- Abrasion resistance
- Yes
- Biological compatibility
- Yes
- Cleanability
- CIP compatible
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- Handles pieces up to 60 mm
- Product with pieces
- Up to 60 mm
- Piston size
- 2xØ120
- Stroke
- 800 mm
- Inlet/Outlet Diameter
- DN 100
- Air Consumption
- 42 Nm³/h
- Control panel type
- Digital/Analog
- Integration possibilities
- SCADA/PLC systems
- Footprint design
- Standard/Compact
- Customizable inlet/outlet sizes
- DN 100/Custom
- Automatic greasing system
- Present/Optional
