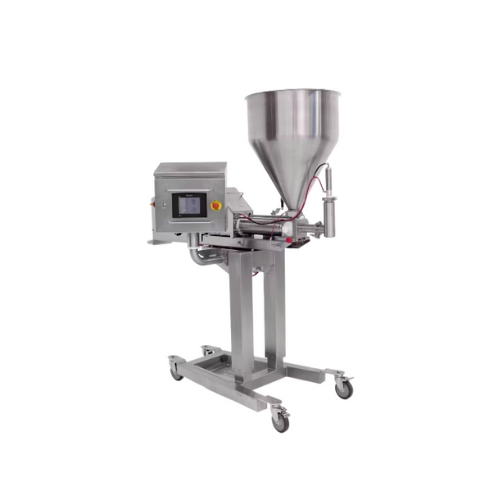

Industrial depositors for flowable food products

Enhance your production line’s efficiency with precision depositing of flowable products, ensuring accurate portion control and recipe recall at the touch of a button—ideal for automating complex food processing tasks.

Deposits and Mixes Liquid and Slurry Products

The Pro Servo Depositors from Unifiller Systems offer tailored depositing and mixing solutions for industrial food production and cosmetic applications. Engineered to work seamlessly over conveyors, these versatile systems enhance production lines by using precise servo-driven controls and a diving nozzle with built-in suck-back feature for controlled flow. Designed with a PLC system, you can effortlessly recall up to 100 stored recipes, streamlining operations and ensuring consistent product output. Capable of handling a wide range of products, from sauces and oils to creams and slurry, it facilitates high-speed, automated, continuous processing. With a cycle speed of up to 60 cycles per minute and deposit ranges from 0.15 to 93 ounces, the Pro Servo Depositors cater to the demanding needs of industrial bakeries, food processing plants, and prepared food manufacturers. Integration with inline check weighers allows for automatic volume adjustments, ensuring precise deposition, while the mobile frame and height-adjustable setup provide flexible operation across different production lines. Constructed to withstand rigorous conditions, no tools are required for adjustments, minimizing downtime and enhancing operational efficiency.

Benefits

  • Enhances precision and consistency in product output with servo-driven controls and recipe recall functionality.
  • Increases operational flexibility with a height-adjustable, mobile design for seamless integration into diverse production lines.
  • Minimizes maintenance downtime with tool-free adjustments and cleaning.
  • Automatically adjusts product volume with inline check weigher integration, ensuring minimal waste.
  • Supports high-speed, continuous processing with cycle speeds up to 60 cycles per minute, boosting production efficiency.

General


Applications
Sauces,Hummus,Sour cream,Pet food,Sandwiches,Meat,Macaroni,Oils,Cosmetics,Salsa
End products
Face cream lotion,Olive oil,Garlic hummus,French onion sour cream dip,Pasta sauce,Ground beef patties,Spicy salsa,Turkey sandwich fillings,Cheese sauce macaroni,Canned dog food
Steps before
Ingredient Preparation,Mixture Formulation,Pre-Cooking
Steps after
Packaging,Quality Control,Cooling
Input ingredients
hummus,salsa,sour cream,oil,sauce,macaroni,meat,sandwiches
Output ingredients
deposited hummus,deposited salsa,deposited sour cream,deposited oil,deposited sauce,deposited macaroni,deposited meat,deposited sandwiches
Market info
Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.

Technical Specifications


Speed
Up to 60 cycles per minute
Deposit range
0.15 – 93 oz
Particle Size
Up to .75″ or 1.5″ cubes
Power
220 VAC,Single Phase,10 A,50-60 Hz
Automation
PLC-controlled
Recipe Storage Capacity
100 recipes

Operating Characteristics


Working mechanism
Servo-driven depositor
Integrated steps
Recipe recall and automatic volume adjustments
Batch vs continuous operation
Batch
Flow control
Yes,for liquids and flowable products
Automation level
PLC-controlled
Cleaning method
Not explicitly mentioned,assumed manual or basic rinse due to suck back nozzle
Changeover time
Quick,due to recipe recall features
Energy efficiency
Implicit,assuming optimized by volume adjustments

Physical Characteristics


Height adjustable mobile frame
Yes
Discharge method
Diving nozzle
Particle size compatibility
Up to 1.5″ cubes

Custom Options


Control panel type
PLC-controlled
Integration possibilities
Integrate into a production operating system
Mobile frame
Height adjustable
Nozzle type
Diving nozzle with built-in suck back
Recipe storage capacity
Stores up to 100 recipes
Programmable modes
6 available modes
