Horizontal element kieselgur filters
In the filtration process for industries like food and beverage, maintaining uninterrupted operation is crucial, especially when dealing with fine particles. Challenges faced include maintaining consistent filtration, managing flow rates, and ensuring easy maintenance.
Optimize continuous filtration with minimal intervention

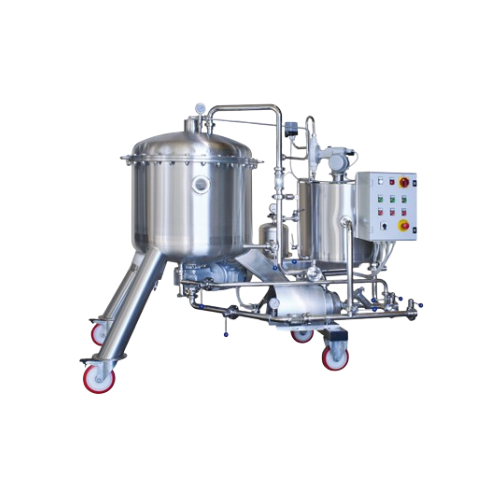

The KFA Horizontal Element Kieselgur Filters by INOXPA offer a reliable filtration solution designed for continuous operation. These filters are built entirely from stainless steel (AISI 304), ensuring durability and resistance to corrosion. They come in movable versions with up to 30 m² of filtering surface and stationary units ranging from 10 to 30 m². The design features horizontal screens that prevent cake fall during electrical interruptions. Additionally, the filters use a centrifugal cake discharge system for efficient cleaning. The vessel’s interior can be washed using integrated sprayers, and the filter screens are easy to inspect by removing the upper cover. The system includes a variable flow dosing pump and lighted sight glasses for both inlet and outlet, providing clear monitoring capabilities.
Benefits
- Enhanced durability with stainless steel construction
- Continuous operation with horizontal screens
- Easy maintenance access
- Variable flow control for optimized performance
- Integrated sprayers for efficient vessel cleaning
