High throughput twin screw extruder for low bulk density products

When handling low bulk density materials, achieving maximum throughput is crucial. This twin screw extruder offers optimized volume and high screw speeds, enabling efficient processing and increased productivity for large-scale operations.

Processes Low Bulk Density Materials Efficiently

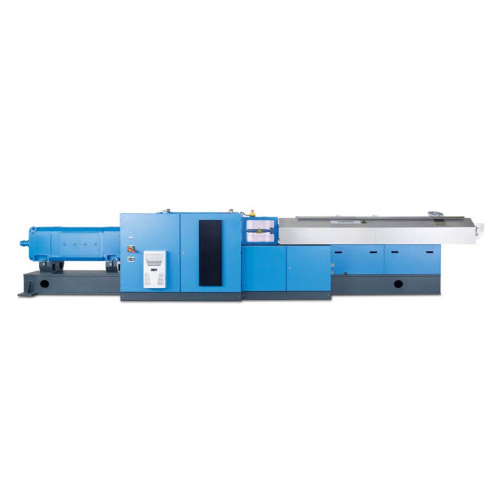

The ZSK Mv PLUS Twin Screw Extruder from Coperion is engineered to enhance productivity for industries facing the challenge of processing products with low bulk density. This extruder series stands out with its large free screw volume, high screw speeds, and significant specific torque, making it versatile for applications like plastics compounding, chemical processing, and pet food production. By achieving high throughputs at specific energy requirements under 0.13 kWh/kg, it increases plant productivity and formulation flexibility significantly.

Designed for continuous, high-speed operations, the ZSK Mv PLUS handles applications ranging from masterbatches and polyolefins to bioplastics and battery materials. It can support throughput rates up to 40% higher than its predecessors. The extruder’s robust automation and integration capabilities feature user-friendly control systems and electronic maintenance openings for minimized downtime. The equipment also offers various wear protection solutions and corrosion-resistant material options to meet specific process demands.

Moreover, its innovative Feed Enhancement Technology (FET) and side devolatilization systems ensure efficient processing of shear-sensitive and filler-rich materials. Coperion backs this extruder with comprehensive process engineering support and a global service network, offering customized solutions to match your facility’s precise needs. Whether you are in plastics recycling, battery manufacturing, or food processing, the ZSK Mv PLUS delivers reliable, cost-effective, and scalable extrusion solutions.

Benefits

  • Maximizes throughput with high screw speeds and torque, enhancing production efficiency.
  • Reduces power consumption per unit product with optimized motor and energy management.
  • Flexible processing capability accommodates diverse formulations and product transitions.
  • Features easy-access maintenance openings, significantly minimizing downtime.
  • Offers tailored wear protection options, ensuring durability in demanding processes.

General


Applications
Sealants,Polyolefins,Starches,Chocolate,Powder coating,Dairy,Cement,Calcium carbonate,Cable compounds,Pvc processing,Chemical recycling,Bioplastics,Nutrition,Pet food,Bakery ingredients,Plastics,Plastics recycling,Lft long fiber reinforced thermoplastics,Pharmaceuticals,Battery materials,Engineering plastics,Confectionery,Tpe thermoplastic elastomers,Eps expandable polystyrene,Compounding,Cereals,Adhesives,Hffr processing,Flavors,Masterbatch
End products
Lithium-ion battery cathodes,Bread dough enhancers,Dog kibble,Synthetic vanilla flavoring,Concrete blocks,Recyclable pet containers,Dairy protein supplements,Ground calcium carbonate fillers,Powder coated metal parts,Epoxy sealants,High-density polyethylene (hdpe) bottles,Lft automotive parts,Pharmaceutical tablets,Wheat starch,Pvc window frames,Eps foam packaging,Biodegradable bioplastics cutlery,Fruit-flavored candies,Colored masterbatch granules,Cornflakes,Tpe gaskets,Polypropylene containers,Hffr cable insulation,Granola,Recycled plastic pellets,Vitamin-fortified nutrition bars,Milk chocolate bars,Muesli base flakes,Chemical recycle nylon fibers,Polyethylene films
Steps before
Feeding of raw materials,Mixing of ingredients,Pre-heating,Material bulk density assessment
Steps after
Devolatilization,Pelletizing,Cooling,Quality inspection,Packing
Input ingredients
low bulk weight materials,solvent-containing substances,shear sensitive materials,carbon black,PET,HFFR (ATH,Mg(OH)2),cross linkable cable compounds,PVC,rubber,polymerization inputs (PU,POM),powder coating ingredients,catalyst carriers,adhesives,sealants,PP,hollow glass,flours,starches,pigments,fillers,additives
Output ingredients
masterbatch (effect pigments,carbon black,PET),cable compounds,PVC compounds,rubber compounds,polymerized products,powder coatings,catalysts,adhesives,sealant products,processed PP,reinforced glass products
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Specific energy requirement
< 0.13 kWh/kg
Screw speed
Up to 1,800 rpm
Throughput increase
Up to 40% compared to predecessor
Max torque per shaft
Various based on model (e.g.,100 Nm for ZSK 27 Mv PLUS)
Specific torque
11.3 Nm/cm³
Screw diameter
Range from 27 mm to 248/250 mm
Free screw volume
Do/Diof 1.8 ratio
Motor power
Varies by model (e.g.,40 kW for ZSK 27 Mv PLUS)
Feeding capacity
Enhanced with Feed Enhancement Technology (FET)
Side Degassing
ZS-EG for increased rates up to 30%
Machine size
Optimized for high throughput
Operating speed
Range up to 1,800 min-1
Power density
Maximum for efficiency
Graduation of machine sizes
Optimized for scaling
Wear protection solutions
Comprehensive
Mixing behavior
Excellent
Control system
Flexible solutions
Devolatilization
Yes,for processes containing solvents

Operating Characteristics


Throughput capability
High volume
Energy efficiency
Specific energy requirement < 0.13 kWh/kg
Product handling
Gentle for maximum quality
Screw speed
Max 1,800 rpm
Flexibility
High flexibility in product changes and machine modifications
Downtime reduction
Quick-change features for reduced downtime

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Shear sensitive product handling
Yes
General product handling flexibility
Yes

Physical Characteristics


Control panel type
User-friendly solutions
Discharge method
High throughput and efficiency

Custom Options


Control panel type
User-friendly control systems
Customization capability
High flexibility in product changes and machine modifications
Maintenance access
Electronically Secured Maintenance Opening
Screw design
Available in multiple screw diameter sizes
Wear protection solutions
Wide range of wear protection solutions available
Application-specific solutions
Quick-release features,side devolatilization ZS-EG,Feed Enhancement Technology (FET)
Integration possibilities
Flexible solutions for control system
Scale-up potential
Reliable scale-up with proven technology
