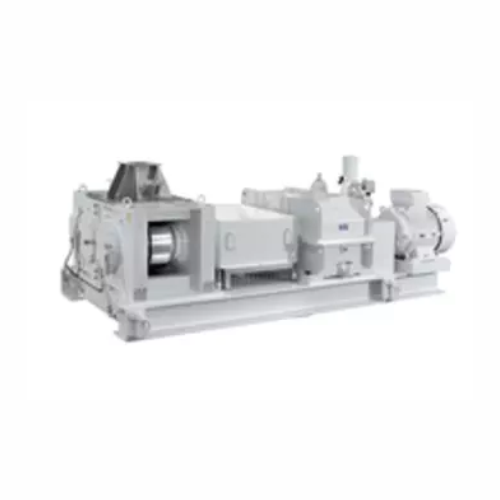

High-pressure roller mill for medium-fine crushing

Achieve precise granule distribution in medium-fine crushing applications with a compact milling solution that minimizes energy consumption and contamination, making it ideal for continuous high-speed operations in demanding industrial environments.

Processes and Compacts Hard Materials Efficiently

The High-Pressure Roller Mill ECP from Hosokawa Alpine is designed for the precise milling of hard materials such as ceramics, metals, and minerals in continuous operations. Utilizing a counter-rotating roller system, it applies optimal milling force to ensure a narrow granule distribution, ideal for applications from chemicals to food processing. With throughput capacities ranging from 0.2 to 120 tons per hour, it efficiently manages intermediate to fine crushing tasks. The ECP model features both gravity and screw feeding options to maximize throughput capacity and ensure consistent operation. Energy efficiency is enhanced with minimal contamination risk due to the selective contact of material particles with the roller surfaces. Available in stainless steel for enhanced corrosion resistance, this system is compliant with industry standards and integrates seamlessly into existing production lines, offering remote monitoring and configuration options. Additionally, the mill’s design supports easy maintenance and cleaning, ensuring minimal downtime and reliable performance.

Benefits

  • Achieves uniform granule distribution essential for high-quality end products.
  • Minimizes energy consumption through optimized milling force.
  • Reduces contamination risk with selective particle contact.
  • Integrates smoothly with existing systems for seamless process continuity.
  • Offers corrosion-resistant materials for durability in harsh environments.

General


Applications
Dishwashing powder,Cosmetics,Lithium-ion batteries,Crop protection agents,Recycling composite materials,Minerals,Technical ceramic,Graphite rounding for lithium-ion batteries,Powder coating,Sweeteners,Talc,Recycling extruded materials,Chemicals,Food,Fertiliser,Medicinal herbs,Luxury foods,Pharma,Hapi,Additive manufacturing metal,Spices,Tea,Recycling plastic mouldings,Post consumer recycling (pcr),Animal feed,Additive manufacturing polymer,Titanium dioxide,Industrial wax,Recovered carbon black,Special flours,Sugar,Metals,Cell culture media,Cocoa processing,Cable recycling,Grinding of rubber,Recycling,Api - inhaler,Lignin,Film recycling,Thickening agents,Recycling of lithium-ion batteries,Roots,Protein shifting,Hard minerals,Tablets,Lactose,Dairy products
End products
Specialty flours for baking,Packaged premium teas,Gourmet chocolates,Industrial talc,Inhaler medicines,Wax additives,Gel-based thickeners,Ceramic components,Recycled carbon black products,Painted metal surfaces,Recycled battery components,Titanium dioxide pigments,Plastic component prototypes,Cocoa powder,Recycled packaging films,High-potency active ingredients,Artificial sweeteners,Calcium-enriched dairy ingredients,Anode and cathode materials for lithium-ion batteries,Dishwasher tablets,Metal 3d printed components,Pesticide granules,Lactose-free milk powders,Granular fertilizers,Lignin-based bioplastics,Graphite electrodes,Polymer 3d printed parts,Refined sugar,Livestock nutritious pellets,Plant-based protein supplements,Laboratory culture media,Essential oils from roots,Instant spice blends,Skincare lotions,Pressed pharmaceutical tablets,Herbal supplements,Insulated cable sheaths,Pulverized rubber powders,Secondary raw materials from recycling,Recycled composite panels
Steps before
Pre-crushing,Feed preparation,Screening
Steps after
Screening with classifiers,Further fine grinding,Packaging
Input ingredients
hard materials,ceramics,minerals,metals,metal alloys
Output ingredients
medium-fine crushed materials,sharp-edged granules,narrow granule distribution
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


Roller diameter
200 mm to 1,100 mm
Working width
50 to 1,200 mm
Drive unit
11 kW to 500 kW
Throughput capacity
0.2 – 120 t/h
Max. press force
360 kN to 6000 kN
Feeding method
Gravity feeding / Screw feeding

Operating Characteristics


Working mechanism
Counter rotating rollers
Integrated steps
Pre-crushing before fine grinding
Batch vs. continuous operation
Continuous operation or closed circuit with screening machines
Throughput capacity
0.2 – 120 t/h
Automation level
Hydraulic pressure system
Energy efficiency
Extremely low energy requirements

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Roller Diameter
200 mm to 1,100 mm
Working Width
50 to 1,200 mm
