High-accuracy rotary dosing valve for fine material feeding

Ensure precise dosage of fine powders and granules, enhancing both efficiency and accuracy in your continuous production line.

Accurately Doses and Feeds Powder Materials

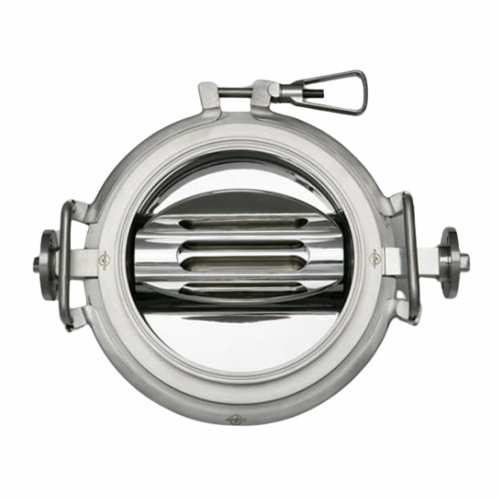

The Rotodoser from Hanningfield is a high-precision rotary dosing valve designed to accurately feed and weigh powder materials in demanding environments. This machine stands out due to its dual-rotor system—one controlled by a motor and the other by a pneumatic actuator—providing fine-tuned dosing accuracy up to ±10 grams. It’s ideally suited for applications ranging from pharmaceutical tablets and protein supplements to powdered sugar and spice mixes. The Rotodoser efficiently integrates into existing production lines with upper and lower connection compatibility and features a user-friendly HMI for setting target weights, ensuring optimal performance in both continuous and high-accuracy operations.

Fabricated from stainless steel EN 1.4404 (AISI 316L) with FDA-compliant non-metallic parts, the Rotodoser ensures compliance and durability in pharmaceutical, food, chemical, and nutraceutical industries. With sizes ranging from DN 100 to DN 300, it supports customization to fit specific process requirements. Additionally, it holds GMP design and ATEX certifications, providing assurance for safe and compliant operations. Designed for ease of cleaning and maintenance, all contact parts are easily dismantled, and a full set of documentation accompanies each unit, supporting regulatory and quality assurance needs.

Benefits

  • Ensures precise dosing accuracy, minimizing material waste and improving product consistency.
  • Integrates seamlessly into existing production setups, reducing installation time and costs.
  • Facilitates quick maintenance with easy dismantling for cleaning and part replacement.
  • Enhances operational safety and compliance with GMP and FDA certifications.
  • Offers flexibility with customizable configurations to meet diverse process requirements.

General


Applications
Supplements,Chemical powders,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Food powders,Cannabis products
End products
Pharmaceutical tablets,Powdered sugar,Chemical compounds,Protein supplements,Spice mixes,Cannabinoid oil capsules,Vitamin capsules,Dietary supplements
Steps before
Weighing,Material Preparation,Mixing,Pre-dosing
Steps after
Final Weighing,Packaging,Quality Control,Sterilization
Input ingredients
bulk solid products,powders,pharmaceutical powders,chemical powders,food ingredients,material for dosing
Output ingredients
dosed material,accurately weighed powder,fine-dosed products,pharmaceutical doses,chemical doses,food ingredient portions
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Accuracy
± 10 grams
Material of Construction
Stainless steel EN 1.4404 (AISI 316L)
Seals
Translucent Silicone,EPDM,FKM (Viton®)
Surface Finish
Ra 0.5 μm internal / Ra 1.2 μm external
Sizes
DN 100,DN 150,DN 200,DN 250,DN 300
Motion Drive
Pneumatic actuator and electric motor
Automation
HMI controls with weigh scales

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Accuracy
Up to ± 10 grams

Material Compatibility


Abrasion resistance
High
Biological compatibility
FDA compliant
Cleanability
Easy to dismantle and clean
Corrosive resistance (e.g. acids)
Stainless steel EN 1.4404 (AISI 316L)
Density/particle size
Handles various densities

Custom Options


Control panel type
HMI controls
