Gravimetric auger filler for powder weighing

Achieve precise powder filling with this gravimetric auger solution, ensuring accurate weight control and efficient deposit across diverse powder types. Ideal for scaling your production line with speed and accuracy.

Weighs and Fills Powders Precisely

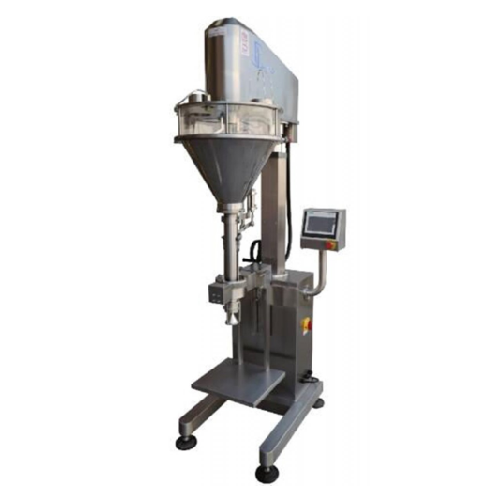

The Gravimetric Auger DH-B3-10L, provided by The Food Machinery Company Ltd, offers precise powder weighing and filling solutions for various industries. It operates with a dual-stage filling process, utilizing fast bulk fill followed by a slow top-up for accuracy, suitable for powders such as protein supplements and baking ingredients. With a hopper volume of 50L, it supports fill weights ranging from 10 to 5000 grams at a rate of 3-8 units per minute. Designed for semi-automatic operations, it can function as a standalone unit or integrate into existing packaging lines. Although compact, its robust 1.4 kW power system ensures consistent performance and reliability. Customizable software facilitates easy operation, while compliance with industry standards ensures safe and efficient processing. The auger is constructed to handle diverse powder types, with engineering support available for tailored configurations to meet specific production requirements.

Benefits

  • Enhances filling accuracy, reducing material waste with precise control.
  • Increases productivity through fast and efficient semi-automatic operations.
  • Integrates seamlessly into existing systems, optimizing production workflows.
  • Reduces energy costs with optimized power usage at 1.4 kW.
  • Customizable software offers flexibility to adapt to varying production needs.

General


Applications
Detergents,Nutraceuticals,Baking ingredients,Powdered food,Spices,Powdered chemicals,Pharmaceutical powders,Sweeteners
End products
Laundry detergent,Titanium dioxide,Vitamin supplements,Aspirin powder,Stevia powder,Protein powder,Flour blends,Cinnamon spice
Steps before
Grinding,Sieving,Mixing,Blending
Steps after
Packing,Sealing,Labelling
Input ingredients
powder,bag
Output ingredients
weighed powder,filled bag
Market info
The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.

Technical Specifications


Hopper Volume
50L
Fill Weight
10-5000g
Fill Rate
3-8 Unit per min
Total Power
1.4 KW
Total Weight
190 kgs
Machine Size
1140 × 970 × 2050 mm
Price
£13,000.00 inc. VAT

Operating Characteristics


Automation level
Manual / PLC-controlled
Batch vs. continuous operation
Batch
CIP/SIP
Manual
Cleaning method
Manual

Material Compatibility


Cleanability
Yes
Abrasion resistance
High
Corrosive resistance (e.g. acids)
Stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
1140 × 970 mm
Machine height
2050 mm
Hopper Volume
50 L
Total Weight
190 kg
Control panel type
Customized operator friendly Software

Custom Options


Control panel type
Customized operator-friendly software
Integration possibilities
Integration into packaging systems
Standalone unit
