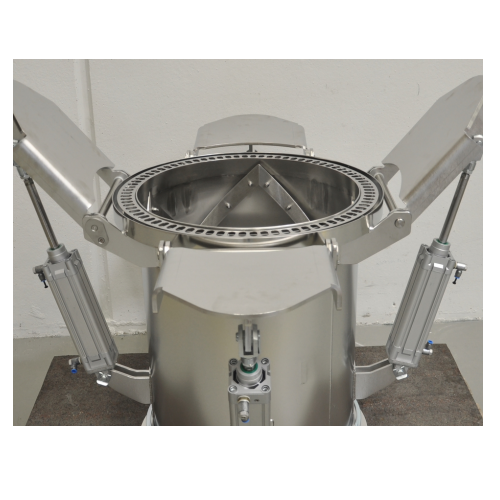

Dust-free big bag connection system for bulk solids

Eliminate dust and ensure reliable discharge with this vacuum docking system, designed for seamless big bag integration and effective material handling in bulk solid operations.

Connects and Discharges Big Bags Dust-Free

The Vacuum Docking Big Bag Connection System BBA…VS by AZO GmbH & Co. KG is engineered for effective and dust-free transfer of bulk solid materials such as powders and granules. This system, suitable for industries including chemicals, food, and pharmaceuticals, excels at handling big bags with short or no outlet spouts. The system operates by creating a vacuum seal, ensuring a clean and controlled discharge process. Capable of integrating seamlessly into existing production lines, it supports both manual and continuous operations. Constructed from high-grade chromium-nickel steel, it offers superior durability and ease of sanitation. The compact design saves both height and space, while the vacuum docking system eliminates dust emission during transfer, safeguarding both the product and working environment. The BBA…VS is customizable to meet specific operational requirements and complies with relevant industry standards, ensuring safe and efficient operation.

Benefits

  • Ensures dust-free material transfer, enhancing workplace safety and cleanliness.
  • Optimizes space utilization with its compact design.
  • Reduces maintenance time with its easy-to-clean construction.
  • Supports versatile applications across multiple industries, from food to pharmaceuticals.
  • Provides reliable discharge of bulk materials, improving operational efficiency.

General


Applications
Big bags,Raw materials,Granules,Powder materials,Free-flowing materials,Bulk solids
End products
Detergent powder,Cocoa powder,Cement powder,Pvc granules,Flour,Coffee beans,Sugar granules,Pharmaceutical powders,Plastic pellets,Fertilizer granules
Steps before
Purification,Drying,Grinding
Steps after
Packing,Sterilization
Input ingredients
big bags,bulk solids,free-flowing bulk solids
Output ingredients
discharged bulk materials,emptied big bags
Market info
AZO is renowned for designing and manufacturing automated bulk material handling systems, specializing in mixer feeding, ingredient automation, and process control, known for their reliability and tailored solutions in the food, pharmaceuticals, and chemical industries.

Technical Specifications


Construction Material
Chromium-nickel steel
Discharge time
Short time
Docking system
Vacuum docking
Capacity
Big bag
Height and space saving
Yes
Connection type
Dust-tight
Discharge system
Two types based on bag
Utility Model Number
DE 20 2012 003 109.0

Operating Characteristics


Working mechanism
Vacuum docking system
Integrated steps
Hoisting and vacuum docking
Batch vs. continuous operation
Batch
Cleaning method
Simple construction for ease of cleaning

Material Compatibility


Abrasion resistance
High
Biological compatibility
Suitable for food-grade materials
Cleanability
Easy to clean due to simple construction
Corrosive resistance (e.g. acids)
High-grade chromium-nickel steel
Density/particle size
Suitable for free-flowing bulk solids

Product type Characteristics


Container type
Big bags with short or no outlet spout

Physical Characteristics


Machine footprint
Compact
Construction material
High-grade chromium-nickel steel
Docking system
Vacuum docking
Discharge method
Gravity assisted
Height requirement
Saves height
Cylindrical housing
Yes

Custom Options


Discharge method
Vibrating perforated sheet
Compact footprint
Saves height and space
Material
High-grade chromium-nickel steel
Vacuum docking system
Cylindrical housing
Container compatibility
Big bags with short/no outlet spout
Space saving
Simple construction
Utility model registration
DE 20 2012 003 109.0
