Dust-control sack tip station for industrial loading

Ensure seamless and safe unloading of powders with an integrated dust control solution, optimizing your production line efficiency and operator safety during manual bag handling.

Controls Dust and Empties Bags Efficiently

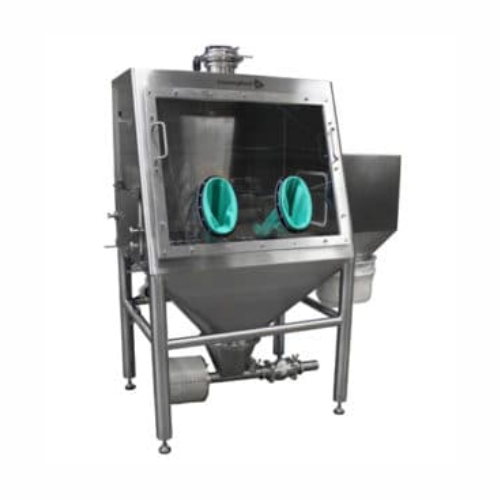

The Sack Tip Station by Hanningfield Process Systems is engineered for precise and efficient powder handling across various industries, including pharmaceuticals, food and beverage, chemicals, and nutraceuticals. Its core innovation lies in the ability to integrate seamlessly into existing production lines, facilitating manual or continuous operations. This station addresses dust control challenges by incorporating a dust extraction system that safeguards the operator and environment. It is constructed from durable 316L stainless steel for high corrosion resistance and features FDA-compliant seals for stringent hygiene standards. Typically used to empty bags efficiently, it can integrate with downstream vacuum conveyors or alternative transfer methods, optimizing workflow. The Sack Tip Station supports customization options to perfectly align with specific application needs and can include validation documentation for regulatory compliance.

Benefits

  • Ensures operator safety and environmental protection through integrated dust extraction.
  • Enhances productivity by enabling efficient bag emptying and seamless integration with downstream processes.
  • Reduces operational costs with durable 316L stainless steel construction for long-lasting performance.
  • Offers flexibility with customization to meet diverse production requirements.
  • Maintains compliance with industry standards through FDA-compliant components and available validation documentation.

General


Applications
Chemicals,Nutraceuticals,Pharmaceutical powder,Food and beverage,Powder handling,Cannabis
End products
Protein powders,Pharmaceutical tablets,Cannabis edibles,Chemical additives,Flour mixes,Dietary supplements
Steps before
Material Preparation,Pre-Weighing,Handling,Bag Positioning
Steps after
Vacuum Conveying,Powder Transfer,Downstream Processing,Packaging,IBC Discharge
Input ingredients
sacks,bags,powder
Output ingredients
empty sacks,empty bags,contained powder,vacuum conveyor system,IBC discharge
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Material
316L Stainless Steel (contact),304 Stainless Steel (non-contact)
Surface Finish
180 grit for contact parts,150 grit for non-contact parts
Dust Control
Integrated dust extraction (filter / fan)
Design Feature
Custom designs available
Compliance
FDA compliant seals,gaskets

Operating Characteristics


Dust Emission Control
Integrated dust extraction filter/fan
Unloading Method
Gravity or vacuum
Safety Features
Dust extraction hood
Loading Speed
Fast and easy loading
Bag Piercing
Automatic during shelf placement
Material Handling
Bridge prevention with agitator option
Flexibility in Design
Custom designs available

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
FDA compliant
Cleanability
Yes
Corrosive resistance (e.g. acids)
316L stainless steel
Density/particle size
Varied

Physical Characteristics


Sack loading method
Gravity / Vacuum
Discharge method
Vacuum conveying
Construction material
316L stainless steel
Shelf type
Bag piercing shelf
Dust control feature
Integrated dust extraction hood
Frame material
304 stainless steel
Contact part surface finish
180 grit
Non-contact part surface finish
150 grit

Custom Options


Construction material
316L stainless steel
Non-contact material
304 stainless steel
Dust extraction integration
Filter / fan
Agitator option
Available for bridge prevention
Design customization
Available to suit any application
