Dust control sack tip station for bag unloading
Ensure efficient powder unloading and minimize dust emissions in your production line with this specialized sack tip station that seamlessly integrates into your existing process to enhance safety and control.

Controls Dust and Unloads Sacks Efficiently

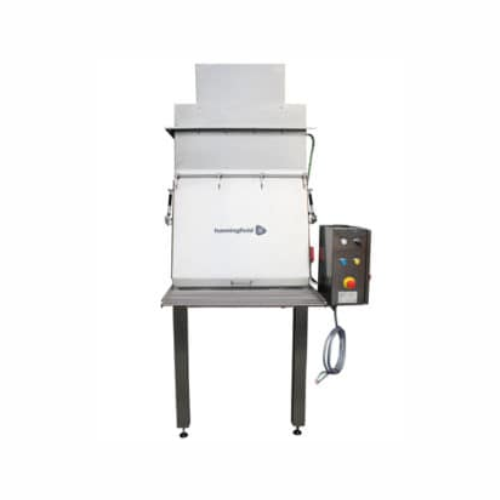

The Sack Tip Station from Hanningfield Process Systems is engineered to enhance manual unloading operations while maintaining strict dust control standards in pharmaceutical, food, and chemical processing environments. This equipment is constructed from robust 316L stainless steel with FDA-compliant seals, ensuring hygiene and durability. The station features an integrated dust extraction hood that efficiently captures particulates, protecting both operators and the surrounding process area. Designed for seamless integration into existing production lines, it accommodates manual and batch operations, facilitating the handling of diverse powder types, from pharmaceutical granules to chemical additives.
Capable of handling various product types, this station supports gravity and vacuum-based conveying systems, making it adaptable to different production scales and specifications. Its compliance with industry standards, including availability of full validation documentation like FS/DS, FAT, SAT, and IQ/OQ, makes it suitable for regulated industries seeking high-quality, controlled environments. Additionally, with customizable design options, the Sack Tip Station can be tailored to meet specific operational requirements, ensuring optimal performance and safety in various industrial applications.
Benefits
- Enhances operational safety by effectively controlling dust emissions.
- Reduces manual handling risks with user-friendly bag placement and emptying.
- Ensures compliance with GMP standards for regulated industries.
- Minimizes cross-contamination with stainless steel construction and integrated dust hood.
- Customizable to fit specific process needs, enhancing production flexibility.
- Applications
- Metal powders,Detergents,Pharmaceutical powder,Chemical,Food and beverage,Spices,Nutraceutical,Cannabis
- End products
- Instant soup mix,Laundry detergent powder,Fine metal powder,Cannabis flower powder,Ground black pepper,Multivitamin tablet blend,Pharmaceutical granules,Food flavoring additives
- Steps before
- Bag Loading,Material Selection,Quality Check
- Steps after
- Dust Extraction,Vacuum Conveying,Material Handling
- Input ingredients
- sacks,bags,powder
- Output ingredients
- emptied powder,vacuum conveyor,downstream conveyor system
- Market info
- Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.
- Material
- 316L stainless steel
- Dust Control
- Integrated dust extraction
- Operation Method
- Gravity or vacuum
- Design Type
- Custom designs available
- Surface Finish
- 180 grit contact parts,150 grit non-contact parts
- Construction Standards
- FDA compliant seals and gaskets
- Documentation
- Full validation documentation available (FS/DS,FAT,SAT,IQ/OQ)
- Bag Type
- Sacks,bags
- Emptying Method
- Safe contained method for unloading
- Protective Features
- Dust extraction hood
- Venting System
- Filter / fan
- Working mechanism
- Gravity or vacuum conveyor integration
- Integrated steps
- Dust extraction (filter/fan)
- Batch vs. continuous operation
- Batch
- Cleaning method
- Manual
- Automation level
- Manual
- Abrasion resistance
- Yes
- Corrosive resistance (e.g. acids)
- Yes
- Cleanability
- High
- Biological compatibility
- FDA compliant
- Density/particle size
- Adaptable
- Material of construction
- 316L Stainless Steel for contact parts,304 Stainless Steel for non-contact parts
- Dust extraction
- Integrated filter / fan
- Design type
- Custom designs available
- Dimensions
- Customized as per application
- Sack handling
- Manual loading,automated gravity or vacuum discharge
- Surface finish
- 180 grit for contact parts,150 grit for non-contact parts
- Material of Construction
- 316L Stainless Steel
- Surface Finish
- 180 grit,FDA compliant
- Agitator
- Available for bridge prevention
- Dust Extraction Integration
- Filter / Fan
- Design Customization
- Available to suit any application
- Validation Documentation
- FS/DS,FAT,SAT,IQ/OQ
