Dosing and conveying screw for dry bulk materials

Efficiently manage the precise dosing and conveying of dry, powder, and pelleted materials, ensuring seamless integration into diverse production lines and boosting operational reliability.

Conveys and Doses Bulk Powders and Granulates

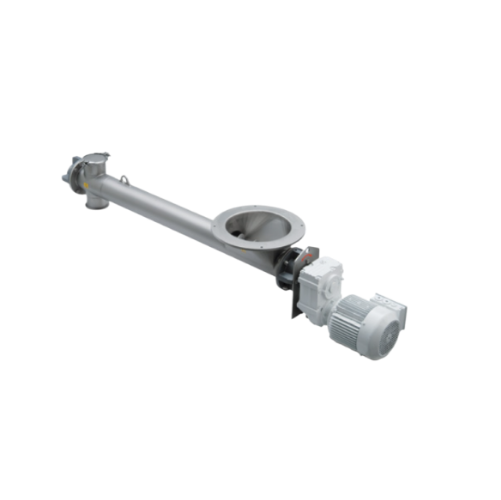

The DS Dosing and Conveying Screw ZSD, offered by Zeppelin Systems, is engineered for precision dosing and efficient transport of dry bulk materials across various industries, including food, chemicals, plastics, and rubber. This equipment stands out due to its stainless steel construction, ensuring durability and corrosion resistance, suitable for food-industry applications. The system uses a laser-cut screw flight design, facilitating high dosing precision through frequency converter adjustments, allowing easy adaptation to local conditions such as bulk material weight and output requirements.

Operational in both single- and dual-outlet configurations, it supports flexible integration within conveying systems for tasks like weighing, filling, or emptying vessels. The DS screw handles powders and granulates including flour, sugar, powdered milk, and even polymer and PVC granules. The robust design allows continuous, high-speed operations and includes features such as de-aeration, quick cleaning with EHEDG compliance, and lifelong bearing lubrication for minimal maintenance.

With ATEX conformity and EC type examination certification, this equipment meets stringent safety standards. Customizable options such as the inclusion of sealing gas for extended bearing life and the option for integrated speed monitoring sensors ensure that it meets specific operational demands. Whether for integrating into existing lines or forming part of new systems, the DS screw offers reliable performance for enhanced productivity.

Benefits

  • Enhances dosing precision and efficiency, improving production accuracy and reducing material waste.
  • Provides long-term reliability with lifelong bearing lubrication, minimizing maintenance needs.
  • Ensures safe operation in explosive environments with ATEX conformity, lowering risk.
  • Offers flexible integration with customizable configurations, accommodating various production line requirements.
  • Facilitates quick cleaning and inspection, decreasing downtime and maintaining hygiene standards.

General


Applications
Chemical powders,Detergents,Powdered materials,Plastic granulates,Conveying systems,Food industry applications,Pelleted materials,Dry bulk materials,Industrial powders,Rubber powders
End products
Powdered milk,Coffee powder,Rubber compounds,Sugar,Pvc granules,Powdered spices,Powdered detergents,Cereal grains,Flour,Laundry soap granules,Talcum powder,Polymer pellets,Powdered pigments
Steps before
Drying,Grinding
Steps after
Packing,Weighing,Inspection
Input ingredients
dry bulk materials,powder bulk materials,pelleted bulk materials
Output ingredients
dosed materials,weighed materials,conveyed materials
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Material
Stainless steel
Size
80/100/150/200/300
Outlet Design
One or two outlets
Configuration Distance
50 mm increments from feeding inlet to outlet
Outlet Edges
Flared and rounded
Cleaning
Quick cleaning,EHEDG-compliant
Temperature Range
-10 to +50°C
Pressure Range
-0.2 bar to 0.1 bar
Conveying Precision
High dosing precision
Motor
Plug-in transmission,frequency converter regulation
Bearings
Dust-tight external bearings,lifelong lubrication,air purge bushing
Screw Flight Design
Laser-cut,continuously welded
Surface Finishing
Interior surface roughness 0.8µm,polished exterior
Gap-Free Welding
Helix and screw flight
Operating Mode
Reversible operation,adjustable motor rotation direction
Speed Monitoring
Recommended in explosion risk areas

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
Minimal
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Working mechanism
Screw Conveying
Integrated steps
Dosing and Conveying
De-aeration capability
Upper Nozzles
Inspection capability
Upper Nozzles
Material Contact Surfaces
Stainless Steel
Dosing precision
High

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Screw Type
Trough conveying screw
Material
Stainless Steel
Conveying Screw Size
80/100/150/200/300 mm
Outlet Type
Single or Double
Surface Roughness
0.8µm,polished exterior
Feeding Inlet Type
Welded round with pipe segment
Length Variation
Various distances in 50 mm increments
Dosing Precision
High dosing precision
Operating Pressure
-0.2 bar to 0.1 bar (g)
Operating Temperature
-10 to +50°C

Custom Options


Control panel type
Available with plug-in transmission motor
Outlet Type
Single or Two-outlet configuration
Surface Finish
Polished exterior,0.8 µm interior roughness
Feeding Inlet
Standardized with welded round feeding inlet
Customization of Size
Five sizes available (80/100/150/200/300)
Distance Customization
In 50 mm increments
Flange Joint
Flange joint at feeding inlet,optional on outlet
Inspection Capability
Can be opened via upper nozzles for de-aeration or inspection
