Batch weighing system for precise raw ingredient mixing

Optimize your confectionery production with a precise batch weighing and mixing system, ensuring consistent and high-quality formulations. Maximize process efficiency while minimizing ingredient waste through meticulous control and accuracy in ingredient handling.

Accurately Weighs and Mixes Confectionery Ingredients

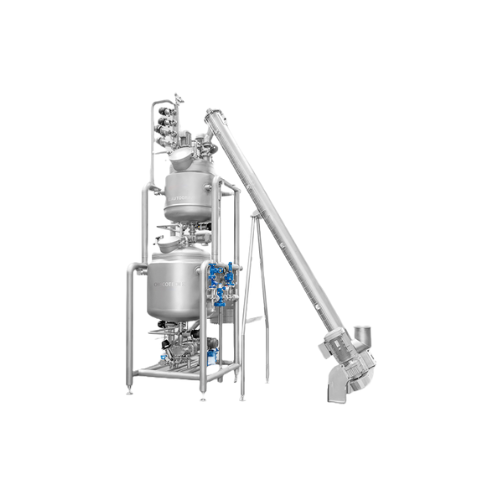

The AUTOGRAV® system from CHOCOTECH GmbH is a versatile batch weighing and mixing solution designed for the confectionery industry. This system excels in precise metering and mixing of raw ingredients, crucial for producing high-quality sweets like caramels, nougat, and chocolate bars. Its multi-stage process begins with accurate weighing, using several configurations tailored to different production needs, such as cold mix slurries or steam-jacketed solutions for dissolving sugar crystals.

The system’s design incorporates options like a high shear mixer for enhanced emulsification and homogenization, particularly beneficial when working with milk and fat in caramel production. Integration into automated production lines is seamless, supported by robust PLC controls for optimal operation. The AUTOGRAV® is available in various sizes, accommodating batch sizes from 150 liters to 750 liters, making it suitable for diverse production scales.

Engineered for efficiency, it minimizes energy consumption with steam jacketed options, ensuring uniform temperatures and preventing ingredient adhesion to vessel walls. The construction materials are selected for their durability and corrosion resistance, meeting the stringent standards of food and confectionery manufacturing. Customization is available to match specific processing requirements, supported by CHOCOTECH’s engineering expertise.

Benefits

  • Ensures product consistency with precise ingredient metering and mixing.
  • Integrates seamlessly into automated lines, reducing operational complexity.
  • Minimizes energy use with efficient steam jacket options.
  • Versatile production options accommodate various confectionery products.
  • Available in corrosion-resistant materials for long-lasting durability.

General


Applications
Candy,Jelly,Halva,Brittles,Fondant,Sweets,Chewy candy,Hard candy,Chocolate,Caramel
End products
Sesame brittle,Gummy bears,Soft caramels,Milk chocolates,Toffee,Peppermint sticks,Turkish delight,Chocolate bars,Marzipan,Nougat
Steps before
Weighing,Ingredient preparation,Purification,Dissolving
Steps after
Cooking,Cooling,Crystallization,Caramelization,Aeration
Input ingredients
raw ingredients,sugar crystals,milk powders,milk,fat
Output ingredients
fully dissolved solution,homogenized masses,emulsified masses,caramel,slurry mix
Market info
CHOCOTECH is known for providing innovative solutions in the confectionery industry, specializing in machinery for processing and manufacturing chocolate, candies, and other sweets, with a reputation for precision engineering and tailored, high-quality equipment solutions.

Technical Specifications


Batch size
150 l,250 l,500 l,750 l
Batch vs. continuous
Batch
Automation
Optional PLC control
Heating method
Steam jacked
Stirrer type
Anchor-type with optional scrapers
Multi-functionality
Mixing,dissolving,emulsification
Optional feature
High shear mixer

Operating Characteristics


Working mechanism
Batch weighing and mixing
Integrated steps
Weighing,mixing,homogenization
Automation level
PLC-controlled
Batch vs. continuous operation
Batch
CIP/SIP
CIP
Cleaning method
CIP

Material Compatibility


Abrasion resistance
Satisfactory
Biological compatibility
Food safe materials
Cleanability
Easy to clean surfaces
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
5–100 µm

Physical Characteristics


Batch size
150 l,250 l,500 l,750 l

Custom Options


Control panel type
HMI/PLC panel
Integration possibilities
SCADA integration
Batch size options
150 l,250 l,500 l,750 l
Heating options
Ambient / Warm Water / Steam
Mixing options
Anchor stirrer / High shear mixer
Surface-sweeping feature
Anchor-type stirrer
