Batch mixer for animal feed

Streamline your mixing process with a high-speed batch mixer that delivers up to 20 mixing cycles per hour while ensuring minimal cross-contamination and exceptional mixing quality for free-flowing dry solids.

Processes and Mixes Dry Solids Efficiently

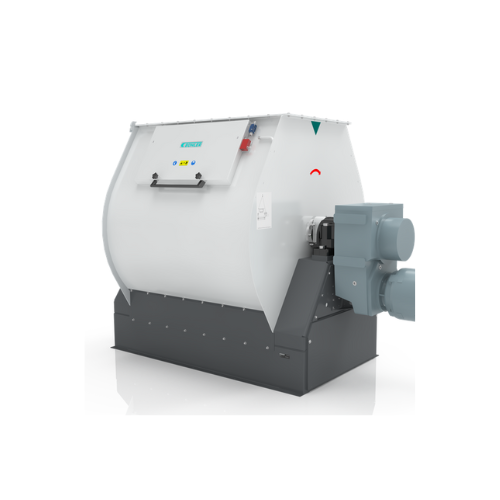

The Speedmix Batch Mixer from Bühler Group excels in efficiently processing dry solids for a range of industries from animal feed to cosmetics. With its innovative design, the Speedmix achieves unrivaled mixing homogeneity through precisely engineered mixing elements that operate at high speeds, completing cycles in just 90 seconds. This mixer is built for diverse applications, including poultry feed, fish meal, and ground spices, delivering up to 20 mixing cycles per hour. Its automated system supports seamless integration into existing production lines, featuring closed-loop control via a multi-sensor NIR system for real-time monitoring of moisture, protein, and fat content. Designed with minimal cross-contamination in mind, the Speedmix holds residues to under 0.05%, thanks to hygienic flaps and seals suitable for powder additives as fine as 100 microns. This machine’s user-centric maintenance, like adjustable paddles and easy-access cleaning, ensures minimal downtime, while the option for a stainless-steel construction offers durability under demanding conditions. Ideal for high-capacity operations, the Speedmix caters to those demanding precision and efficiency in batch processing.

Benefits

  • Enhances productivity with up to 20 high-quality mixing cycles per hour.
  • Minimizes cross-contamination risks with hygienic design and efficient residue management.
  • Allows precise ingredient control through real-time monitoring of moisture, protein, and fat levels.
  • Reduces operational downtime with user-friendly maintenance and adjustable components.
  • Accommodates diverse production needs with customizable mixing capacities and configurations.

General


Applications
Chemicals,Animal feed,Insect technology,Oilseeds,Pet food,Pulses,Paddy,Wheat,Grain,Cosmetics,Nuts,Spices,Vegetables,Aqua feed,Rice,Biomass,Dried fruits,Dairy
End products
Sunflower oil,Dog kibble,Roasted almonds,Wood pellets,Lentil flour,Ground turmeric,Cream base,Cornmeal,Milk powder,Brown rice,Poultry feed,White rice,Flour,Cricket flour,Fish meal,Dried apple slices,Perfume oil
Steps before
Grinding,Drying,Dehulling,Conditioning,Extrusion
Steps after
Packing,Pelleting,Coating,Weighing,Dosing,Sifting,Grading
Input ingredients
free-flowing dry solids,animal feed ingredients,powder additives
Output ingredients
mixed animal feed,processed materials,homogeneous mixtures
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Mixing Cycles per Hour
Up to 20 cycles
Mixing Time
90 seconds
Mixing Capacity
100 to 10000 liters
Residual Material
< 0.05% for dry goods
Variation Coefficient (CV)
2 to 5% at 1
Discharge Time
Less than 10 seconds
Liquid Addition Percentage
Up to 5%
Material Compatibility
Dry solids

Operating Characteristics


Mixing cycles per hour
Up to 20
Mixing time
90 seconds
Batch operation
Batch
Discharge time
Less than 10 seconds
Homogeneity
CV of 2 to 5%
Load start capability
Soft starter under full load
Liquid addition during mixing
Up to 5%
Overflow prevention
Profile rubber seals
Material residue minimization
< 0.05%
Automation level
Standalone or integrated

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Mixing chamber capacity
100 to 10000 liters
Discharge method
Twin discharge flaps
Footprint
Compact design
Material of construction
Stainless steel options
Opening type
Complete trough opening
Control panel type
Digital control interface

Custom Options


Control panel type
Touchscreen / PLC interface
Integration possibilities
Standalone / Smart factory integration
Discharge method
Twin discharge flaps
Material of construction
Stainless steel / Optional full stainless steel chamber
