Batch cooker for confectionery masses

Effortlessly cook a variety of confectionery masses, like caramel and jelly, with precise control over temperature and consistency for optimal product quality.

Processes and Homogenizes Confectionery Masses

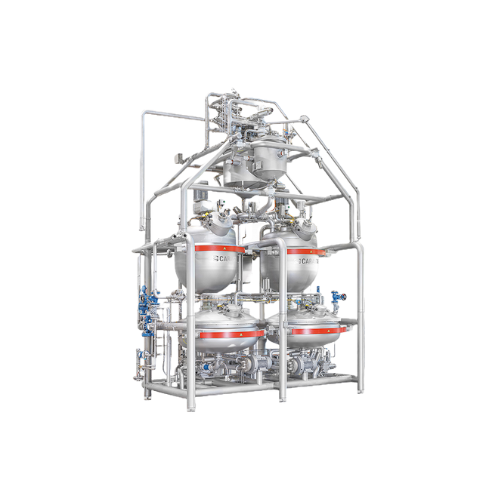

The CARASTAR® Series from CHOCOTECH, including models 180, 400, 500, and 750, are batch cookers engineered for the precise processing of confectionery masses. These units excel in cooking, homogenizing, and aerating various candy forms such as caramel, jelly, and fondant.

What sets the CARASTAR® apart is its ability to operate both batch and continuous processes, facilitated by a reservoir tank that buffers the cooked mass for seamless integration into downstream production. The cookers feature a high shear mixer for uniform mass dispersion and are equipped with CIP booster pumps and spray ball systems for efficient inline washing, ensuring high standards of hygiene and minimal downtime.

The CARASTAR® is designed to meet diverse processing needs with capacity options ranging from 60 kg to 250 kg per batch, and throughput capabilities up to 750 kg/h. The integration of load cells enables automatic ingredient feeding, and vacuum installations facilitate precise caramelization and crystallization.

Constructed for versatility, the CARASTAR® is compatible with various product types, managing both liquid and slurry forms with ease. Its energy-efficient design and high operational reliability make it an ideal choice for candy manufacturers and food processing companies looking to enhance production efficiency while maintaining product quality.

Benefits

  • Enhances production efficiency by integrating batch and continuous processes.
  • Ensures consistent product quality through high shear mixing for uniform mass dispersion.
  • Reduces maintenance downtime with a CIP system for quick, contamination-free cleaning.
  • Minimizes energy usage with efficient vacuum and operational design.
  • Facilitates precise ingredient control with automatic load cell systems.

General


Applications
Candy,Jelly,Aeration,Fondant,Crystallization,Sweets,Chewy candy,Hard candy,Caramelization,Chocolate,Caramel
End products
Chocolate truffles,Gummy bears,Caramel candy,Marshmallows,Creamy fudge,Chewing gum,Toffee,Fondant icing,Nougat,Lollipops
Steps before
Weighing,Dissolving,Ingredient Feeding
Steps after
Vacuuming,Crystallization,Aeration,Cooling,Forming,Tempering,Packing
Input ingredients
sugar,binders,jelly,fillings,sugar solutions
Output ingredients
cooked mass,caramel,all sugar and sugar-free masses
Market info
CHOCOTECH is known for providing innovative solutions in the confectionery industry, specializing in machinery for processing and manufacturing chocolate, candies, and other sweets, with a reputation for precision engineering and tailored, high-quality equipment solutions.

Technical Specifications


Batch size
60–250 kg
Throughput
180–750 kg/h
Automation
Automatic ingredient feeding with load cells
High shear mixer
Yes,for homogenization and lump free dispersion
Cooking methods
Atmospheric,pressure,vacuum,post-vacuum,cooling
CIP system
Includes CIP booster pump and 360° spray balls
Reservoir tank
Included,for batch-continuous process
Material applications
Caramel,binders,jelly,fillings,sugar solutions

Operating Characteristics


Working mechanism
Atmospheric,under pressure,under vacuum
Integrated steps
Dissolving,mixing,cooking
CIP principles
360° spray balls,CIP booster pump
Batch vs. inline flow
Batch-continuous process

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Varies depending on model size
Batch size
60-250 kg
Discharge method
Atmospheric drop into reservoir
Tank shape
Universal batch cooker
Size options
180,400,500,750 kg/h
Customization options
Load cells,vacuum installation,high shear mixer,CIP booster pump,360° spray balls

Custom Options


Control panel type
PLC-controlled
Integration possibilities
Batch-continuous process
Vacuum installation
Available
High shear mixer
Included for homogenization
CIP booster pump
Available for inline washing
Load cells
For automatic ingredient feeding
Dairy valving
Allows inline washing
360° spray balls
Included
