Batch automation system for fast and precise weighing

Achieve unmatched precision and speed in batch processing with this advanced system, optimizing the weighing and dosing of multiple components to reduce contamination and enhance efficiency in your production line.

Automates Precision Dosing and Weighing Operations

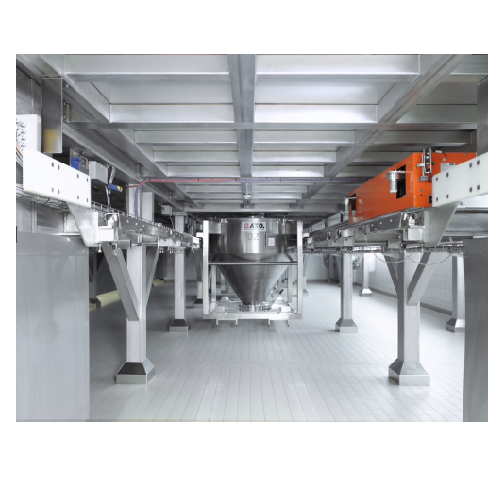

The AZO ShuttleDos® from AZO GmbH & Co. KG is a high-speed batch automation system designed to enhance precision dosing and weighing operations. This solution utilizes mobile AZO® ShuttleTainers and MIXTAINERS to facilitate rapid, contamination-free transfer and dosing of components, essential for industries like pharmaceuticals, food, and chemicals. Capable of producing 20 batches per hour with up to ten precisely weighed components, it manages a wide range of weights from 100 grams to several hundred kilograms. Integrated with powerful discharge and dosing units, it ensures efficient handling of powders and granules stored in various formats, such as silos and Big-Bags. The modular design allows for separate areas for large, medium, and small components, optimizing production line configuration. With its fully automatic, unmanned operation capability, the system significantly reduces downtime and boosts throughput. Built without ground contact, it offers easy cleaning and maintenance, maintaining strict hygiene standards. The AZO ShuttleDos® is suitable for producing protein powders, vitamin tablets, and other fine chemical products, ensuring precise and efficient material handling within your production line.

Benefits

  • Increases production efficiency with up to 20 batch cycles per hour.
  • Ensures contamination-free operations through closed-system dosing and weighing.
  • Minimizes operational costs with unmanned operation capabilities.
  • Facilitates easy cleaning and maintenance with floor-clearance design.
  • Adapts to diverse manufacturing needs with customizable component handling.

General


Applications
Vitamins,Supplements,Fine chemicals,Pharmaceutical tablets,Nutraceuticals,Pharmaceutical powder,Food ingredients,Enzymes,Spices,Minerals
End products
Flavor enhancers,Protein powders,Turmeric powder,Enzyme blends,Vitamin c tablets,Mineral supplements,Calcium tablets,Herbal extracts,Pharmaceutical excipients,Dietary supplements
Steps before
Raw Material Storage,Silo Loading,Big-Bag Supply,Container Supply,Sack Feeding
Steps after
Product Discharge,Transport to Next Dosing Station
Input ingredients
raw materials,silos,Big-Bags,containers,goods from sacks,bulk materials,bags
Output ingredients
dosed batches,precisely weighed components,automated handling of bulk materials
Market info
AZO is renowned for designing and manufacturing automated bulk material handling systems, specializing in mixer feeding, ingredient automation, and process control, known for their reliability and tailored solutions in the food, pharmaceuticals, and chemical industries.

Technical Specifications


Automation
Fully automatic
Batch speed
20 batches per hour
Component weighing range
100 grams to several hundred kilograms
Dosing precision
Highest precision
Operation
Unmanned operation possible
Line separation
Strict line separation
Cleaning method
Easy to clean with floor clearance
Line configuration
Optimum linear arrangement
Storage capability
Silos,Big-Bags,Containers
Discharge units
Powerful discharge and dosing units
Throughput rate
High throughput rates with individual scales
Cycle rate enhancement
Mobile shuttle transport increases cycle rates
Environmental Impact
Low carbon footprint production

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Fully automatic
Cleaning method
Contamination free due to floor clearance
Changeover time
Fast due to mobile shuttles

Material Compatibility


Abrasion resistance
High
Cleanability
Easy to clean thanks to floor clearance
Contamination free
Ensured by design
Density/particle size
Varies based on component

Physical Characteristics


Floor clearance
Yes
Feed method
Silo,Big-Bags,Containers,Sacks via Feeding Hopper
Discharge method
Mobile AZO® ShuttleTainer or AZO MIXTAINER®
Machine structure
Without ground contact
Cycle rate
20 batches per hour

Custom Options


Control panel type
PLC / SCADA
Integration possibilities
Automated guided vehicles (AGV)
Line configuration flexibility
Large,medium,and small component separation
Automation level
Fully automatic
Operational flexibility
Contamination-free design
Mobile component handling
AZO® ShuttleTainer / AZO MIXTAINER
