Automatic gummy production system for Cbd and vitamin gummies
Achieve high-speed, continuous gummy production with precision molding and control, optimizing CBD, THC, and vitamin gummy outputs while maintaining consistent quality.
Produces Gummy Candies at High Speeds

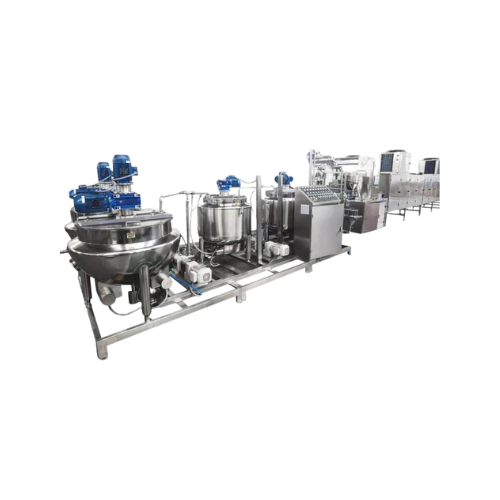

The G-150 High-Speed Gummy Production Line from SaintyCo revolutionizes gummy manufacturing by providing efficient, automated production of various gummy candies, including CBD, THC, and vitamin-infused options. Operating at speeds up to 60,000 gummies per hour, this line employs a sophisticated PLC control system and LED touch panel for precise operation and integration. Ideal for the food, confectionery, cannabis, and nutraceutical industries, the system boasts a production capacity of 150 kg/h, supporting high-volume outputs while maintaining quality. With a complete molding, mixing, control, cooling, and packing process, it integrates seamlessly into existing production lines. The G-150’s energy efficiency and compliance with industry standards ensure it meets the rigorous demands of modern manufacturing environments. Designed for ease of maintenance, it is adaptable to specific production needs.
Benefits
- Streamlines production with rapid output of up to 60,000 gummies per hour.
- Enhances precision and consistency through automated PLC controls and touch panel operation.
- Reduces operational costs with efficient energy consumption and minimal waste.
- Integrates smoothly into diverse production environments, serving multiple industries.
- Offers flexibility in product variation, accommodating a range of gummy types and ingredients.
- Applications
- Vitamin gummies, Snacks, Cbd gummies, Thc gummies, Sweets
- End products
- Thc-infused gummy worms, Multivitamin gummy rings, Fruit-flavored gummies, Vitamin c gummy squares, Cbd-infused gummy bears
- Steps before
- Formulation, Mixing, Heating
- Steps after
- Cooling, Cutting, Packaging
- Input ingredients
- CBD oil, THC extract, Vitamin extracts, Gummy base, Flavor additives, Color additives, Compressed air
- Output ingredients
- Gummy candies, CBD gummies, THC gummies, Vitamin gummies, Two-color gummies
- Market info
- Speed
- 60, 000 Gummies/hour
- Production Capacity
- 150 KG/h
- Power Supply
- 70kw/220V
- Compressed Air Consumption
- 0.3 0m3/min
- Compressed Air Pressure
- 0.4-0.6 Mpa
- Cooling System Temperature
- 20-25°C
- Humidity for Cooling System
- 55%
- Line Length
- 16 m
- Refrigeration Capacity
- 15, 000 kcal/h
- Control System
- PLC-controlled
- Control Panel Type
- LED touch panel
- Automation level
- PLC with LED touch panel
- Operation speed
- 60, 000 Gummies/hour
- Production capacity
- 150 KG/h
- Cooling requirements
- Optimal room temperature
- Humidity requirements
- 55%
- Compressed air pressure
- 0.4-0.6 Mpa
- Compressed air consumption
- 0.3 0m³/min
- Line length
- 16 m
- Gummy type compatibility
- CBD / THC / Vitamin Gummies
- Machine footprint
- Length
- Control panel type
- LED touch panel
- Control panel type
- LED touch panel
- Automation
- PLC-controlled
