Automatic granular product weighing system
Effortlessly achieve precise fills for dry granular products and powders while minimizing product damage and maximizing efficiency in your production line.
Weighs and Fills Granular Products

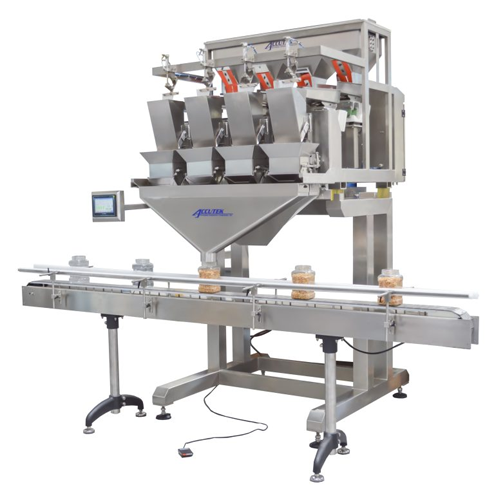

The Vibratory Weigh Filler from Accutek Packaging is an automatic folding machine designed for precision and efficiency in packaging dry granular products. Featuring a dual-channel design, it includes either two filling channels with a single fill head or four channels with dual heads for increased throughput. This machine utilizes vibrating delivery channels to gently transfer products, minimizing damage compared to auger systems. Ideal for applications ranging from food products like cornflakes and spices to pharmaceutical powder and industrial chemicals, it offers a weighing range of 10g to 3000g and operates at speeds up to 30 BPM with an accuracy of ±0.2-2g. The PLC touchscreen and tool-less sanitary contact parts ensure user-friendly operation and easy maintenance. Its construction in stainless steel enhances durability and corrosion resistance, making it suitable for various industrial environments. The system supports semi-automatic and automatic operations, and its modular design allows easy integration into existing production lines. It complies with industry standards for safety and hygiene, ensuring reliable performance for packaging companies.
Benefits
- Increases packaging accuracy, reducing product waste due to precise weighing.
- Minimizes product damage during handling with gentle vibratory channels.
- Enhances operational flexibility with both automatic and semi-automatic modes.
- Streamlines integration into production lines with modular design.
- Reduces maintenance time with tool-less sanitary contact parts.
- Applications
- Dry granular products,Snacks,Pet food,Nutraceuticals,Pharmaceutical powder,Minerals,Cereals,Industrial chemicals,Spices,Powders
- End products
- Muesli base flakes,Cinnamon powder,Cornflakes,Dog kibble,Potato chips,Cleaning powder,Protein powder,Aspirin tablets,Salt,Vitamin capsules
- Steps before
- Grinding,Purification
- Steps after
- Packing,Sealing,Labeling
- Input ingredients
- granular product,dry granular products
- Output ingredients
- weighed granular product,packaged dry products
- Market info
- Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.
- Weigh range
- 10g-3000g
- Speed
- 30 BPM
- Accuracy
- ±0.2-2g
- Hopper volume
- 3000ML
- Power Requirement
- 220V 50Hz Single phase
- Power
- 0.8KW
- Temperature
- -10 to 40℃
- Moisture
- 35 to 85%
- Machine weight
- 350KG
- Packing Dimension
- 61″ W,63″ D,102″ H
- Working Mechanism
- Vibratory channels for product delivery
- Automation Level
- Semi-auto / Automatic
- Batch vs. Continuous Operation
- Batch
- Changeover Time
- Tool-less sanitary contact parts
- Energy Efficiency
- 0.8 KW
- Cleaning Method
- Manual
- Precision Weighing
- Accuracy ±0.2-2g
- Product Flow Control
- Upper and lower level vibrators
- Abrasion resistance
- Yes
- Biological compatibility
- Yes
- Cleanability
- Tool-less sanitary contact parts
- Corrosive resistance (e.g. acids)
- Stainless steel contact parts
- Density/particle size
- Compatible with dry granular products
- Machine footprint
- 61″ W,63″ D,102″ H
- Machine weight
- 350KG
- Hopper volume
- 3000ML
- Feed/discharge method
- Vibratory channels to load cells
- Number of filling channels
- Two or four
- Material
- Stainless steel contact parts
- Control type
- PLC Touch Screen
- Control panel type
- PLC Touch Screen
- Discharge method
- Two or four filling channels
- Hopper configuration
- One product hopper per nozzle
- Weighing stations
- Four weighing stations feeding two nozzles or two weighing stations feeding a single nozzle
