Automatic filling and sealing solution for medium to large production
Streamline your high-capacity filling and sealing operations with this versatile solution, efficiently handling both liquid and solid products while ensuring superior integration with secondary packaging systems.
Seals and Fills Diverse Packaging Solutions

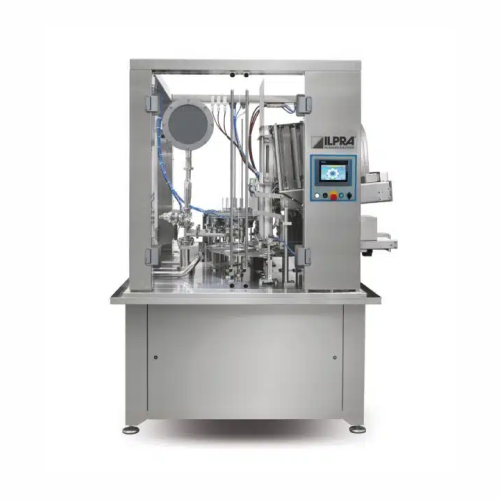

The Fill Seal 7000 from ILPRA Benelux is a high-capacity rotary filling and sealing system designed for diverse industrial applications ranging from food to healthcare packaging. This solution excels at managing multi-consistency dosing and sealing across plastic, paper, and aluminum containers, ensuring reliability in high-volume operations. Equipped with volumetric, timed, and weight-controlled dosing systems, it offers flexibility for various end-products like yogurt, pre-packaged meals, and medical blisters. The FS 7000 integrates seamlessly into production lines with its PLC control and brushless technology, ensuring precision and ease of use. Additionally, it supports CIP (Clean-In-Place) for maintenance efficiency and is compliant with industry standards, providing a clean and sterile packaging environment. Its unique features include an ultra-cleaning system with UVC options and automatic pick and place for container management, making it a robust choice for manufacturers aiming for high productivity and reliability.
Benefits
- Enhances production efficiency with its ability to handle multiple product consistencies and packaging materials seamlessly.
- Reduces maintenance time and potential contamination with the integrated Clean-In-Place (CIP) system.
- Increases operational flexibility with customizable dosing options tailored to diverse product requirements.
- Ensures sterile packaging environments with an ultra-cleaning system featuring UVC and hydrogen peroxide disinfection.
- Facilitates high-speed production without compromising precision, aiding businesses in meeting large-scale demand.
- Applications
- Sauces,Snacks,Cosmetics,Fish,Food packaging,Yogurt,Powders,Ready-made meals,Pet food,Fruits,Cold cuts,Flour-based products,Baby food,Meat,Dressings,Vegetables,Poultry,Medical,Dairy products
- End products
- Lasagna,Apple slices,Pre-sliced ham,Cheddar cheese slices,Dog kibble,Infant formula,Marinated chicken breast,Protein powder sachets,Salad dressing bottles,Greek yogurt,Hummus cups,Packaged salmon fillets,Surgical masks,Face cream,Blister packs for pills,Packaged pasta,Lip balm,Pre-cut carrot sticks
- Steps before
- Container preparation,Ingredient dosing,Lid placement
- Steps after
- Packaging,Sealing,Inkjet printing,Shrink wrapping,Ultra cleaning
- Input ingredients
- plastic containers,paper containers,aluminium containers,pre-filled containers
- Output ingredients
- sealed containers,packaged foods,lidded cups
- Market info
- ILPRA is known for manufacturing innovative packaging machines, specializing in tray sealers, thermoformers, and filling machines. They have a strong reputation for reliable and advanced technology catering to the food, medical, and industrial sectors.
- Dimensions
- 191 x 162 x h 232 cm
- Weight
- Circa 1050 Kg
- Electric Power (Lid)
- 8.5 kW
- Electric Power (Film)
- 8 kW
- Pots per Cycle
- 3
- Max Cups Lid Diameter
- 95 mm
- Max Cups Film Diameter
- 90 mm
- Max Height Cup
- 170 mm
- Automation
- Total Brushless,Panel Controlled
- Dosing Type
- Volumetric,Timed,Timed with Weight Control,Tray Dosing,Multi-head System
- Container Material Compatibility
- Plastic,Paper,Aluminium
- Sealing and Gas Flush
- Yes
- Clean-in-Place System
- Yes
- Ultra Cleaning System
- UVC lamps,Pulsed Light,Hydrogen Peroxide
- Storage Capacity and Autonomy
- High capacity with Automatic Feeding Belt
- Pick,Place Device
- Automatic Placement of Pre-filled Containers
- Laminar Flow Hood
- Microfiltered Air Flow
- Inkjet Printer
- Expiration Date,Production Lot Information
- Shrink System
- Installed on Output Belt
- Automation level
- Fully automated / Brushless
- Cleaning method
- Fully washable
- Batch vs. continuous operation
- Batch / Inline Continuous
- Multi-product dosing
- Multiple products with different consistencies
- Integration capability
- Highly integrable with secondary packaging systems
- Gas flush capability
- Yes
- Control system
- Panel managed
- Pick,Place
- Automatic placement of pre-filled containers
- Foreign material removal
- Air jet system
- Ultra cleaning system
- UVC lamps,pulsed light,hydrogen peroxide
- Laminar flow hood
- Microfiltered air flow
- Drive system
- Total brushless
- Dosers
- Volumetric,timed,timed with weight control,tray dosing
- Container deposit method
- Pick,Place system
- Plastic compatibility
- Yes
- Paper compatibility
- Yes
- Aluminium compatibility
- Yes
- Cleanability
- Yes
- CE marking
- Yes
- FDA compliance
- Potentially applicable for food packaging materials
- EHEDG certification
- Compliance with hygiene design principles for food-related equipment
- GMP Compliance
- Applies to packaging systems dealing with food,pharmaceuticals
- Machine Dimensions
- 191 x 162 x h 232 cm
- Machine Weight
- circa 1050 Kg
- Max Cup Diameter Lid
- 95 mm
- Max Cup Diameter Film
- 90 mm
- Max Cup Height
- 170 mm
- Control panel type
- Brushless interface
- Integration possibilities
- Secondary packaging systems
- Dosing options
- Volumetric,timed,multi-head
- Cleaning system
- CIP Clean-in-Place system
- Container capability
- Plastic,paper,aluminum
- Ultra Cleaning System
- UVC lamps,pulsed light,hydrogen peroxide
