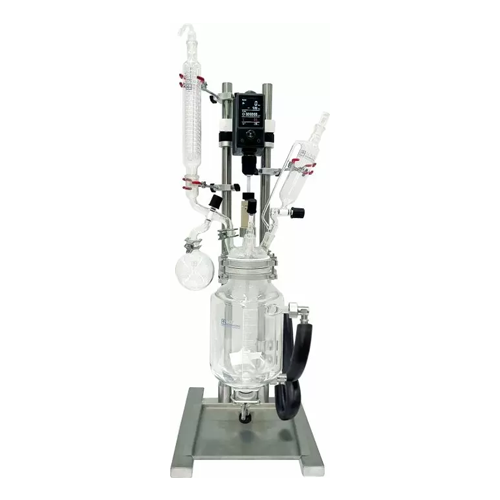

2l single jacketed glass reactor system
Enhance your laboratory’s efficiency with a versatile reactor system, ideal for precise temperature-controlled mixing, distillation, and chemical reactions, ensuring consistent quality in liquid and slurry formulations.
Controls Temperatures and Facilitates Chemical Reactions
The Ai 2L Single Jacketed Glass Reactor System is tailored for laboratories and industrial environments requiring precise chemical processing. Engineered with hand-made, food-grade high borosilicate glass, it ensures corrosion resistance and durability. This reactor facilitates mixing, heating, cooling, and distillation, ideal for producing monoclonal antibodies, essential oils, and more. It operates under a broad temperature range from -120℃ to 200℃, with a robust PTFE-stirrer designed for various viscosities. The system supports batch operations and integrates easily into R&D and production settings, offering manual control through a digital interface. Equipped with a large condenser, it excels in efficient solvent recovery. Compliance with industry standards ensures safe operation, while US-based support provides reliable maintenance and customization options.
Benefits
- Enhances process efficiency with precise temperature control and mixing capabilities.
- Reduces material costs through efficient solvent recovery via a large condenser.
- Ensures long-term reliability with corrosion-resistant, PTFE-sealed glass components.
- Facilitates varied production needs with flexible batch operation capacities.
- Promotes safety with user-focused design minimizing risks of chemical exposure.
- Applications
- Liquid formulations,Fine chemicals,Pharmaceuticals,Nutraceuticals,Biopharmaceuticals,Plant-based extracts,Essential oils
- End products
- Peptone-derived chemicals,Monoclonal antibodies,Cough syrups,Omega-3 supplements,Antiviral drugs,Lavender essential oil,Curcumin extracts
- Steps before
- Material Synthesis,Raw Material Feeding,Temperature Setting,Vacuum Setup
- Steps after
- Material Recovery,Cooling,Vacuum Release,Material Transfer
- Input ingredients
- materials for synthetic reactions,thermo fluid for jacket,solvent-resistant PTFE components
- Output ingredients
- recovered materials through condenser,processed synthetic compounds
- Market info
- Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.
- Reactor Vessel Capacity
- 2L / 5L
- Temperature Range
- -120℃ to 200℃
- Electrical Requirement
- 115V-230V,50/60Hz
- Power Output
- 70W / 130W
- Cooling/Heating Jacket Capacity
- 1.38L / 3.5L
- Maximum Jacket Pressure
- 0.08 MPa
- Vacuum Level
- 300 torr
- Agitator
- 4-blades with a 45-degree pitch
- Condenser
- Single-cooling coil design
- Drain Valve
- Zero dead space with a flat flange clamp
- Frame Dimensions (LxWxH)
- 17" x 18" x 45"
- Shipping Dimensions
- 24" x 20" x 55"
- Shipping Weight
- 140 lbs / 155 lbs
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Batch
- CIP/SIP
- CIP / Manual
- Cleaning method
- CIP / Manual
- Cleanability
- High borosilicate glass
- Corrosive resistance (e.g. acids)
- PTFE and borosilicate glass
- Glass material type
- Food grade high borosilicate
- Machine footprint
- 17" x 18" x 48"
- Machine footprint
- 24" x 20" x 55" (Shipping)
- Reaction Vessel Shape
- 2L Single Jacketed Glass
- Reaction Vessel Shape
- 5L Single Jacketed Glass
- Frame Dimensions
- 17" x 18" x 45"
- Shipping Weight
- 140 lbs.
- Vessel Head
- Domed with 5 ports
- Power option
- 115V 50/60Hz,220V 50/60Hz
- Vacuum setup
- 3/8" hose barb with no pump
- Vacuum setup with pump
- ULVAC DTC-41 110V 1.6 cfm diaphragm pump,Welch MPC 301 Z Chemical Resistant 1.4 CFM 8 Torr Oil Free Diaphragm Pump
- Glass reactor vessel
- Single jacketed (thermo fluid jacket),Additional single jacketed 5L vessel
- Chiller for top condenser
- No chiller,Ai SST -20°C To 99°C 7L Compact Recirculating Chiller
- Remove condenser and accompanying parts
- Replace with stopper
- Open and close valve
- Replace with stopper
- Addition funnel
- Replace with stopper
- Pt100 sensor
- Replace with stopper
- Stirring assembly
- Replace agitator,seal,and motor with stopper
- Delivery liftgate service
- Yes
