Industrial mixing equipment is used to combine two or more solid, liquid or gaseous segregated ingredients into a homogenous single product. The choice of mixing technology depends largely on the physical state of the ingredients and the desired final product. But the sensitivity of the ingredients, the process temperature, and pressure requirements are also critical factors. All these parameters result in a wide range of industrial mixers.

Mixing

Fondant

For the production of chocolate paste based on refined or icing sugar, the decision whether to use a mixer or a kneader depends on the fineness of the sugar.


<h2>Optimized mixers for chocolates pastes</h2>
The Thouet Mixer Type DMS &amp; Kneader Type DMK from Royal Duyvis Wiener are used in the production of chocolate paste based on refined or icing sugar. The mixing and kneading times, as well as the decision whether to use a mixer or a kneader depends on the fineness of the sugar.

If refined sugar is required, the DMS mixer is the perfect solution for mixing your ingredients into a homogeneous paste. On the other hand if finely ground icing-sugar is used in your recipe, a kneader from the DMK series will be your perfect solution, due to chocolate made with icing sugar is a highly viscous paste, which requires more energy during the mixing and kneading process.

Mixer and kneader for sugar based recipes

If you work with fat-based center masses and cremes, is your current aeration and crystallization machinery leading to more wastage and higher power consumption than it should? By changing to a revolutionary crystallization process that improves the mass quality and reduces complexity and cost you will see immediate benefits.


<h2>Save production time and reduce wastage with next-generation aerator and crystalliser</h2>
The Aasted SuperNova Orbit is able to crystallize fat-based masses to a near solid state which means direct transfer to open hoppers and extruders without any pre-cooling required. This saves production time and reduces wastage.

If the mass is also to be aerated then gas is injected in the middle of the crystallisation process which ensures it is fully and equally dispersed without the need for a traditional mixing head - this more simple design improves reliability and uptime. Gas injection can be switched on and off allowing the unit to be used for a wide range of fat-based masses, increasing flexibility.

SuperNova Orbit features a planetary action which ensures a constant scraper velocity throughout the unit resulting in a more homogenised product than traditional systems are able to deliver.

Available in up to 1,800kg/h versions, a wide range of options brings unparalleled flexibility to your production line. Options include flavour injection, piping, water system for piping, 16 bar mono pump and more.

Aerator for fat based masses and crème fillings

<span style="font-weight: 400;">For the best quality confectionary and bakery products, controllable and reliable mixing of doughs, fondants and creams is vital. Computerised planetary mixers offer the maximum flexibility and control, increasing product quality and efficiency across both single-product and flexible production environments.</span>


<h2>Unique planetary mixing solution with enhanced features</h2>
<span style="font-weight: 400;">Tonelli’s exclusive planetary mixing system is designed to offer maximum flexibility whilst delivering the highest quality results. By combining the use of one or two tools with a scraper in a fully customisable ratio, it provides the highest quality mix possible with complete control.</span>

<span style="font-weight: 400;">Tonelli’s heritage in design and manufacture of baking and confectionery equipment means that their vertical planetary mixers can work with a wide range of ingredients and product types, including options for automatic feeding of ingredients and dosing and a range of product transfer solutions to suit a wide range of bakery masses.</span>

<span style="font-weight: 400;">These mixers can be used for many products, including cookies, shortbreads and cake mixes, as well as creams, mousses and ganaches, all with the highest levels of control and mix quality.</span>

<span style="font-weight: 400;">Constructed of AISI 304 stainless steel throughout for easy cleaning, the vertical planetary mixer features a fully washable mixing environment that is safe for high pressure washing and can integrate with Clean In Place (CIP) circuits.</span>

<span style="font-weight: 400;">Over 20 mixing tools are available to suit a wide range of product, and they have been designed to be quick and easy to change, minimising downtime.</span>

Planetary mixer for confectionery and bakery production

<span style="font-weight: 400;">Batters, creams and other delicate sauces and emulsions take time to mix, reducing production efficiency. The technology employed by centrifugal mixers speeds up the production time of these products without impacting on quality. This improves throughput and increases return on investment.</span>


<h2>Flexible centrifugal mixer for fast production of lighter bakery and confectionery mixes</h2>
<span style="font-weight: 400;">The Tonelli Centrifugal Mixer-MU has been designed specifically for the high efficiency production of batters for cakes, meringue premixes, and the homogenization and mixing of creams, sauces and mayonnaises.</span>

<span style="font-weight: 400;">Centrifugal mixing technology allows for thorough mixing or emulsifying at much higher speed than traditional mixers without compromising on quality.</span>

<span style="font-weight: 400;">Suitable for a wide range of production environments, the Centrifugal Mixer-MU has a variable operating capacity from as little as 10kg up to 400kg. This makes it extremely flexible as well as providing the ability to increase capacity as future production volumes grow, removing the need to acquire new machinery.</span>

<span style="font-weight: 400;">Centrifugal Mixer-MU has a range of ingredient loading options, including manual load, volumetric and pump dosing, as well as loading cell scales.</span>

<span style="font-weight: 400;">Adding even more versatility the Centrifugal Mixer-MU can also be used as a scraps mixer, improving the return on investment even further.</span>

Centrifugal mixer for batters and creams

<span style="font-weight: 400;">Aerated products can be difficult to mix thoroughly without reducing the volume of air in the mixture, leading to inferior quality. By using a dedicated high specification mixer with precision control of temperature and air/nitrogen injection, the highest product quality can be achieved in products like ganaches, mousses, creams and marshmallows.</span>


<h2>Continuous aerating mixer for increased product volume and improved structure</h2>

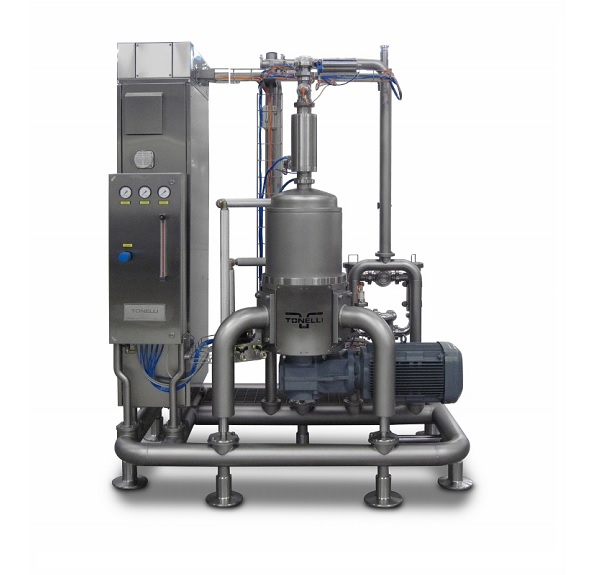

<span style="font-weight: 400;">The Tonelli Continuous Aerating Mixer - CAM is precision-engineered to increase the quality of aerated product mixes through it’s new features.</span>

<span style="font-weight: 400;">The vertical construction allows for optimal feeding into the aeration head, whilst the mixing heads can be easily swapped out to ensure the optimum size for each product type.</span>

<span style="font-weight: 400;">The mixing stator is fully jacketed, allowing for precise temperature control and therefore product quality via forced water cooling.</span>

<span style="font-weight: 400;">For high strength and maximum hygiene, mixing rotors and stator are machined from solid stainless steel, with no joints or welds. As well as ease of cleaning, this construction offers the maximum strength for long component life and minimal maintenance downtime.</span>

<span style="font-weight: 400;">Advanced control features of the Tonelli CAM allow for the production of complex or specialist products. For example, liquid ingredients can be injected straight into the aerating head, or liquids or solids can be injected downstream with no impact on the aeration quality (for example,food colourings, jellies, etc). CAM has also been designed to allow highly accurate control of air/nitrogen injection and product temperature, giving you complete control over product quality.</span>

Mixer for aeration of confectionery and bakery products

<span style="font-weight: 400;">The production of creams, sauces, ragouts, ready-to-bake, and similar products require combinations of mixing, heating and cooling, necessitating several pieces of equipment. By combining temperature treatments and mixing processes in one machine, cost can be reduced and efficiency increased, all while maintaining excellent product quality.</span>


<h2>Combined mixing and thermal treatment system for a wide range of products</h2>

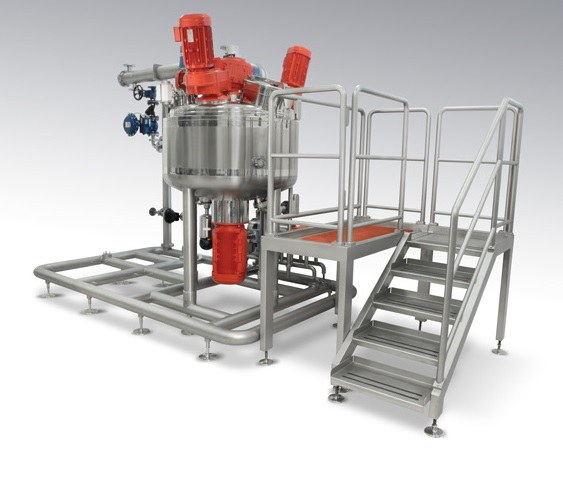

<span style="font-weight: 400;">Tonelli has used it’s well-known industry experience to bring together cutting-edge mixing and thermal treatment processes in one unit - the Tonelli CombiTherMix.</span>

<span style="font-weight: 400;">The CombiTherMix features a centrifugal homogenizer that offers 3 different types of rotating impeller, allowing you to achieve the optimal results for your product.</span>

<span style="font-weight: 400;">Integral scrapers and interchangeable mixing tools make this a fully flexible machine able to handle recipes from delicate sauces to hearty ragouts, or robust pâtés.</span>

<span style="font-weight: 400;">The CombiTherMix features a host of cooking options including saturated steam, food-grade steam injection, and hard vacuum treatments. For cooling and freezing it has the facility to use pumped iced water or liquid nitrogen. All are available in the same single unit, saving you money over having multiple production equipment.</span>

<span style="font-weight: 400;">Featuring an aseptic discharge valve for hygiene, the CombiTherMix is constructed of stainless steel for easy cleaning and hygienic practice. </span>

Temperature-treatment mixer for bakery &amp; gastronomy

Find production technology for Fondant mixing, and connect directly with leading machine manufacturers worldwide

Fondant mixing

Which fondant mixing equipment do you need?

Mixer and kneader for sugar based recipes

Aerator for fat based masses and crème fillings

Planetary mixer for confectionery and bakery production

Centrifugal mixer for batters and creams

Mixer for aeration of confectionery and bakery products

Temperature-treatment mixer for bakery & gastronomy

There is currently no equipment listed with your specified properties, but we are sure we can help you. Try us!Contact us
