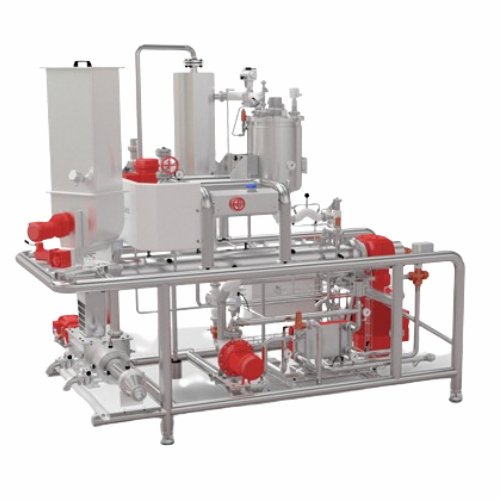

Continuous production fondant beater

Achieve consistent fondant quality by gently controlling crystallization and temperature in continuous production, ensuring even crystal distribution for high-quality confectionery outcomes.

Produces Consistent High-Quality Fondant Masses

The HFD III from Hänsel Processing is an advanced continuous fondant beater designed for confectionery production lines. Its modular concept accommodates production capacities ranging from 50 to 4000 kg/h, making it versatile for varying operational demands. This equipment excels in producing high-quality fondant by gently oversaturating the sugar solution and controlling the rotor and stator temperature to prevent uncontrolled crystallization. Its flow-optimized design ensures a uniform crystal spectrum, vital for impeccable fondant texture. Commonly used in food, confectionery, and candy manufacturing, the HFD III supports applications from sugar fondant to medicinal lozenges. Typically integrated with CROSSFLOW® or ROTAMAT® cookers, it offers high-speed, continuous processing suitable for liquid and slurry types. Options include stainless steel construction for enhanced corrosion resistance, and it’s engineered for easy integration into existing production systems.

Benefits

  • Ensures consistent fondant quality, crucial for superior candy texture and uniformity.
  • Adapts to production demands with modular capacity options from 50 to 4000 kg/h.
  • Minimizes crystal formation issues due to precise temperature control and flow optimization.
  • Integrates seamlessly into existing lines, enhancing production efficiency.
  • Offers robust material options for durability in demanding production environments.

General


Applications
Jelly,Otc supplements,Nutraceuticals,Fondant,Toffees,Bars,Hard candy,Torrone,Chewy candies,Eclairs,Fruit gummies
End products
Nougat bars,Gummy bears,Medicinal lozenges,Hard toffee candies,Eclair cream filling,Jelly beans,Sugar fondant,Fruit chews,Marzipan
Steps before
Cooking,Sugar solution preparation,Temperature control
Steps after
Cooling,Crystal formation stabilization,Fondant shaping,Packaging
Input ingredients
sugar solution,water
Output ingredients
fondant mass,high-quality fondant,even crystal spectrum fondant
Market info
Haensel-Processing is known for its expertise in developing and manufacturing high-quality engineered-to-order equipment for the confectionery industry, offering innovative solutions and customized machinery that enhance production efficiency and product quality.

Technical Specifications


Capacity
50–4000 kg/h
Cooling control
Temperature-controlled
Modular concept
Yes

Operating Characteristics


Batch vs. continuous operation
Inline Continuous
Automation level
High (PLC or SCADA)
Changeover time
Minimal due to continuous process

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact design
Size range
50 - 4000 kg/h output capacity
Cooling system
Temperature-controlled cooling
Rotor and stator design
Flow-optimized
Modular concept
Adaptable for different needs
Discharge method
Continuous output

Custom Options


Modular design
Available
Machine sizes
Multiple sizes available
Control panel type
Available
Integration with cookers
CROSSFLOW® / ROTAMAT®
