Waxing station for confectionery products

Optimize your product’s final presentation and quality by applying a precise coating of wax or oil, ensuring exceptional moisture retention and preventing sticking during packaging.

Applies Protective Coatings and Temperature Control

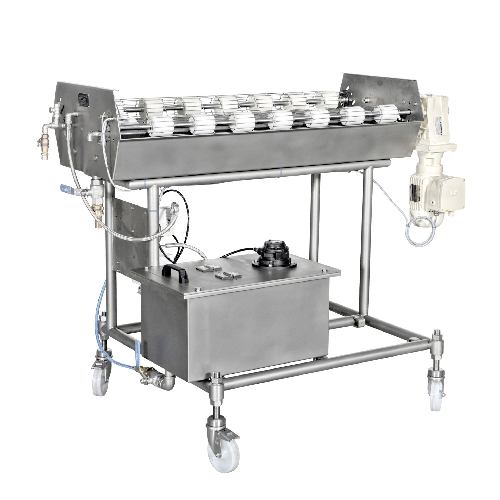

The Waxing Station from Extrugroup is a key component in the final conditioning stage for confectionery and pet food manufacturing. This equipment efficiently applies wax or oil coatings to products such as gummy candies, licorice sticks, and pet treat chews, enhancing their presentation and preventing adhesion. With its jacketed system for precise temperature control, the station maintains optimal coating conditions via circulating water. Positioned before the main cooling tunnel in extrusion lines, it seamlessly integrates into continuous production, occupying minimal space and offering easy bypass for non-coated products. Various grooved guiding rollers ensure tailored application for different product profiles. Configurable with your process needs, the Waxing Station supports scalability and customization, making it an ideal choice for producers aiming for consistency and quality in their end-products.

Benefits

  • Enhances product visual appeal and prevents sticking, improving consumer satisfaction.
  • Maintains optimal coating conditions with precise temperature control, ensuring consistent quality.
  • Integrates seamlessly into existing production lines with minimal space requirements, enhancing operational efficiency.
  • Allows for versatile product handling with customizable guiding rollers for various profiles.
  • Supports continuous operation with easy bypass for non-coated products, maximizing production flexibility.

General


Applications
Snacks,Confectionery,Sweets,Plastics,Pet snacks
End products
Licorice sticks,Fruit snacks,Soft plastic tubes,Caramel candies,Granola bars,Gummy candies,Chocolate-coated nuts,Pet treat chews
Steps before
Extrusion,Production Line Setup
Steps after
Cooling,Conditioning,Packing
Input ingredients
product for enhancement,wax,oil
Output ingredients
enhanced product,non-sticky product,moisture-retained product
Market info
Extrufood is known for manufacturing custom-engineered food extrusion equipment, particularly in the confectionery sector. They excel in designing machinery tailored to specific client needs, emphasizing innovation, quality, and efficiency in the production process.

Technical Specifications


Waxing/Oiling Type
Wax/Oil application
Position in Production Line
Before main cooling tunnel
Bypass Option
Yes
Temperature Control
Circulating water for heating/cooling
Roller Type
Grooved guiding rollers
Footprint
Minimal space required

Operating Characteristics


Coating method
Waxing/Oiling
Position in production line
Before cooling tunnel
Bypass capability
Yes
Temperature control
Water jacketed
Automation level
Adjustable with guiding rollers

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
Low to Medium
Heat sensitivity
Variable
Container type
Smooth surface required

Physical Characteristics


Machine footprint
Compact
Cooling/heating method
Water-jacketed
Roller type
Grooved guiding rollers

Custom Options


By-pass capability
Yes
