Water temperature control unit for production applications

Enhance your production efficiency by precisely managing water temperature for critical processes, ensuring optimal heat transfer and consistent quality across applications like injection molding and die casting.

Controls and Regulates Water Temperature

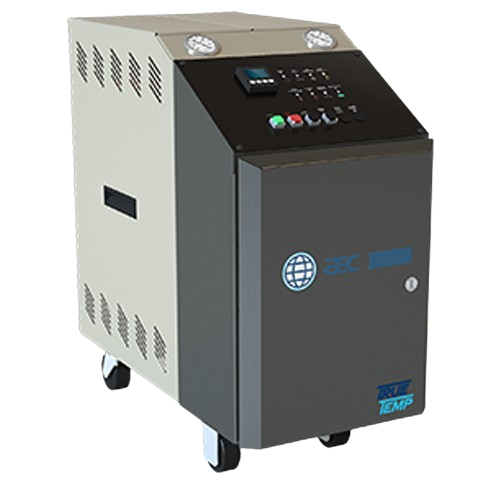

The TrueTemp® TC120 Series from AEC offers a water temperature control solution excelling in precision and reliability. It employs an innovative design that enhances heat transfer efficiency through turbulent water flow. Ideal for various applications, including plastic processing, food and beverage, and pharmaceutical manufacturing, the unit maintains temperatures within a 1°F variance to ensure consistent quality in end-products like automotive parts and bottled beverages. Featuring a high flow pump, the TC120 operates within a setpoint range of 32°F to 250°F, integrating seamlessly into your production line with its robust NEMA 12 design. With options for customization, such as controller choices and heater capacities up to 24 kW, this unit is built to handle rigorous industrial environments. It supports efficient cleaning and maintenance with easy-access panels and programmable auto vent sequences. Designed for high performance, it operates up to 300°F, includes silicon carbide seals for enhanced pump life, and conforms to safety standards with features like a pressure relief valve and integrated cooling solenoid valves.

Benefits

  • Enhances production accuracy with precise temperature control within 1°F.
  • Increases operational efficiency with high flow rates at lower pressures.
  • Simplifies maintenance through compact design and easy-access panels.
  • Adapts seamlessly to various industries with customizable options.
  • Extends equipment lifespan with durable construction and robust safety features.

General


Applications
Blow molding,Chemical processing,Plastic processing,Extrusion,Food and beverage processing,Pharmaceutical manufacturing,Thermoforming,Die casting,Injection molding
End products
Plastic bottles,Bottled beverages,Plastic sheets,Chemical compounds,Medicinal tablets,Aluminum components,Food packaging,Dairy products,Automotive parts
Steps before
Heating,Material Handling,Conveying
Steps after
Cooling,Packaging,Quality Control
Input ingredients
water supply,temperature-controlled water
Output ingredients
heated water,cooled water,turbulent water flow
Market info
AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.

Technical Specifications


Temperature range
32°F to 250°F (0°C to 121°C)
Temperature control accuracy
±1°F
Heater options
9kW,12kW,18kW,or 24kW
Pressure relief valve
150 psig (10.3 bars)
Water supply connection
0.75”
Process connections
1.5”
Pressure switch
16 psig (1.1 bar)
Operational pressure
55 psig (379 kPa/3.8 bar) for 300°F (149°C) operations
Cooling medium
Water
Pump seal material
SICB/carbon,silicon carbide
Heater type
Dual circuit immersion heater with IEC contactors
Heat exchanger type
Closed loop
Control type
PID temperature controller

Operating Characteristics


Working Mechanism
Turbulent water flow for heat transfer
Temperature Range
32°F to 250°F (0°C to 121°C)
Temperature Control Accuracy
Maintain within 1°F of setpoint
Automation Level
Programmable auto vent sequence
Pressure Relief
150 psig (10.3 bars)
Batch vs. Continuous Operation
Continuous
Energy Efficiency
High-efficiency pumps

Material Compatibility


Abrasion resistance
High


NEMA Standards
NEMA 12

Physical Characteristics


Compact footprint
Compact design with easy-access side panels
Control panel type
Graphic control panel with indicator and warning status lights
Discharge method
Forward-facing liquid-filled To and From Process pressure gauges
Tank connections
0.75” water supply connection,1.5” process connections
Valve size matches drain size

Custom Options


Control panel type
Operator friendly PID temperature controller
Compact design
Easy-access side panels
Heater options
9kW,12 kW,18 kW,24 kW
Controller options
Standard Eurotherm,M2C Option
Customization
Full list of features,options
