Volumetric auger for powder weighing and depositing
Ensure precise powder weighing and depositing for consistent product quality in your production line, enhancing efficiency and reducing material waste across a range of applications.
Weighs and Deposits Powders Accurately

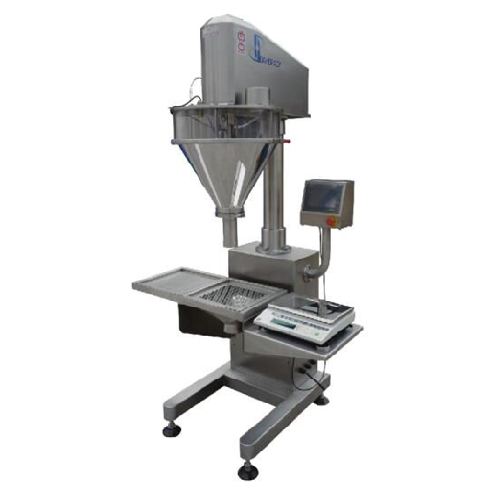

The Volumetric Auger DH-B2-1L from The Food Machinery Company is engineered to precisely handle the weighing and depositing of a wide range of powders, such as protein supplements, turmeric, and baking ingredients. This auger filler utilizes a simple foot-pedal operation to initiate filling, ensuring easy handling and integration into your packaging system or as a standalone unit. Capable of processing 10 to 30 units per minute, the machine supports fill weights ranging from 1 to 500 grams. Designed for the food, pharmaceutical, and chemical industries, it features a 25-liter hopper and a compact design (800 × 790 × 1900 mm), ensuring efficient use of floor space. With a total power consumption of 0.93 KW, it operates efficiently within production lines. Constructed for durability and compliance with industry standards, it offers reliable performance with minimal maintenance requirements. Customization options and technical support can be provided to tailor the machine to your specific production needs.
Benefits
- Enhances production accuracy by consistently weighing and depositing precise powder quantities.
- Facilitates easy integration into existing systems, reducing setup time and costs.
- Supports a wide range of applications, increasing versatility in production lines.
- Operates efficiently with low power consumption, reducing overall energy costs.
- Compact design optimizes floor space, enabling efficient workspace utilization.
- Applications
- Chemicals,Nutraceuticals,Pharmaceutical powder,Baking ingredients,Food processing,Spices,Powders,Industrial powders
- End products
- Turmeric powder,Detergent powder,Vitamin supplements,Flour,Protein powder,Baking soda,Talcum powder,Paracetamol powder
- Steps before
- Purification,Drying,Emulsification,Grinding
- Steps after
- Packing,Packaging
- Input ingredients
- powders,bulk powders,fine granules
- Output ingredients
- measured powder quantities,filled containers,packaged powder units
- Market info
- The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.
- Hopper Volume
- 25 L
- Fill Weight
- 1-500 g
- Fill Rate
- 10-30 Units per min
- Total Power
- 0.93 KW
- Total Weight
- 130 kg
- Machine Size
- 800 × 790 × 1900 mm
- Working mechanism
- Volumetric auger
- Operator interaction
- Foot pedal
- Automation level
- PLC-controlled
- Batch vs. continuous operation
- Batch
- Changeover time
- Fast setup
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine Footprint
- 800 × 790 mm
- Machine Height
- 1900 mm
- Total Weight
- 130 kgs
- Hopper Volume
- 25 L
- Fill Weight Range
- 1-500 g
- Discharge Method
- Foot pedal activation
- Control panel type
- Customized operator-friendly software
- Integration possibilities
- Standalone or integration into packaging systems
- Foot pedal operation
- Manual start via foot pedal
