Vertical form fill seal packaging for high washdown environments

Ensure optimal packaging in demanding environments with a rugged, stainless steel solution engineered for high-pressure washdowns, maintaining performance without compromising hygiene standards.

Forms, Fills, and Seals Diverse Products

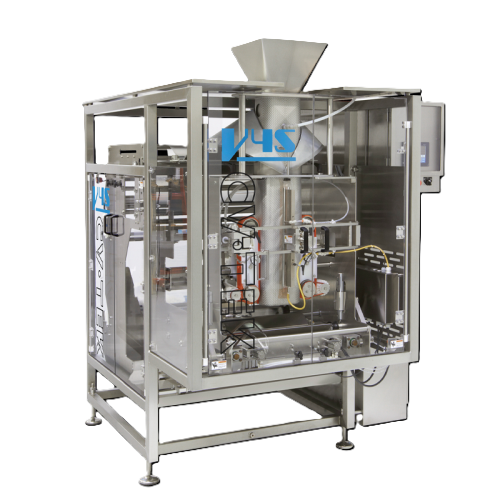

The V-45 VFFS from CV-TEK is engineered to withstand harsh environments, offering high versatility for a wide range of products including snacks, sauces, and detergents. Utilizing an intermittent motion system, it efficiently forms, fills, and seals packages with styles ranging from pillow to recloseable zipper. The machine features all-stainless steel construction, ensuring durability and compliance with USDA and FSMA regulations. Designed for rigorous washdown conditions, it supports up to 24-inch film rolls and includes a servo-driven vacuum belt for precise film handling. With options for pneumatic or servo jaw drives, the V-45 integrates seamlessly into existing production lines, maintaining energy efficiency and operational uptime. Its open frame design and sealed film rollers facilitate easy cleaning, while an optional stainless steel frame offers additional strength in caustic environments.

Benefits

  • Enhances uptime with robust, washdown-ready construction.
  • Increases operational flexibility with multiple packaging style options.
  • Minimizes energy costs through servo-driven efficiency.
  • Ensures compliance with USDA and FSMA standards.
  • Simplifies cleaning and maintenance with open-frame stainless steel design.

General


Applications
Sauces,Liquid formulations,Detergents,Snacks,Pet food,Nuts,Sweets,Cereals,Spices,Minerals
End products
Dog biscuits,Sodium chloride,Gummy bears,Laundry detergent pods,Cornflakes,Roasted almonds,Potato chips,Liquid soap,Ground cinnamon,Tomato sauce
Steps before
Film Preparation,Material Loading,Film Roll Installation
Steps after
Sealed Packaging,Product Conveyance,Final Packing
Input ingredients
Polyethylene films,Heat sealable co-ex films,Laminated films
Output ingredients
Pillow bags,Gusset bags,Flat bottom stand-up bags,K-seal bags,Reclosable zipper bags
Market info
CV-TEK (Middleby) is known for its expertise in designing and manufacturing modified atmosphere packaging (MAP) systems, offering innovative packaging solutions that enhance product shelf life and quality in the food processing industry.

Technical Specifications


Compliance
USDA,FSMA compliant
IP Rating
IP69 build-to,IP67 compliance
Frame Material
Stainless Steel
Washdown Capability
High temp high pressure caustic wash
Film Draw
Servo-driven vacuum belt
Seal Jaw Drive
Pneumatic or servo
Film Roll Diameter
Up to 24 inches
Packaging Style
Pillow,gusset,flat bottom,stand-up,recloseable zipper
Power Specifications
208-240 VAC/30 amperes,380-480 VAC/20 amperes,50/60 Hz
Air Requirements
80 psig (includes vacuum pump)
Operating Motion
Intermittent motion vertical bagging solution
Warranty
1-year warranty

Operating Characteristics


Working mechanism
Intermittent motion vertical bagging
Environment compatibility
Harsh washdown environments
Automation level
Servo driven
Cleaning capability
No need to cover components during washdown
Film draw method
Vacuum belt film draw driven by servo motor
Film type compatibility
Polyethylene or heat sealable co-ex and laminated films
Packaging style
Pillow,gusset,flat bottom stand-up,recloseable zipper

Material Compatibility


Corrosive resistance (e.g. acids)
Yes,stainless steel construction
Density/particle size
Supports various films like polyethylene and co-ex laminated

Product type Characteristics


Packaging Style
Pillow,Gusset,Flat Bottom,Stand-Up,Recloseable Zipper

Physical Characteristics


Frame Material
Stainless steel
Washdown Capability
IP69
Machine Footprint
Compact design
Film Roll Capacity
24-inch diameter
Frame Type
Open stainless steel frame
End Seal Jaws Material
Stainless steel
Control Box
User-friendly controls
Discharge Method
CV-TEK Discharge Conveyor

Custom Options


Frame construction
All-stainless steel
Frame option
Optional solid Stainless Steel bar-stock frame
Film handling
Shaft-driven film unwind
Sealing jaws
Stainless steel,completely sealed
