Vertical case packer for reusable and Rsc cases

Streamline your packaging line with versatile, high-speed case packing that seamlessly handles diverse product sizes and case types, optimizing your plant layout and minimizing downtime.

Packs, Loads, Seals, and Closes Cases Efficiently

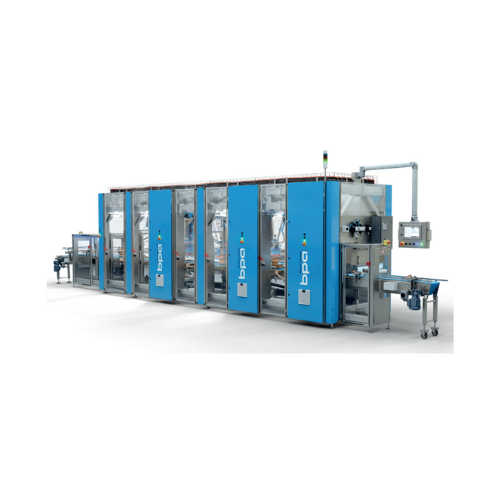

The Spider 200i Case Packer from Blueprint Automation is a sophisticated robotic case packing system that excels in vertical packing operations. It features an integrated RSC case erector and a top and bottom taper, making it ideal for industries such as confectionery, dairy, and pharmaceuticals. This system allows for efficient packing, loading, sealing, and closing of various case types, including RSC, reusable, and display cases, within the same production line. With a swift four-point changeover in under five minutes, it caters to versatile packaging needs, facilitating the handling of diverse product sizes.

The Spider 200i integrates seamlessly into high-speed, automated production environments, minimizing the footprint with its compact design. It incorporates advanced fault detection that triggers a relax mode to swiftly address any obstructions, thus reducing downtime. Optional automation features include a blank distribution and loading system to enhance safety by keeping the floor clear of corrugate. This equipment supports Direct Store Delivery and Centralized Distribution, offering flexibility for different supply channels while ensuring optimal plant layout.

Benefits

  • Enhances operational flexibility with quick changeover for multiple case types and product sizes.
  • Minimizes downtime through automatic fault detection and easy access for maintenance.
  • Optimizes production line space with a compact, all-in-one design.
  • Improves worker safety by integrating an optional system for removing corrugate from the floor.
  • Supports diverse distribution channels with configurations for both Direct Store Delivery and Centralized Distribution.

General


Applications
Personal care,Frozen,Snacks,Pet food,Protein,Confectionery,Bakery,Fresh produce,Dryfood,Pharma,Ice cream,Dairy
End products
Ice cream tubs,Chicken breast packages,Bread loaves,Frozen vegetables,Snack mixes,Vitamin bottles,Cheese packs,Chocolate bars,Granola,Fresh salad bags,Dog food cans,Shampoo bottles
Steps before
Primary Packaging,Product Collation,Product Sorting
Steps after
Shipping Container Loading,Direct Store Delivery,Centralized Distribution
Input ingredients
RSC cases,reusable cases,display cases,various product sizes,individual items,packaged products,product and package type
Output ingredients
secondary container,shipping container,vertically case packed products,sealed packages,RSC cases (tape),reusable cases,display cases
Market info
BluePrint Automation is known for designing and manufacturing innovative packaging automation systems, specializing in end-of-line robotic case packing solutions for various industries, enhancing operational efficiency and product handling with a strong reputation for quality and innovation.

Technical Specifications


Speed
High-speed
Capacity
Various product sizes
Case type
RSC and reusable cases
Changeover time
Under five minutes
Automation
Robotic,multi-axis
Functionality
Vertical case packing
Fault detection
Automated relax mode
Integration
Integrated with RSC case erector and taper

Operating Characteristics


Working mechanism
Vertical case packing
Integrated steps
Case erecting,packing,closing,sealing
Changeover time
Under five minutes
Adaptability
Handles RSC,reusable,and display cases
Automation level
High-speed collation,on-the-fly picking
Fault detection
Automatic relax mode for obstructions
Versatility
Various product sizes and case types

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product variety
Different product sizes
Case types
RSC,reusable,display cases
Pick,Placement
Vertical and horizontal
Supply Channels
Direct Store Delivery,Centralized Distribution

Physical Characteristics


Compact footprint
Yes
Control panel type
SCADA / PLC
Machine footprint
Compact
Footprint optimization
All-in-one system
Discharge method
Vertical case packing
Design accessibility
Open design for maintenance

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
PLC / SCADA / ERP systems
Compact footprint
Minimized space utilization
Discharge method
Vertical case packing
