Vacuum turboemulsifier for medium-scale production

Achieve precise emulsification and consistent quality in liquid and creamy formulations with advanced vacuum processing, ensuring your products meet rigorous standards in texture and stability.

Emulsifies, Mixes, Heats, and Cools Medium-Scale Batches

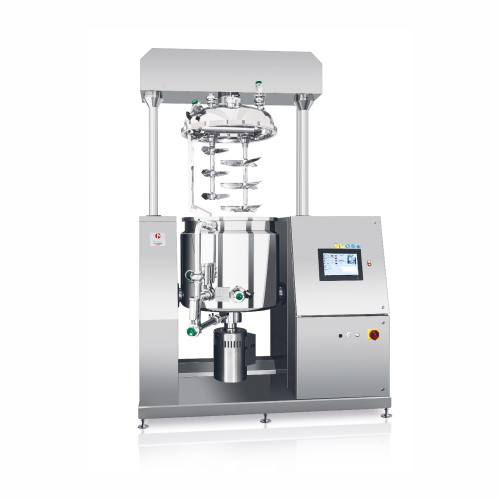

The TURBO-MEK 25 – 1000 Series from Marchesini Group is a versatile vacuum turboemulsifier designed for medium-scale production in the cosmetics and personal care sectors. Specializing in processing liquid and creamy products, this equipment ensures consistent emulsification and mixing through its advanced system of slow mixers with counter-rotating movement and optional double-planetary blades. With a capacity ranging from 25 to 1000 liters, it effectively handles a variety of applications, including moisturizing lotions, skin serums, and pharmaceutical syrups.

Equipped with a tilting, jacketed vessel for precise heating and cooling utilizing electric resistances or steam, the TURBO-MEK guarantees optimal thermal management throughout the production process. Its vacuum circuit allows for controlled processing conditions, while pressure-assisted vessel emptying facilitates efficient product transfer. The stainless steel construction ensures durability and resistance to corrosion, complemented by an optional full Atex certification for enhanced safety.

Automation is enhanced with a 12” touchscreen interface and optional D-connect for remote service, enabling easy integration into batch processing lines and reducing downtime. Incorporating inverter-regulated speed control on both the turbine and mixers, this equipment minimizes energy usage, contributing to an environmentally-friendly manufacturing process. Additionally, optional ancillary melters and CIP readiness provide further customization and maintenance benefits, ensuring that the TURBO-MEK 25 – 1000 Series meets diverse production needs with reliability and precision.

Benefits

  • Ensures consistent product quality with precise emulsification and mixing.
  • Optimizes energy efficiency with inverter-regulated motor speeds.
  • Enhances production flexibility with scalable capacity from 25 to 1000 liters.
  • Minimizes maintenance time with easy-to-clean stainless steel surfaces and optional CIP readiness.
  • Facilitates seamless integration and remote operation with D-connect and touchscreen control.

General


Applications
Liquid formulations,Creamy products
End products
Pharmaceutical syrups,Hair conditioners,Body creams,Cosmetic emulsions,Sunscreen lotions,Facial creams,Ointments,Liquid gels,Skin serums,Anti-aging creams,Moisturizing lotions,Cleansing milks
Steps before
Emulsification,Melting,Ingredient Preparation
Steps after
Container Labelling,Cartoning,Over-Wrapping,Casepacking,Palletising
Input ingredients
liquid products,creamy products
Output ingredients
processed liquid products,processed creamy products
Market info
Marchesini (Dumek) is renowned for designing and manufacturing advanced engineered-to-order equipment for the pharmaceutical and cosmetics industries, focusing on innovation, quality, and customization to meet specific client needs efficiently.

Technical Specifications


Capacity
25 - 1000 litres
Vessel Material
AISI 304 stainless steel
Heating Method
Electric resistances / Steam
Speed Regulation
Inverter-controlled
Touchscreen Size
12”
Vacuum Circuit
Yes
Turbine Position
Vessel bottom
Automation
D-connect for remote service
ATEX Certification
Optional
Vessel Heating
Through jacket

Operating Characteristics


Working mechanism
Vacuum turboemulsifier
Automation level
12” Touchscreen with D-connect and remote service
Batch vs. continuous operation
Batch
Lifting lid
Lifting lid mechanism
Tilting vessel
Tilting for easy emptying
Heating method
Electric resistances or steam
Cooling method
Vessel jacket with cooling
Mixing type
Turbine and slow mixer with counter-rotating movement
Vacuum circuit
Integrated vacuum system
Cleaning method
Set up for inside vessel washing (option)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Vessel shape
Cylindrical
Vessel size
25 - 1000 litres
Discharge method
Vessel emptying by pressure (option)
Tilting vessel
Yes
Material
AISI 304 stainless steel
Vessel jacket
For heating and cooling
Touchscreen size
12”
Customization options
Ancillary melters,double-planetary blades

Custom Options


Control panel type
12” Touchscreen
Integration possibilities
D-connect for remote service with App
Lid mechanism
Lifting lid
Vessel tilting
Tilting vessel
Speed control
Inverter regulated
Mixing options
Double-planetary blades
Heating options
Electric/Steam
Pressure emptying
Vessel emptying by pressure
Inside vessel washing
Set up for inside vessel washing
Certification
Full ATEX certification
