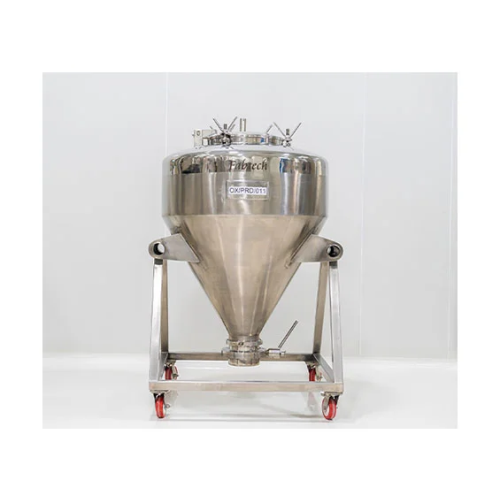

Vacuum transfer system for powders and granules

Effortlessly transfer and manage powders and granules with seamless integration, ensuring material consistency and hygiene while minimizing dust exposure in your production process.

Facilitates Material Transfer and Storage

Fabtech’s Ancillary Systems are engineered-to-order equipment designed to optimize material handling in pharmaceutical, biotech, and healthcare manufacturing. These systems—including In Process Containers (IPC), In Process Bulk Containers (IBC), Lifting & Tilting Devices (LTD), Lifting & Positioning Devices (LPD), and Vacuum Transfer Systems (VTS)—facilitate the transfer, storage, lifting, and positioning of powders, granules, and liquids. Each unit is customizable, constructed with SS 316/SS316L for optimal corrosion resistance, ensuring GMP and FDA compliance.

The IPCs and IBCs feature swivel wheels and locks for easy maneuverability and secure storage, while LPDs use hydraulic powerpack motors for precise positioning. The VTS provides dust-free transfer via an integrated filter system and is PLC-controlled for seamless integration into automated production lines. These systems meet the demands of high throughput environments, with the flexibility to be tailored according to specific bulk densities and particle sizes, and are equipped with WIP ports for quick and effective cleaning. Fabtech supports customization options, ensuring each system is engineered to suit the unique requirements of your production line.

Benefits

  • Streamlines material handling processes, enhancing operational efficiency and reducing manual labor.
  • Ensures GMP and FDA compliance, providing assurance for regulatory adherence in pharmaceutical production.
  • Customizable design allows for integration into diverse production lines without extensive modifications.
  • Stainless steel construction offers robust corrosion resistance, prolonging equipment life and maintaining hygiene.
  • Vacuum transfer capability minimizes dust and contamination, ensuring a safe and clean work environment.

General


Applications
Powder blends,Liquid formulations,Nutraceuticals,Granules,Biotech products,Healthcare products,Pharmaceuticals
End products
Biologics,Granular fertilizers,Protein powders,Vaccines,Injectable vials,Liquid medicines,Oral liquid dosages,Vitamin shots,Powdered drink mixes,Herbal extracts,Tablets,Syrups,Capsules,Probiotics,Dietary supplements
Steps before
Blending,Material Transfer,Material Storage
Steps after
Material Transfer,Packing,Coating
Input ingredients
powder,granules,materials
Output ingredients
blended materials,processed materials,stored materials,transferred materials
Market info

Technical Specifications


Material construction
SS 316/SS316L
Product contact finish
Mirror-finished
Non-contact finish
Matt-finished
Mobility
Swivel wheels
Safety features
Lock
Ventilation system
Vent filters
Cleaning ports
WIP ports
Lift system
Hydraulic powerpack motors
Automation
PLC-controlled
Operation interface
HMI
Integration
PLC

Operating Characteristics


Material transfer
Swivel wheels for mobility,lock for safety
System integration
PLC and HMI control
Powder and granule transfer
Vacuum system with dust-free operation
Safety features
Vent filters,WIP ports
Mobility
Swivel wheels
Customization options
Adaptable to various bulk densities and particle sizes
Batch processing
Efficient transfer and storage

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Pharmaceutical grade
Cleanability
CIP capable
Corrosive resistance (e.g. acids)
SS 316/SS316L construction
Density/particle size
Varies by application

Physical Characteristics


Material Construction
SS 316/SS316L
Surface Finish
Mirror-finished (contact),Matt-finished (non-contact)
Mobility
Swivel wheels
Safety Features
Lock for added safety
Customization
Available

Custom Options


Control panel type
HMI integration
Integration possibilities
PLC integration
Material type
SS 316/SS316L
Mobility features
Swivel wheels
Safety features
Locks for added safety
Customization level
Customisable design
Vacuum capabilities
Process vacuumisation
