Ultra-hygienic vacuum conveyor for pharmaceutical and food industries

Streamline material handling with this ultra-hygienic vacuum conveyor that efficiently transfers powders while minimizing contamination risk, ideal for high-purity production environments.

Conveys and Transfers Powders Efficiently

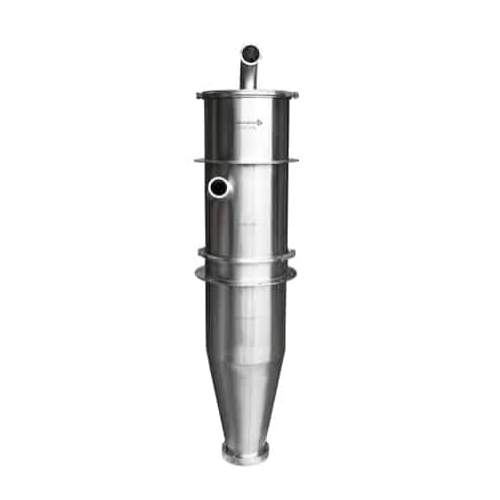

The Uni-Vac V-Series V100 from Hanningfield Process Systems is a vacuum conveyor system tailored for ultra-hygienic applications. Its seamless design features a rolled and seam welded hopper body, eliminating welds to reduce contamination risk, while supporting easy dismantling and cleaning with clamp assemblies. It efficiently handles powders across multiple industries, such as pharmaceuticals, food and beverage, and chemical production, delivering up to 4000 kgs/hr throughput. The V100 operates without compressed air, relying on an electric pump for air flow—a design that not only simplifies installation but also enhances energy efficiency. Its 316L stainless steel contact parts ensure excellent corrosion resistance, making it suitable for sensitive applications. Customization options allow adaptation to specific production requirements, such as variable hopper sizes and configurations. The V100 complies with GMP standards, aligning with stringent quality expectations in highly regulated sectors.

Benefits

  • Enhances production efficiency with high-speed, continuous powder conveying.
  • Lowers maintenance time and costs with a design that supports quick dismantling and cleaning.
  • Improves energy efficiency by eliminating the need for compressed air through electric pump operation.
  • Ensures product integrity and safety with a GMP-compliant, crevice-free design.
  • Adapts to specific production needs with customizable hopper configurations.

General


Applications
Nuclear,Nutraceuticals,Chemical,Food and beverage,Cannabis,Pharmaceuticals
End products
Cannabis oil,Protein powders,Pharmaceutical tablets,Chemical reagents,Beverage powders,Nuclear fuel pellets,Processed food additives,Dietary supplements
Steps before
Grinding,Drying,Milling,Weighing
Steps after
Mixing,Packaging,Tablet Pressing,Inspection
Input ingredients
powders,granules,bulk solids
Output ingredients
processed powders,transferred materials,conveyed products
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Maximum Throughput
4000 kgs/hr (9000 lbs/hr)
Contact Parts Material
316L stainless steel (1.4404)
Non-Contact Parts Material
304 stainless steel (1.4301)
Hopper Diameter
450mm (17.7")
Hopper Height
1700mm (67")
Hopper Capacity
100 litres
Standard Hose Diameter
2.5 / 3.0 inches
Automation
Electric pump for air flow generation

Operating Characteristics


Working mechanism
Vacuum transfer
Integrated steps
Suck-and-dump,direct loading
Batch vs. continuous operation
Batch/Inline
Automation level
Automated
Height adaptation
Adjustable hopper design
Cleaning method
Easy dismantling for cleaning

Material Compatibility


Cleanability
GMP design,crevice-free
Corrosive resistance (e.g. acids)
Contact parts 316L stainless steel

Physical Characteristics


Hopper Diameter
450mm (17.7")
Hopper Height
1700mm (67")
Hopper Capacity
100 litres
Standard Hose Diameter
2.5 / 3.0 inches
Shape
Rolled and seam welded hopper body
Footprint
Compact design for limited height spaces
Construction Material
316L stainless steel (contact),304 stainless steel (non-contact)
Mounting Type
In-line,gravity feed or vacuum transfer

Custom Options


Hopper body design
Rolled and seam welded
Customizable
Hopper size
Customizable to suit requirement
Disassembly method
Assembled using clamps for easy cleaning
