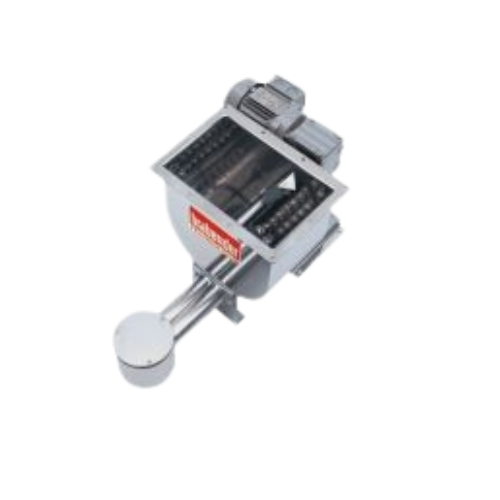

Twin screw volumetric feeder for poor flowing powders

Struggling with poor flowing or floodable powders? This twin screw feeder ensures consistent ingredient mass flow with precision stirring and adaptable screw configurations to meet your diverse production demands.

Ensures Consistent Dosing and Mixing of Powders

The Twin Screw Feeder with Stirring Agitator by Solids Process Solutions is designed for precise handling of poor-flowing or floodable powders. This feeder excels in industries ranging from aquafeed to pharmaceuticals, thanks to its volumetric feeding system that maintains a consistent mass flow of ingredients. It features a stainless steel hopper with a stirring agitator for reliable screw filling, while interchangeable screws and tubes allow for rapid adaptation to varying ingredients and feed rates. Equipped with separate motors for both the screw and agitator, this design ensures optimal control and performance. The feeder is easy to clean, facilitating seamless operation in demanding environments. The mechanical robustness combined with customizable options makes it a versatile choice for integrating into complex production lines.

Benefits

  • Ensures precise ingredient flow with high dosing accuracy.
  • Adapts quickly to changing production needs with interchangeable components.
  • Minimizes contamination risk with easy-to-clean design.
  • Enhances operational efficiency with separate, optimized motor controls.
  • Supports diverse applications across multiple industries for flexible use.

General


Applications
Chemicals,Food,Feed,Recycling,Fine chemicals,Nutrition,Detergents,Compounding,Pharma,Plastics,Minerals,Masterbatch,Aquafeed,Dairy,Petfood
End products
Powdered milk,Specialty chemicals,Dog kibble,Plastic additives,Dietary supplement tablets,Pet bottle flakes,Laundry detergent powder,Color masterbatches,Pharmaceutical granules,Cattle feed,Fish feed pellets,Baking mix powder,Compounded plastic pellets,Calcium carbonate powder,Polypropylene pellets
Steps before
Mixing,Grinding,Pre-Processing
Steps after
Packaging,Coating,Inspection
Input ingredients
poor flowing powders,floodable powders,ingredients
Output ingredients
consistent screwfilling,mass flow of ingredient
Market info

Technical Specifications


Dosing type
Volumetric
Material Flow
Poor flowing or floodable powders
Hopper Material
Stainless steel
Motor Type
3 phase AC gear motors
Screw and Agitator Motors
Separate
Cleaning Method
Easy and quickly cleanable
Screw Type
Interchangeable screws and screw tubes

Operating Characteristics


Working mechanism
Twin screw with stirring agitator
Automation level
Separate screw and agitator motors
Batch vs. continuous operation
Continuous
Changeover time
Quick adjustment of screws and tubes
Cleaning method
Easy and quickly cleanable design

Material Compatibility


Cleanability
Easy and quickly cleanable version available
Corrosive resistance (e.g. acids)
Stainless steel
Density/particle size
Volumetric feeder for poor flowing or floodable powders

Physical Characteristics


Tank shape
Stainless steel hopper
Discharge method
Screw feeder
Hopper material
Stainless steel
Agitator type
Stirring agitator
Interchangeable components
Screws and screw tubes

Custom Options


Screw type
Interchangeable screws
Agitator type
Stirring agitator
Material of construction
Stainless steel
Cleaning (hygienic design)
Easy and quickly cleanable
Motor type
Separate screw and agitator motors (3 phase AC gear motors)
