Top-loading delta robot automation solution
For high-speed operations requiring precise product handling, this top-loading solution offers seamless integration into production lines, ensuring effective packing and gripping even for challenging product geometries.
Handles, Grips, and Loads Varied Products

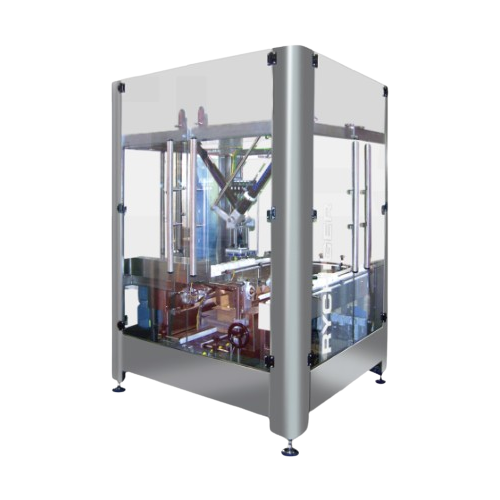

The NTL-50 from Rychiger is a sophisticated delta robot top-loading automation system engineered for high-speed, precise handling in diverse industrial applications. Featuring a compact design and optimized gripper technology, it efficiently deals with products that vary in geometry and weight—ideal for pharmaceutical, food, beverage, and industrial sectors. The NTL-50 excels in packing, gripping, conveying, and loading processes, with a remarkable throughput of up to 50 picks per minute or 3,000 picks per hour. Its small footprint (1.75 x 1.60 m) ensures seamless integration into existing production lines, whether as a standalone unit or part of a larger system. The machine uses robust and flexible gripping technology, easily adjustable tool-free for different product sizes, making it a versatile choice for various solid products like tablets, nutraceuticals, snacks, and pet food. Special attention is given to energy efficiency, employing advanced robotics that reduce energy consumption while maintaining high-speed operations. Designed with easy maintenance in mind, it features intuitive controls and modular components, supported by Rychiger’s comprehensive technical and customization services to meet specific production needs.
Benefits
- Enhances operational efficiency with high-speed, precise handling.
- Minimizes floor space usage due to compact design.
- Increases flexibility in packaging processes with tool-free size adjustments.
- Reduces energy costs using optimized robotics technology.
- Integrates seamlessly into various production lines, supporting diverse industries.
- Applications
- Supplements, Snacks, Pet food, Multi beverage, Home supplies, Coffee, Confectionary, Pharma, Janitorial supplies, Baby food, Tea, Dairy products
- End products
- Cat food pouches, Cheese slices, Dog kibble, Coffee pods, Tea bags, Nutraceuticals, Baby formula, Baby cereal, Gummies, Cleaning wipes, Popcorn, Potato chips, Yogurt cups, Chocolate bars, Protein powder, Tablets, Ground coffee, Detergent pods
- Steps before
- Conveying, Grouping
- Steps after
- Packing, Tray Packing, Case Packing, Cartoning
- Input ingredients
- containers, products, pharmaceutical items, pet food, snacks, confectionary, tea, coffee, food products
- Output ingredients
- packed cases, cartons, trays, bundled packages, conveyed products
- Market info
- Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.
- Pick Rate
- 50 picks/min
- Total Picks
- 3, 000 picks/h
- Footprint Size
- 1.75 x 1.60 m
- Machine Size
- 1.75 x 1.61 x 2.55 m
- Weight
- 900 kg
- Power Requirements
- 230 V/20A 60 Hz
- Air Requirements
- 90 PSI @ 10 CFM
- Integration Capability
- Standalone or Line Integration
- Changeover Process
- Tool-free
- Gripping Technology
- Vacuum and Mechanical
- Automation Level
- High-speed and Precision
- Footprint
- Compact 1.75 x 1.60 m
- Flexibility
- Handles Heavy Products
- Operational Speed
- 50 picks/min or 3, 000 picks/hour
- Abrasion resistance
- High
- Cleanability
- Easy to clean
- Biological compatibility
- Compliant
- Corrosive resistance (e.g. acids)
- Stainless steel components
- Product weight
- Handling of heavy products
- Product geometry
- Suitable for complex shapes
- Material handling
- Optimized for hard-to-handle items
- Gripper technology
- Vacuum and mechanical components
- Compact footprint
- 1.75 x 1.60 m
- Control panel type
- Intuitive use
- Discharge method
- Case, tray, container
- Size (LxWxH)
- 1.75 x 1.61 x 2.55 m
- Weight
- 900 kg
- Compact footprint
- 1.75m x 1.60m
- Gripper technology
- Vacuum and mechanical components
- Integration capabilities
- Standalone or integration into line concepts
- Switching between sizes
- Tool-free procedure
- Control panel type
- Intuitive use interface
