Thin chocolate shell forming

Create gourmet confections with precision by forming delicate chocolate shells, perfect for versatile fillings and intricate designs, enhancing both presentation and flavor.

Forms and Fills Thin Chocolate Shells

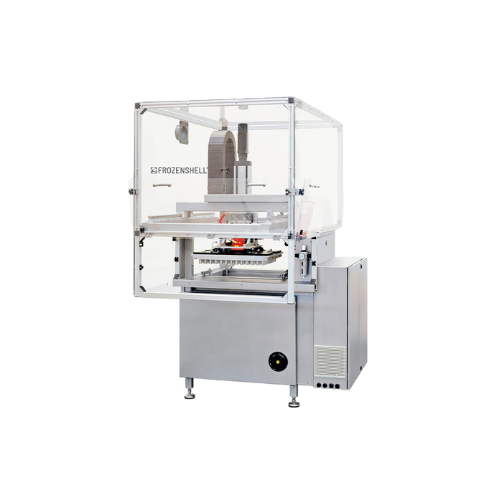

The FROZENSHELL® from CHOCOTECH GmbH is a specialized machine designed for the continuous forming and filling of thin chocolate shells, ideal for confectionery manufacturers producing pralines and gourmet chocolates. It operates by dipping low-temperature form stamps into tempered chocolate, determining shell height through dipping depth. The process continues as the stamp plate deposits the precisely aligned shells onto a transport belt, where they undergo slight cooling before filling with a variety of praline masses through additional downstream processes.

This machine excels in producing versatile chocolate forms, supporting various fillable gourmet chocolates and desserts. With three configurations available, it accommodates working widths of 420 mm, 620 mm, and 820 mm, achieving respective throughputs of 234, 364, and 612 pieces per minute, ensuring high-speed operation for demanding production environments.

FROZENSHELL® integrates seamlessly into existing production lines, with the ability for quick tool changes to produce diverse shapes and sizes. Its PLC-controlled systems enhance operational efficiency and precision. The machine is crafted for reliability, featuring stainless steel constructions tailored for the food industry, ensuring durability and ease of maintenance. This equipment streamlines chocolate production with its innovative approach and robust engineering support.

Benefits

  • Enhances production efficiency with high-speed forming and filling operations.
  • Offers flexible production with interchangeable forming tools for various shell shapes and sizes.
  • Reduces labor costs with automated processes and precise alignment through PLC-controlled systems.
  • Increases production capacity with options for up to 612 pieces per minute.
  • Ensures consistent product quality with precision-engineered chocolate shell forming.

General


Applications
Chocolate,Sweets,Pralines,Confections
End products
Gourmet chocolate confections,Thin chocolate shells,Chocolate cups for desserts,Assorted filled chocolates,Filled pralines
Steps before
Tempering,Cooling,Dissolving
Steps after
Filling,Decoration
Input ingredients
tempered chocolate,stamp plate,praline mass
Output ingredients
thin chocolate shells,filled chocolate shells,decorated chocolate shells
Market info
CHOCOTECH is known for providing innovative solutions in the confectionery industry, specializing in machinery for processing and manufacturing chocolate, candies, and other sweets, with a reputation for precision engineering and tailored, high-quality equipment solutions.

Technical Specifications


Working Width
420 mm
Production Rate
234 pc/min
Working Width
620 mm
Production Rate
364 pc/min
Working Width
820 mm
Production Rate
612 pc/min
Forming Method
Stamp dipping in tempered chocolate
Shell Cooling
Slight cooling on transport belt
Shape Customization
Interchangeable forming tools

Operating Characteristics


Working mechanism
Thin chocolate shell forming
Integrated steps
Forming,Cooling,Filling
Automation level
Manual / PLC
Batch vs. continuous operation
Batch
Changeover time
Tool plate exchangeable
Cleaning method
Manual

Material Compatibility


Biological compatibility
Food-grade materials
Cleanability
CIP compatible
Corrosive resistance (e.g. acids)
Stainless steel
Abrasion resistance
High durability
Temperature resistance
-10°C to 40°C
Density/particle size
Thin chocolate shells

Physical Characteristics


Forming tool plate size
420 mm,620 mm,820 mm
Discharge method
Transport belt
Shape and size customization
Interchangeable stamp plates
Cooling system
Slight cooling on transport belt

Custom Options


Forming tool interchangeability
Readily interchangeable
Stamp plate shapes
Various shapes and sizes
Depth of dipping
Adjustable for height and thickness
Chocolate shell height
Variable,based on dipping depth
Praline filling options
Creamy and free flowing fillings
Cooling integration
Built-in cooling on transport belt
Tool plate material
Frozen tools
Shell transport system
Aligned transport belt
