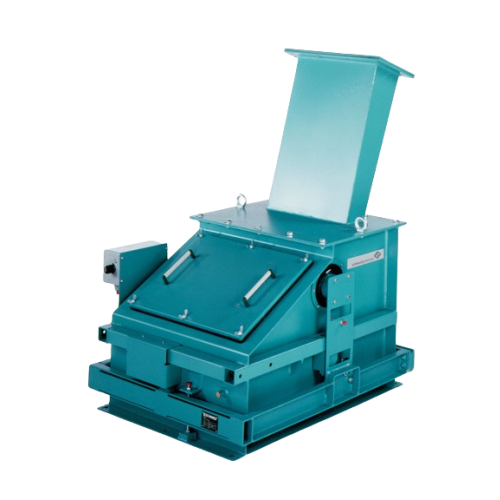

Solids flow meter for bulk solid streams
Ensure precise bulk material measurement with a system designed for accuracy and repeatability, handling diverse material sizes, even under high-temperature conditions.
Precisely Measures Continuous Bulk Solid Flow
The DLM Solids Flow Meter from Schenck Process is engineered to precisely measure bulk solid flow in continuous processing environments. Utilizing a non-impact force measurement through a gentle deflection chute, it ensures accurate data without the influence of varying impact factors. Ideal for industries such as chemicals, fertilizers, and biomass, it supports the production of end-products like polypropylene pellets and organic fertilizers. With a robust, dust-resistant design, the DLM operates efficiently even at high temperatures. The system integrates seamlessly with flow-controlled pre-feeders, evolving into a feeding system when required. Offering customization for specific applications, it meets the demands of challenging environments while maintaining high throughput and consistent measurement accuracy.
Benefits
- Ensures consistent product quality with accurate, reproducible flow measurements.
- Minimizes contamination risk with a dust-containing, robust design.
- Adapts to high-temperature operations, supporting versatile applications.
- Enhances production efficiency through seamless integration with feeding systems.
- Customizable configurations meet specific process needs, ensuring operational flexibility.
- Applications
- Sealants, Infrastructure, Masterbatch, Polyolefins, Catalysts, Home, Cement, Chemicals, Coke, Energy, Agrichemicals, Coal, Biomass, Batteries, Film, Personal care, Bioplastics, Compounds, Additives, Fertilizers, Recycling, Colorants, Paint, Coatings, Adhesives, Steelmaking
- End products
- Latex paint, Steel billets, Npk fertilizer granules, Wood pellets, Concrete blocks, Bio-based polymers, Epoxy additives, Organic fertilizers, Lithium-ion battery powder, Emulsion adhesives, Portland cement, Hand cream, Acrylic coatings, Polyurethane sealants, Polyethylene sheets, Ldpe films, Polypropylene pellets, Wind turbine blades, Nylon resins, Pigment dispersions, Shampoo base, Recycled plastic pellets, Color concentrates, Composite plastics, Metallurgical coke, Anthracite coal
- Steps before
- Purification, Grinding, Pre-feeder loading
- Steps after
- Batching, Mixing, Loading station charging
- Input ingredients
- bulk solids, grain flows, additives, raw meal
- Output ingredients
- throughput measurement, consumption measurement, batching, charging
- Market info
- Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.
- Measurement System
- Non-impact force measurement
- Accuracy
- High accuracy with reproducible data
- Material Compatibility
- Dust-containing design
- Automated Feeding System
- Flow-controlled pre-feeder
- Temperature Compatibility
- Designed for high-temperature materials
- Non-impact force measurement
- Yes
- In-line measurement
- Continuous
- Deflection chute design
- Yes
- Dust-containing design
- Yes
- Batch vs. continuous operation
- Continuous
- Feeding system capability
- Flow-controlled
- Application flexibility
- Hot materials capable
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Compact footprint
- Yes
- Discharge method
- In-line measuring chute
- Construction
- Robust
- Design
- Dust-containing
- Control panel type
- HMI / PLC
- Integration possibilities
- SCADA / remote monitoring
- Compact footprint
- Yes
- Dust-containing design
- Yes
- Flow-controlled pre-feeder integration
- Yes
- Special individual designs
- For hot materials
