Single-pot processor for wet granulation and vacuum drying

Achieve efficient mixing, granulation, and swift vacuum drying in a streamlined process, ensuring high-quality production of granules with reduced risk of material adherence and optimized moisture control.

Mixes, Granulates, and Dries in One System

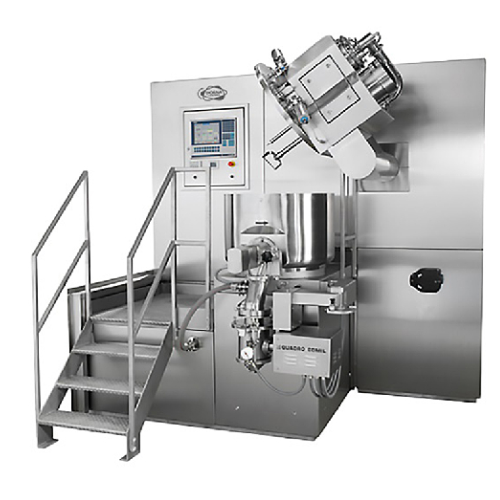

The VAC 150-1200 from DIOSNA is a robust single-pot processor engineered to streamline the mixing, granulation, and drying stages of production for pharmaceutical solids, cosmetics, and fine chemicals. Its dual-zone heating with a cylindrical mixing bowl and an efficient wall scraper ensures quick drying, even for adhesive products. The system operates under vacuum, with optional stripping gas distribution to augment drying efficiency. Suitable for production-scale operations, it accommodates diverse applications, including pharmaceutical tablets and cosmetic creams. The unit integrates seamlessly with an industrial PC, facilitating full automation and remote maintenance. It ensures compliance with 21 CFR Part 11 for quality assurance, while the CIP/WIP process allows effortless cleaning. Stainless steel construction provides durability and chemical compatibility, with customization options available for specific processing requirements.

Benefits

  • Enhances process efficiency with integrated mixing, granulation, and drying in one unit.
  • Achieves rapid drying of adhesive products, preventing production bottlenecks.
  • Reduces labor intervention through fully automated control and remote monitoring capabilities.
  • Ensures regulatory compliance with 21 CFR Part 11 standards.
  • Simplifies maintenance and cleans effortlessly with an integrated CIP/WIP system.

General


Applications
Food,Feed,Fine chemicals,Cosmetics,Pharmaceutical solids
End products
Powdered nutrients,Cosmetic creams,Granulated food additives,Pharmaceutical tablets,Nutrient powders for animal feed
Steps before
Pre-mixing,Pre-dough preparation
Steps after
Packing,Coating
Input ingredients
wet granules,adhesive products,components for mixing and drying
Output ingredients
dried granules,processed materials,dried adhesive products
Market info
Diosna is known for its expertise in manufacturing industrial dough mixing machines and systems, primarily for the bakery and food industries, showcasing a strong reputation for innovation, quality, and reliable engineered-to-order mixing solutions.

Technical Specifications


Automation
Industrial PC,21CFR Part 11 compliant
Heating Zones
Two (lid and container)
Mixing Tool Design
Scraper with wall wiping feature
Drying Method
Vacuum with drag gas addition
Cleaning Method
CIP/WIP process
Viewing Feature
Sight glass for process observation

Operating Characteristics


Automation level
Industrial PC,21CFR Part 11 compliant
Batch vs. continuous operation
Batch
CIP/SIP
CIP process
Cleaning method
CIP/WIP
Granulation process
Single-Pot
Heating zones
Two heating zones (lid and container)
Observation capability
Sight glass
Strip gas addition
Compressed air or nitrogen
Wall scraping
Tool equipped with scraper

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


21CFR Part 11 Compliance
Yes

Physical Characteristics


Mixing bowl shape
Cylindrical
Mixing bowl size
150-1200 Liters
Heating zones
Two (lid and container)
Feed/discharge method
Automated

Custom Options


Control panel type
Industrial PC,21CFR Part 11 compliant,with remote maintenance
Heating zones
Two heating zones (lid and container)
Integration possibilities
Fully automatic process control
Cleaning method
CIP/WIP process
Gas addition
Compressed air or nitrogen
