Simultaneous chocolate dosing solution

Achieve high-precision chocolate and ganache filling in a single step with this efficient dosing and dispensing solution, streamlining your confectionery production while ensuring consistent product quality and creativity.

Simultaneously Doses and Fills Chocolate Moulds

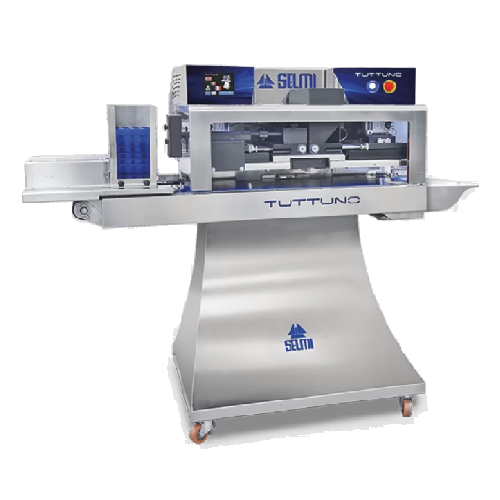

The One Shot Tuttuno 9 from Selmi Group revolutionizes chocolate production by offering precision in dosing and filling applications. This multi-nozzle machine integrates chocolate moulding and filling in a singular, efficient operation, ideal for creating diverse end products such as pralines, truffles, and layered chocolate bars. Its working principle involves a sophisticated, simultaneous injection system that crafts both the outer chocolate shell and its filling, optimizing production speed and uniformity. Capable of handling up to 360 moulds per hour, this equipment meets the demands of high-speed, continuous operations found in confectionery and industrial food production. The machine boasts a PLC-controlled interface for seamless integration into existing lines, ensuring that it fits within automated systems and offers remote monitoring capabilities. Constructed from high-quality materials to resist wear and facilitate easy cleaning, it includes options for customizing injection nozzles and mould sizes, supported by Selmi’s engineering expertise.

Benefits

  • Increases production efficiency by integrating dosing and filling into a single automated step.
  • Enhances product consistency with precision multi-nozzle injection.
  • Reduces labor requirements through PLC-controlled, continuous operation.
  • Adaptable to various mould sizes, supporting product diversity.
  • Facilitates easy cleaning and maintenance with high-quality, wear-resistant materials.

General


Applications
Pralines,Chocolate eggs,Chocolates,Chocolate coatings,Ganache fillings,Chocolate balls,Nuts,Chocolate bars,Spreadable creams,Hollow chocolate bodies,Truffles,Anhydrous pastes
End products
Chocolate-covered almonds,Assorted chocolate bars with layered fillings,Pralines with ganache center,Chocolate truffles with unique fillings,Almond anhydrous paste,Hollow chocolate santas,Easter chocolate eggs with soft fillings,Ganache-filled bonbons,Chocolate-coated biscuits,Hazelnut spread,Decorative chocolate balls
Steps before
Tempering,Mould Loading
Steps after
Cooling,Demoulding,Packing
Input ingredients
tempered chocolate,ganache fillings,tempering machine chocolate,polycarbonate moulds,compressed air,thermoregulated chocolate,chocolate fillings
Output ingredients
chocolate filled products,pralines,chocolate balls,chocolate eggs,outer chocolate jacket,chocolate products with special features
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Electrical specification
220 V single phase - 50/60 Hz
Power required
3.5 Kw - 16 A - 3 poles
Hourly production rate
Up to 360 moulds 275x175mm
Dimensions
h. 1550,w. 1670,d. 920 mm
Dimensions with Vibra
l. 3050
Compressed air requirement
80 lt/min - minimum 6 bar filtered,dry,oil-free
Nozzle count
9 injection nozzles
Belt width
400 mm
Tray size compatibility
400x600 mm trays
Mould capacity
Up to 6 moulds per minute

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Batch
Cleaning method
Manual
Compressed Air Requirement
80 lt/min - minimum 6 bar
Production capacity
Up to 6 moulds per minute
Working Mechanism
Simultaneous dosing and dispensing

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
h. 1550,w. 1670,d. 920 mm
Machine Footprint with Vibra
l. 3050 mm
Nozzle Count
9 injection nozzles
Belt Width
400 mm
Mould Size Compatibility
Up to 400x600 mm trays

Custom Options


Nozzle Configuration
8 or 9 nozzles
