Secondary packaging cartoner for ampoules and vials

Optimize your aseptic production with efficient high-capacity carton handling tailored for ampoules and vials, ensuring precise packaging alignment and integrity for streamlined pharmaceutical operations.

Packages Pharmaceuticals with Precision and Speed

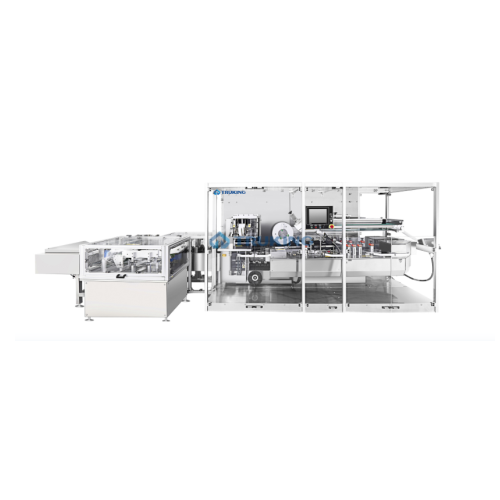

The TRUKING series Automatic Cartoner Machine is designed by Truking Technology to enhance the efficiency of pharmaceutical packaging lines. This versatile unit caters to a wide array of containers, including ampoules, vials, and BFS products, utilizing a state-of-the-art feeding system to ensure accuracy and reduce product damage. Its unique compact design incorporates rear cam pushers, which delicately handle cartons, and an automatic rejection system that discards incomplete packs efficiently. The cartoner supports high-speed operations with its industrial PC control, embracing features for audit trails and data integrity compliant with 21 CFR Part 11. The machine is engineered with German GUK automation for leaflet folding and includes inspection systems for precise code and print checks, ensuring it meets stringent GMP and FDA standards. Configuration options and bespoke engineering support are available to fit various production needs, facilitating seamless integration into existing lines.

Benefits

  • Enhances packaging precision, reducing the risk of product damage and waste.
  • Maximizes production efficiency with high-speed, automated operations.
  • Ensures regulatory compliance with GMP and 21 CFR Part 11 standards.
  • Facilitates easy integration into existing lines, minimizing downtime.
  • Supports flexible packaging options for diverse pharmaceutical products.

General


Applications
Solid preparations,Lyophilized products,Ampoules,Pre-filled syringes,Soft bags,Traditional chinese medicine,Injectables,Oral liquid formulations,Bfs products,Diagnostic reagents
End products
Glass ampoules for iv drugs,Freeze-dried vaccines,Cough syrup,Diagnostic test kits,Parenteral nutrition in soft bags,Herbal tinctures,Lyophilized antibiotics,Hormone therapy injectables,Cancer treatment injectables,Bfs saline solutions,Antibiotic tablets,Pre-filled heparin syringes
Steps before
Extraction,Concentration,Purification,Bioreactor System,Sanitary Vessels,Preparation System
Steps after
Sterilization,Washing,Inspection,Packaging,Labelling,Cartoning,Palletizing
Input ingredients
ampoules,vials,oral liquids,BFS,cartridge,blisters,leaflets
Output ingredients
packaged ampoules,packaged vials,packaged oral liquids,packaged BFS,packaged cartridges,packaged blisters
Market info
Truking is known for manufacturing engineered-to-order pharmaceutical equipment, specializing in liquid and solid preparation systems. They have a strong reputation for innovation and quality in the pharmaceutical machinery sector.

Technical Specifications


Automation
PLC-controlled
Carton feeding mechanism
Rear cam pushers
Inspection system
Leaflet insertion and product feeding checking
Rejection system
Automatic rejection of carton or leaflet missing product
Control system
Industrial PC control with features for Audit trail and data integrity
Compliance
21 CFR Part 11 compliance
Supported container types
Ampoules,vials,oral liquids,BFS,cartridge,blisters
Feeding system
State of art feeding system for single,combi,triple packs
Pusher entry in carton
Maximum of 5mm to avoid damage

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Ampoules / Vials / BFS / Soft Bag / Glass Bottle / Plastic Bottle
Filling purpose
Injectable / Oral Liquid / Diagnostic Reagents / Drops and Sprays
Packaging type
Blister / Carton / Case / Pallet
Production type
Ampoule / Pre-Filled Syringe / Lyophilization
Secondary packaging
Blister Machine / Cartoning Machine / Case Packer / Palletizer
Sterilization and washing
Autoclave / Washing Machine / Tool Washer
Traditional Medicine processing
Extraction / Concentration / Drying / Purification and Separation

Physical Characteristics


Control panel type
Industrial PC

Custom Options


Control panel type
Industrial PC
Integration possibilities
21 CFR Part 11 compliance
Automation
PLC-controlled
Compact design
Unique,high capacity
