Rotary tube selector valve for powder conveying

Streamline your pneumatic transport system with a robust solution that diverges and converges powder flow seamlessly, minimizing contamination risks with its stagnant-free design.

Diverts and Converges Powder and Pellet Flow

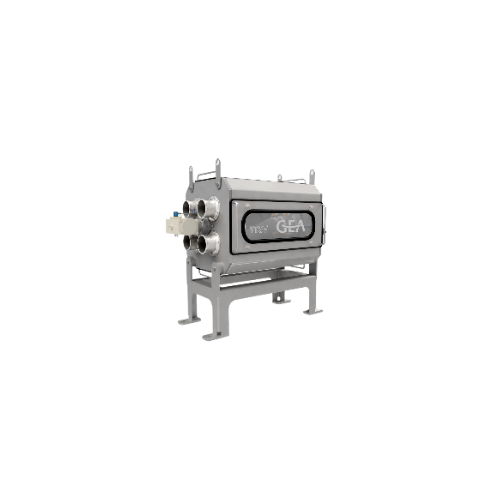

The GEA Rotary Tube Selector Valve (RTSV) is essential for efficient powder and pellet transport in industries ranging from pharmaceuticals to chemicals. This innovative valve optimizes pneumatic conveying by allowing precise diversion and convergence, reducing contamination risks with its dead-pocket-free design. Available in 2 to 6 port configurations with 75 to 150 mm tube sizes, it is constructed from 304L stainless steel for superior durability and compliance with EHEDGE and USDA/3A standards. The RTSV operates within dilute and dense phase systems and requires no Motor Control Centre, making it easy to integrate into your production line. Featuring full pneumatic operation and manual cleaning capability, it supports high-pressure and temperature applications, ensuring reliable performance in continuous operations. Customization options and GEA engineering support further enhance its versatility for diverse production needs.

Benefits

  • Enhances productivity by streamlining powder and pellet diversion with minimal footprint.
  • Lessens contamination risk with a dead-pocket-free design, ensuring batch purity.
  • Simplifies maintenance and cleaning with manual and pneumatic operation.
  • Offers flexibility with modular design and interchangeable parts.
  • Meets stringent safety and quality standards with FDA-compliant materials.

General


Applications
Food,Supplements,Chemicals,Personal care,Gas and energy,Pellets,Pharmaceutical powder,Beverage,Oil,Pharma,Environment,Healthcare,Powder handling,Home,New food,Dairy
End products
Protein powders,Biofuels,Pharmaceutical tablets,Detergents,Infant formula,Food flavorings,Vitamin supplements,Chemical compounds,Environmental purifiers,Skincare powders,Milk powder,Lubricants,Alternative proteins,Industrial chemicals,Seasoning blends,Pill coatings,Juice powder
Steps before
Grinding,Mixing,Drying
Steps after
Packing,Sterilization
Input ingredients
powders,pellets
Output ingredients
powders,pellets
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Diameter tube and pipe sizes
75–150 mm
Number of ports
2–6 port versions
Modular design
Interchangeable parts between models
Operation
Fully pneumatic
Cleaning method
Manually cleanable
Material
304L stainless steel

Operating Characteristics


Working mechanism
Pneumatic operation
Integrated steps
Diverge and converge flow paths
CIP/SIP
Manual cleaning
Batch vs. continuous operation
Batch and inline
Automation level
Fully pneumatic
Changeover time
Quick changeover
Cleaning method
Manual
Energy efficiency
Optimized for low wear

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Phase Systems
Dilute and Dense Phase

Physical Characteristics


Footprint
Compact
Port Configuration
2 to 6 ports
Pipe Diameter
75–150 mm (3" to 6")
Modular Design
Yes
Visibility
Four windows
Material
304L Stainless Steel
Dead Pocket Free
Yes
