Rotary jet mixer for efficient liquid, gas, and powder mixing

Achieve seamless integration and efficiency in liquid, gas, and powder processing with innovative rotary jet technology, expertly designed to optimize mixing, dispersion, deaeration, and tank cleaning while significantly reducing energy consumption and costs in your production line.

Mixes, Dispenses, and Cleans in Industrial Applications

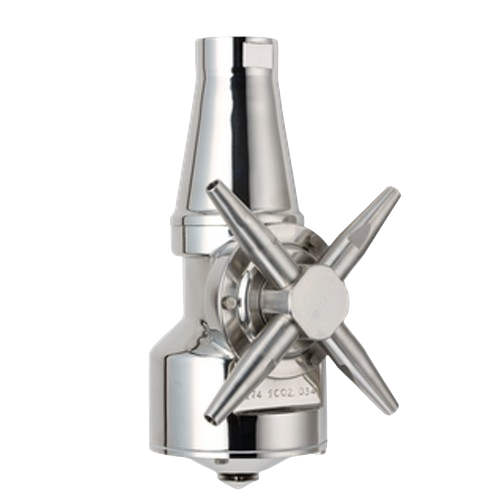

The Rotary Jet Mixer from Alfa Laval excels in mixing, dispersion, and cleaning applications across various industries such as dairy, food, beverage, and pharmaceuticals. Utilizing patented rotary jet head technology, this mixer performs efficient blending by rotating nozzles within tanks of up to 800,000 liters, enabling rapid and uniform mixing of liquids, gases, and powders. It supports multiple processes, including aeration, deaeration, and carbonation, while doubling as a reliable Cleaning-in-Place (CIP) system. The mixer’s design ensures energy and cost efficiency, with placements that reduce structural loads on tanks and ease retrofitting in existing setups. Energy-efficient operation is bolstered by optional skid-mounted pump units, which streamline installation and reduce the need for separate equipment. Whether it’s mixing craft beer, fruit-flavored drinks, or biopharmaceutical solutions, the Rotary Jet Mixer offers unmatched versatility and process integration, ensuring robust performance in challenging conditions.

Benefits

  • Increases productivity by reducing mixing time significantly.
  • Lowers operational costs by combining mixing and cleaning functions.
  • Enhances process flexibility across varying product viscosities and densities.
  • Minimizes structural loads, facilitating easy integration into existing tanks.
  • Conserves energy and resources with an efficient CIP system.

General


Applications
Food,Brewery,Biotechnology,Beverage,Healthcare,Liquid food products,Home and personal care,Soft drinks,Edible oil,Beer,Dairy,Pharmaceuticals
End products
Craft beer,Liquid detergent,Vaccines,Energy drinks,Lager,Edible oils,Nutraceuticals,Infant formula,Protein shakes,Skincare serums,Fruit-flavored drinks,Milk protein concentrates,Beer blends,Biopharmaceutical solutions,Yogurt,Carbonated soft drinks
Steps before
Purification,Filtration,Homogenization,Dissolution,Extraction
Steps after
Sterilization,Filling,Packaging,Labeling,Quality Control
Input ingredients
liquid,gas,powder,fruit pulp,flavours,aspartame,oxygen
Output ingredients
mixed liquids,aerated or deaerated products,carbonated beverages,extended shelf life products
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Mixing Capacity
100–800,000 liters
Re-circulation Flow Rate
Up to 90 m3/h
Tank Size Compatibility
100–800,000 liters
Pump Power
7.5 kW,11 kW,or 15 kW
Automation
Variable Frequency Drive
Installation Type
Under the liquid surface,hydraulically balanced
Cleaning Method
Cleaning-in-Place (CIP)
Nozzle Configuration
Two or Four Nozzles
Rotation Type
Horizontal and Vertical Axes
Product Range
IM 10,IM 15,IM 20,IM 25

Operating Characteristics


Working mechanism
Rotary jet head technology
Integrated steps
Mixing,gas and powder dispersion,tank cleaning
CIP principles
Cleaning-in-place (CIP) system
Batch vs. continuous operation
Batch
Automation level
Manual integration with a variable frequency drive
Energy efficiency
Reduced energy consumption
Changeover time
Efficient process flexibility for quick changeover

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Powder Mixing Capacity
Gas and powder dispersion
Fluid Mixing Capability
Liquid mixing
Cleaning Capability
Cleaning-in-Place (CIP)
Gas Dispersion Type
Aeration,Deaeration,Carbonation

Physical Characteristics


Tank size
100–800,000 liters
Footprint design
Hydraulically balanced
Nozzle rotation
Horizontal and vertical axes
Placement
Under liquid surface

Custom Options


Control panel type
Variable Frequency Drive
Integration possibilities
Skid Mounted Pump Units
Discharge method
Hydraulically balanced system
Customizable components
Agitators,Magnetic Coupled Mixer
