Roller compaction for dry granulation in pharmaceuticals

Ensure consistent granule size and density in your product line with high containment roller compaction, ideal for precise dry granulation and easy scaling from research to full production.

Performs High Containment Dry Granulation

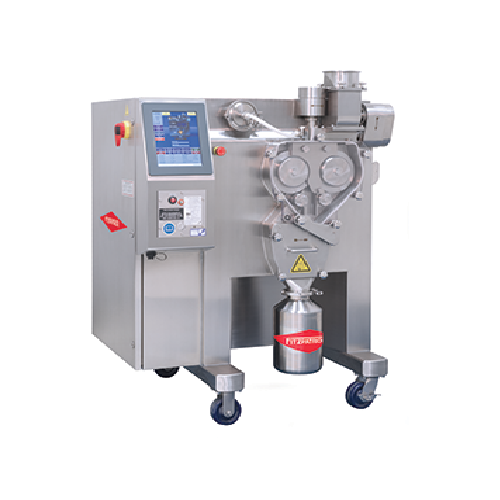

The CCS series from Fitzpatrick offers a range of roller compactors designed for precision dry granulation. Engineered for pharmaceutical and chemical manufacturing, these units provide high containment and seamless scalability from R&D to large production. The dual-screw feed system ensures optimal material conditions for efficient compaction, while the patented Product Containment System enhances safety with nitrogen inerting. The models, including the CCS220, CCS320, CCS520, CCS720, and CCS1025, boast flexible installation options such as in-wall and through-wall, optimizing space in GMP facilities. Capable of producing up to 400 kg/hr, these compactors integrate seamlessly with existing systems, with standardized HMIs for intuitive operation. Designed with minimal components, they facilitate easy maintenance and cleaning, offering optional wash-in-place capabilities. Fitzpatrick’s equipment complies with stringent industry standards, featuring ATEX-approved variants for explosive environments, and supports a variety of materials like stainless steel for enhanced corrosion resistance.

Benefits

  • Enhances product safety with high containment and nitrogen inerting, crucial for sensitive applications.
  • Offers scalability from lab to production, enabling seamless transitions as production demands grow.
  • Minimizes maintenance costs with durable design and shared components across models.
  • Supports flexible facility layouts with in-wall and through-wall installation options.
  • Reduces cleaning time and cross-contamination risk with wash-in-place capability.

General


Applications
Supplements,Pharmaceutical tablets,Fine chemicals,Pharmaceutical formulation,Nutraceutical formulation,Food processing
End products
Protein powders,Herbal extract granules,Instant soup mixes,Detergent additives,Vitamin supplements,Food seasoning mixes,Chemical catalysts,Effervescent tablets
Steps before
Material Preparation,Pre-Blending
Steps after
Tablet Pressing,Capsule Filling,Coating,Packaging
Input ingredients
powder materials,pharmaceutical powders,nutraceutical powders,food powders,chemical powders
Output ingredients
granules,compacted products,pharmaceutical granules,nutraceutical granules,food granules,chemical granules
Market info
The Fitzpatrick Company is known for its expertise in designing and manufacturing particle processing equipment, specializing in dry granulation, roll compaction, and size reduction technologies, earning a strong reputation for quality and innovation in the pharmaceutical and industrial sectors.

Technical Specifications


Roll Force
17–26 kN/cm
Roll Dimensions
2 X 20 cm to 10 X 25 cm
Roll Gap
1-6 mm
Capacity
Up to 400 kg/hr
Model-specific options
Isolator-ready,Laminar flow booth arrangement,Wash-in-place capabilities
Installation design
Freestanding or Through-wall
Product Containment System
Available
Automation
Standardized HMI screens
Scalability
Directly scalable from lab to production units

Operating Characteristics


Working mechanism
Dual-screw feed system
Integrated steps
Dry granulation and compaction
Batch vs. continuous operation
Batch / Inline Continuous
Automation level
PLC-controlled
Changeover time
Minimal due to standardized design
CIP/SIP
Wash-in-place capabilities
Cleaning method
Wash-in-place / Manual
Containment level
High containment with PCS

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Agglomeration risk
Minimized

Physical Characteristics


Roll Dimensions
2 X 20 cm,3 X 20 cm,5 X 20 cm,7.5 X 20 cm,10 X 25 cm
Roll Gap
1-6 mm
Roll Force
17-26 kN/cm
Compact Footprint
Mobile units,convertible designs
Installation Type
Free-standing,In-wall,Through-wall
Containment System
Product Containment System (PCS) with nitrogen inerting
Wash-in-Place Capabilities
Available
Machine Design
Standardized HMI screens

Custom Options


Wash-in-place Capabilities
Yes
Product Containment System (PCS)
Nitrogen inerting and security interlock
Compact,Mobile Unit
Easily movable
